Firmware 4.24 is now available as a free update for Pearl Nexus, Pearl Mini, Pearl-2, and Pearl Nano. It can be applied through Pearl's Admin Panel or your Epiphan Edge account.

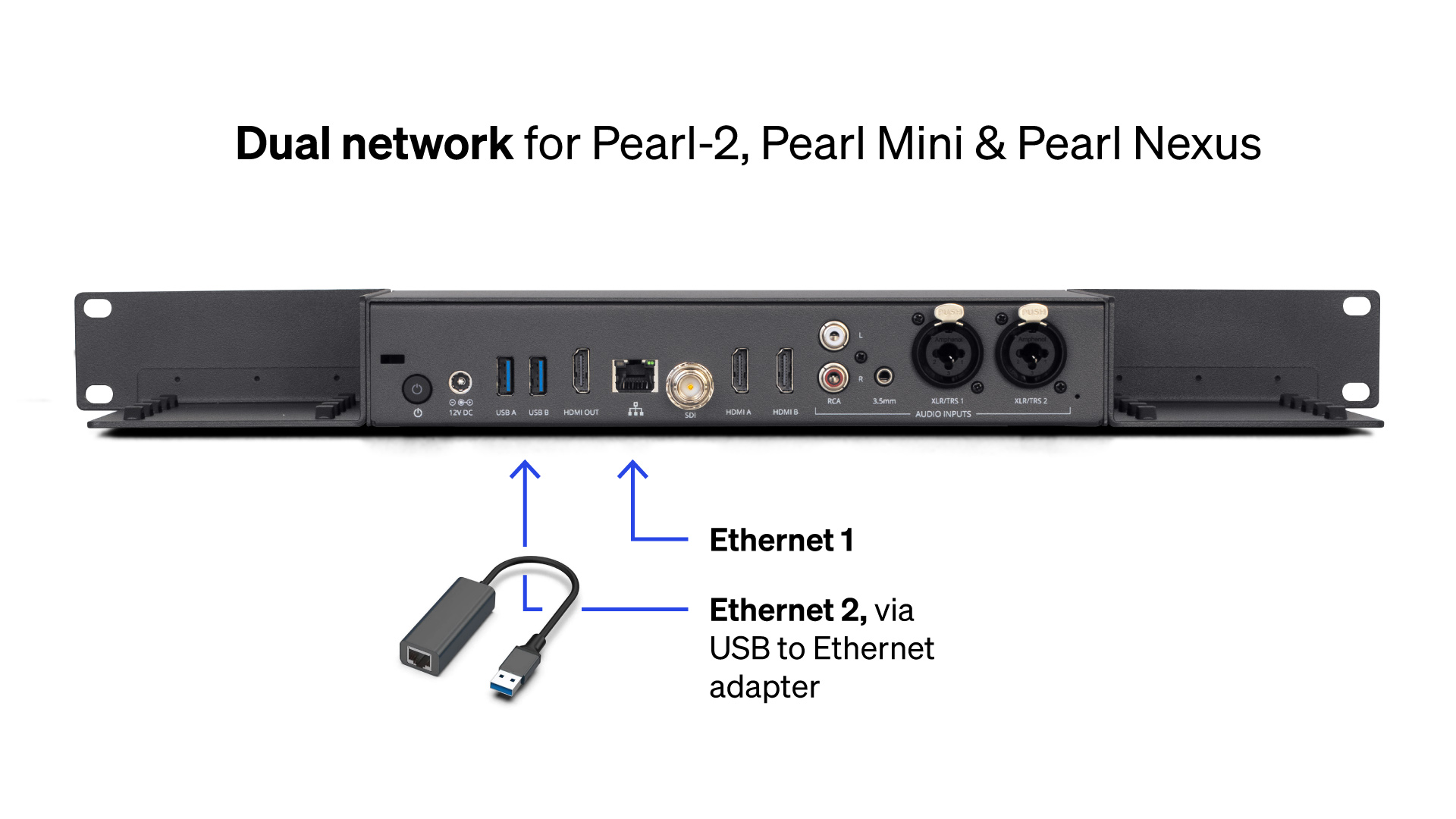

The new dual network setup on Epiphan Pearl devices allows users to split their network traffic between two separate Ethernet connections. Pearl now supports a second network connection over USB, with a USB to Ethernet adapter with the recent 4.24 firmware release.

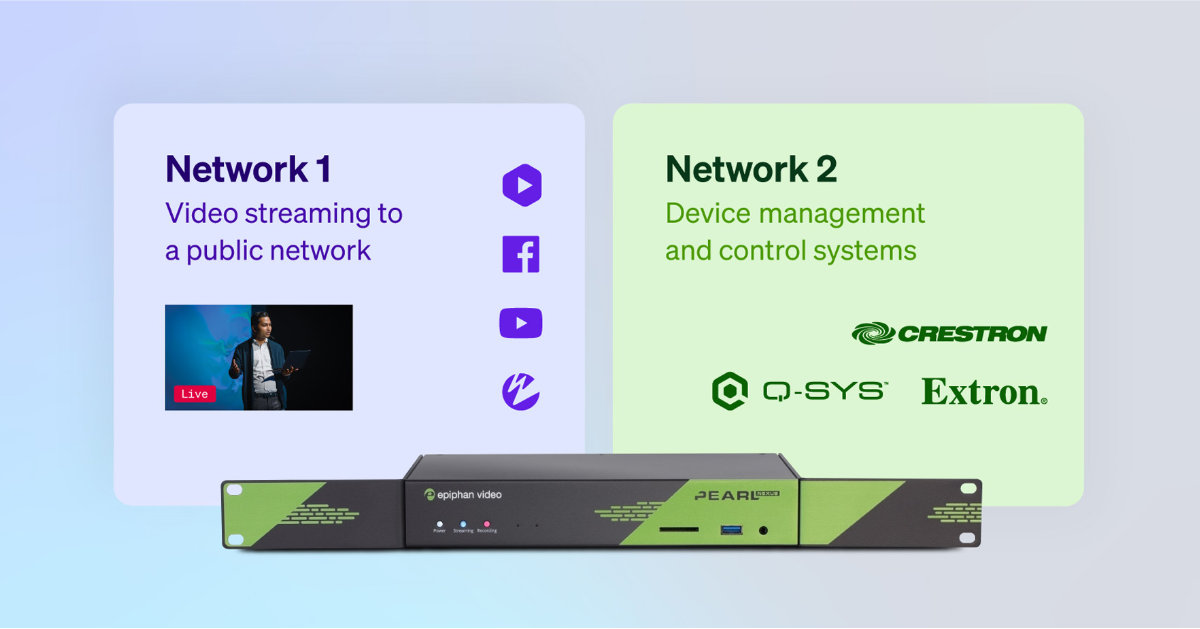

This feature enables one connection to be dedicated to video streaming while the other handles control data, such as device management, remote access, or configuration.
Enhanced network performance
By separating video streaming from control traffic, users can optimise bandwidth usage and reduce the risk of network congestion, leading to smoother video streams and more responsive control operations.
Increased security
Segregating traffic can enhance security by isolating sensitive control data from the public-facing video stream, reducing the risk of unauthorised access or cyber threats.
Other features of this release
- Automatic File Upload now integrates directly with Epiphan Edge™, allowing for the seamless upload of recorded files to the cloud. This ensures files are backed up automatically, providing users with peace of mind.
- An optional setting has been introduced that requires confirmation for scheduled Panopto and Opencast events. If this setting is activated and the event is not confirmed, it will not commence as planned.
- Resolved an issue that prevented Kuando Busylight on-air status lights from displaying the colour yellow.
- Resolved an issue that was caused by connecting a multicast RTSP stream from QSYS PTZ cameras.
- Fixed an issue with H.265 range expansion that caused Pearl Nano's colours to wash out.
- Added support for a new chipset found in USB to RS-232 adapters, which can be used to monitor and control Pearl Mini, Pearl Nexus and Pearl Nano.
FAQs
My Pearl has only one Ethernet port. Will this work?
Pearl-2, Pearl Nexus, and Pearl Mini running firmware 4.24 or later can support Ethernet connectivity through a USB to Ethernet adapter.
Does this work on all models of Pearl?
This feature will work on Pearl-2, Pearl Mini, and Pearl Nexus.
Does this work with any USB-to-Ethernet adapter?
Most USB-to-Ethernet adapters will work, but we cannot guarantee every model will work properly.
Can I use this to stream video to two network destinations?
This feature is designed to separate control from video streaming or transport. However, Pearl systems are capable of sending multiple streams over the network for redundant workflows.
