Gefen Audio/Video Multi-Format Processor

$ 1,699.01

Add to Cart

Gefen Audio/Video Multi-Format Processor

/9j/4AAQSkZJRgABAQAAAQABAAD/2wBDAAIBAQEBAQIBAQECAgICAgQDAgICAgUEBAMEBgUGBgYFBgYGBwkIBgcJBwYGCAsICQoKCgoKBggLDAsKDAkKCgr/2wBDAQICAgICAgUDAwUKBwYHCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgoKCgr/wAARCACAAIADASIAAhEBAxEB/8QAHQABAAIDAQEBAQAAAAAAAAAAAAYHBQgJAQQCA//EAEAQAAEDBAEDAwMABQoDCQAAAAECAwQABQYRBwgSIRMxQQkUIgoXI1FhFRYZJDIzUlli4kKBlkNmcXKRkrHR0v/EABkBAQEBAQEBAAAAAAAAAAAAAAABAgMEBf/EAC4RAAICAQIFAQUJAAAAAAAAAAABAhEDITEEEkFRgfAiYXGhsQUTYoKRwdHh8f/aAAwDAQACEQMRAD8A7+UpSgFKUoBSlKAUpSgFKUoBSlKAUpSgFKUoBSlKAUpSgFKUoBSlDvXigFeOLQ0guOK0lIJJ/hVLdQXPWT9KmBXXmDPISbnbvum4sK3x539h51ZS15LALbft3ElZSB4B96ofhv6s9vyGa9j3UXg8aLbZ7igxd8fC3GmWlH+y60VFS0gH+8QSf9FVJtaEbo2/Vy3x2lSUKyhja1aSOxfk/wDtqRg7G6oi9yunbG+Lf113rn63xsWcJdRfHnI5ZVvf7NH47U57p7ACvewQT7alc3/XFlWXJ4GK9KfGUR2wW+Uhtyfk6HfVuSB49JllCu5kK+FKKnD4/Aexy2kXc6WUqIcCck3/AJf4fsHJeT8e3HFJ95gCRIx+6g/cQySR2q2EnyAFDaQe1Q2AdipfVApSlAKapSgBG6UpQClY3LLtd7JY37pZLKm4PMp7vtVSC0VJHlWiEq2dew15PisLhPIV8ymS9/KeJpt0ZhrudkOyndgn28OMNgjwryD40N+4oDzkKRlllfOXxLpFj2m0w3JM1Lsh1PelKSpZUhDau8BKdgAg7371rNaPrBcaTuQTEm8c3JrEXkhMO+tSEuSCdn9qqOnx2Ea/FKysfIJ8DY3Ks5wvkrhfKrpgmUQbvEbtdzhuyrdJS62l9tpxDjfcnx3JV4I+DXDuyXidaoTUiA/+KmEKWg/khzSR7j2P/j7/AMa3CKe5G6Oon1L8/wAJ5n6CblmXF2Rxr7bkXu2Ork25Rc9FKZCe71EgdzWgfIWBr51XNvihlFyze34/LnqZhznFod1ojfpLKVAHY33BOjXQT6WWJWrH8rzW2Fz7xMy3x+5YSCytsLUOwgKUlR/PzslWj5CQQDMOfPpcdOWX5COUMPvzvHMiO8p+6vWjsRCW2QoOLDaylMZeidLQUpHyk1U1B0Sm0U9a/p04b1vdI+NRLfyHcMVyLDbtdGrTOYCJMV5by2luplRj2lZUUpHd+zdR58AEoqS9OfSJ079L/wBtf8Kx6Ze8viulTeaXx9kLQR4IjxSlbbKCfg/tNf8AaBXtafT9j+P8NYZP4o4skvrwaS3JXY7/ADITjc2ZNd/tBhIPfNHsfVQ22nQ8FWt1hr50uX27znLzIwm5xHH2Ql1iGiE4gFWvP5JUe46G/OgR5171JwcJalmuV8l6/T49n/penEnLErPlPWe7WQR58RoLkORFlxggqISdnyhStEhJ3sAkE6OpvUB4F4ne4vsCo0xLbbzjTbTcZlQKWmkbI2UpAKypSlKIGvPj+M+2N6rLdkgnGNN2KUpUNClKbH76AbA9zXncn/EP/WvlvNnYvcT7N+XKZT3BXfEkqaXsf6kkGqA6iOaOLel9D0zlHme5PKkNq+xxu3XGW7dH0b2nt1ICW/Ov2qwlOgRs0BsSSkDZIrnH+kO3bq1h8bYDivTfdslegZTeJNrvlhxpKkuTF+l6jRccQO9LekrCvIT5/I6qn+o36rfUhnN/tON8XZBdcUiKmpRj1gx9TlwvN2eCtpSpQQp2Won3bQn0/hWwN1v/ANKcHqE6hunKO914cQwMfyFctRgRI8pImfaemj05EhDKlIiyFEr7mULUkAJ3okoTuPNCpVoZbUrRrX9EpnOejnpul8I9T9yt0aRcskkXW3Ity/XZtjb7bQXHfcA13d6FLJT3IHeQVH3q2usb6bfTFyRYJ3J+PX2Bx5dC0XnbpH7E22USNgvMbCQVHX5tFKiT7LPirCj8C27ha7O5PGt1myCN4+ydyK4LjLhOfH4obcQ+D49kpWD4AO9iK88ZVijmOruXNXNMixqhPJejS2fSYZgvDyjshjcg/vBLnr/PalPivJxHG48cqi7l2pv6fK6vv1O8OGyzxOSa8sgvRTjB4Nu2V5HAVcMuvUqJFiJvUt0262xI6CVFDoeBMZtCtdpI9V0HwwkDuVd6sPvuap/nnynf4z0OIBIEu8R/t7VAAGwuPDcI9VQ+JEs+DopRrxWgzP1EeWOP7hEsvHsq23a02WWTbJGQWZKlLR6ncohCewIUvyPVKQ72nXggk7L9LPW3xx1MZTbrHmmNT7nyA4p1+FYrhLZbtrPpjvK4KCewlKe5RU6FPAJOlEGvepPHD2d+73/r1q9zgm4uoul36v8Ajxb/ABNFxXzk6+YnDiZFw/wLluaJud1jW+4ZS2IweaZeWEGYlqW8w5IjNFQWtLQQns2poL1qpYq487uOFkWWGjuWkJe9BlQQCdEkfcAq7fc61sDx5r1Nz5qN4D6sf1CTJK3Iw+2K1Nb0lAc9b3HuVFPkH4I1Uhh5k+zCdnZbYl2ZKFhDIkS2nlPk78JDSlEn+Hud+BXCUklbCUYRpbGajB9MdtEpxK3QgeotCO0KVryQNnQ38bNfuo3PzG9QIir/ACMcSxbm1AK+8mpakKBIAIQR2jyQAlSgo79gfB/dq5Kxu5zVQlOrjnu00qSO0L/+j/A6rMZqWwUkyQ0oCCNg0rRo/nKYVJiuR0SHGi42Uh1ojuRsa2NgjY+Ng1Xmfy3uNbC9L/WJktymoYKo9rZfhevIPsNFbICRvfk/x9z4qx6h/J/C+McmLbusiRJt93jM+lEu0FzTiEbJ7FJP4uI2Se1Q+TrVAV/gvWXYMjujsK8Ww28sI/rNvmL9OVHAH5LV3aSsfOxrVV91Y/TU6cOvp2L1DYHnl1w/M5ltYZi55ibiXUXOG2pXpszYjwVHmtp7lhClJS4jf4OJGwZBP+n3B5AyZnNea+RH73JtTvdYbJChpjWtlSVEoekNeVy3NeO1xZZTvw0T+VWtbM8nYAw1j/Idgat8ZlsNxbpbIx+zUlI8AoSCWTrXjyn/AMvtXCeeGKVT0Xfp+vTz4KoNxsr3pj+m10v9KlnccwHGZU3KZTQTcuQL1L9e9ySN+0jQ9Bvz/cspQ1rwUGp9k+bZPx403ZbjdIE5yR4tzym1GW7/AA+2aBLyh/iSUp/xFFfDnPMUqPjErLpV7hYVisRBVLy3JillRR+9hlwjW/hTnk78INZTi+PxxKs7eX8ZXRjIzdWkuKyRM4Svuk/BVIG/H+hPge2hXlyJcXK8S/NbWnuppy+S6p2d4TeKNT1Xb1t6tGGtfHmZ5bLF/wA4u0m1s9uwkPpM5ST8eon8IiT/AIWdr+C4a53fVj4O6jrXzS7zRwfgEjJuMrZYIsaXEsvfIFqkNlz13FNpBWkq2lSnUBe9bc1oGt8Osfnzj/pV45e5w6gLxcHsRivRoX8l2KI47LmXCQ96MeO1HR+clTrikISgKTo7KiU77YH0MdbnNfUZzLfMA5P6Z4XG9iTjaLxhdtdvSZN1RFTJ+2cE9DSfQYcUpSVpaaUv0wClSlE7HXhuGhglcVqur38dF43666jLkc4avfotl67aJdOxyo43Y5m59n221cC8M3a9m4zBGXMStr046/x7yT36SlHekqccKEAHwVKPbXRvom+mPmHSpyRA6jeRL89kl8iRn249osz6UiCh5stqUsrGpS+xRHagoSk+R36BrcSJxvimGW+4t8a4bZrM9dZX3NyNvtrLH3bpP5uOdiNKcI3+SgrydndVp1EddPTT0bYm23ytlLse5hki3YlDR9zdZmh7Nsg+U/6yQj+PxWsubJPP9yvZVWn7+2tp6b7Utr3XFQhycxNsn5mh23Hbhk0CFJiWy1QXZl5vNzhqbYgMNILjiylRSpwpSlRIGh49z7Vq7knWJytzsVN9J1gk2m2Po7XOVczgj13Gzo7t8JY0gEeylp+fKAfNWxeepbhvrR6PORldOmWNX64SsCu8ZViRpu4RpDkF1KGXY6j3tqKlBI/4SfYmte+nKXyrn3E2K4Fwlxu/cptrxa3xr1f7627DtFpdRGb723HCn1JDqflhhKlA+FKR719D7O4bBKbnxc7rwvC3+p8/j8nERjFcPG5Pv0/Y2j4Bsl25f6dZOH8s5jcL+8u7zocm7SA2zIdDMo9itNpCUkdo0ANaGjuq95s6ZObWsZjYvYOqO64lbWcjt0pGQWmzx5c9+G06VSLc4iR+KWnkDtU6CSkeQCNpNp9PL2H8X4JbOPLhn4vF4kvrkzZ6bQ9FRLlSHFOLUhoghpHcSkJKjoAbOyasXKbLIvtpXDhORW5GwWXpcX1ktn2JCdg77SQCCNbrGVweSTjtbo9WJTWOKnvSv4mKwTkfF8ucVaLE1MbVGZBCZUYo2kHt8Ek92j48VJqivG3H0nBGXITr1udZT3CM7HgrQ/pS+497i3FlXn4Gh/8AAlVYOgpSlAKwXJkjNYXH17ncbWCBdciYtb7litt0kFmNJmJbJZbdcAJQgr7QVfANZ2odyrh+VZo2xbbOmD9ohK1vfdPlKlO60gAei4NeTtXuAT4NRpPcHM5PSL9TL6iHKTszqbj3HELbap6mn1ZE0GoUAg+UwIjSymT49ngrtUNbdJ8V0Q6Ruk3jvo64s/Vhx5PuUxt+YqbcZ10kBbkmUpCELWEpAQ0khCdIQABrzskk/wAMN4p5GxW9RsgiQbTHd9QJmNNzkqJa/EEBQhgnf5HQI18HydWz5olQs1r+oVxLxr1dcWI4DynM7pZV2zKrTf2rja40aRp+3ykSUtqbddSVJJQUqHgj4PjzPumHi7h/C7ZLv+CiTOvU1CG7zebxJaenugFSkoV6SihlrZUUtthKPcgE7NSHJuMMoycKamZzHDf3BeQlFnKFbCyUhSm3kqUAk9uidHQJHxWbxewZDZnXFXjIYsxC20gIj2pMfSh7nYUrY/cPj95qgzRGxXDrre+m71w8L53csl/V/duUP5w3b+o5FjAdlP3B1xZDbMttYW5HVpQBdH4jXhw60O4tCAfcUBzE+lx9NjlDpI5htvU31W8jt2u/GxyIsPj/AB2GuazDD6AlTkyUhJ/aAeydq9tlfjtrpjISxdLU6mKlqQh9hSUha9oXsEaJG/HwdVWXNXGN4yXK2rpbbKt9p5gJU5BiNFxK0nRK1rWnW0bA0D8A+Bo2TjVoTYLBDsyUtD7aOhtXoNhCSQPJAHts7P8AzqvVkSpUQCwcS5Hb8pVfrliuOuNvuNAssznAiKlCgoLbH24K1ElRPcr315/dZtKVCilKUApSlAKUpQClKUApSlAKUpQHhIA2fiuV/wBVf9KX6begPlaR0+cDcZfrgzG0uqaylcLIkwbXZXwdGKqSlp4vyE+e9ttPa2dJUvvCkJ6iZHj9pyzH52L36KX4NxiORpjIcUjvaWkpUnuQQpOwSNgg/uNar/0En0gP8vPjH/nYP91VUR30OZ3DH6YzztzvyxjvDWDfTmxsXfJruzbreufys8ywhxxWgpxf8nHsQBsk6OgD4PtWytk+uR1/5HnY49tHQzw0ucixu3OW6/1COR2YqEOMthpxT1rQfVX6vclCQrYad2QUEVs5/QSfSA/y8uMf+n/91e/0En0gP8vLjD/p8f8A6poRKRzk6lv0uznHpd5RlcS5h0L8eXy4Q7dHlyJWH81uXGK36zIdS0XU25IDqUlPcgjae4brtZw/nbvKHE+M8kv2xMJeQY9CuS4aHfUDBkR23i2FEDuCe/W9Det6Fa2n6En0gCNH6eXGPn/u/wD7q2px3HrJiVgg4tjVsZhW62w2osCHHT2oYZbQEIbSPgJSkAD9wpoVWfZSlKhRSlKAUpSgFKUoBSlKAUpSgFKUoBSlKA//2Q==

Gefen Audio/Video Multi-Format Processor

Audio/Video Multi-Format Processor

$ 1,699.01 $ 1,699.01 1699.01 AUD

$ 1,544.55

(Tax Inc)

Brand
- Gefen
Product Type
- Power

This combination does not exist.

ADD TO CART

SKU:

ESP1205

Description

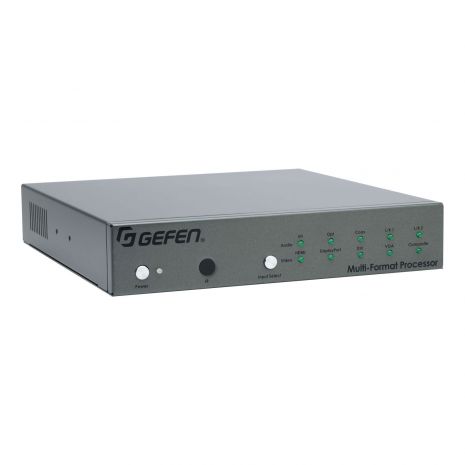

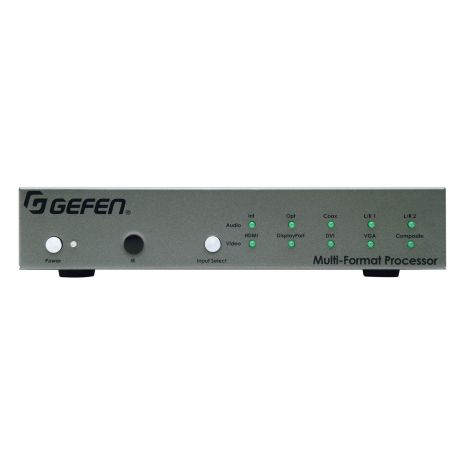

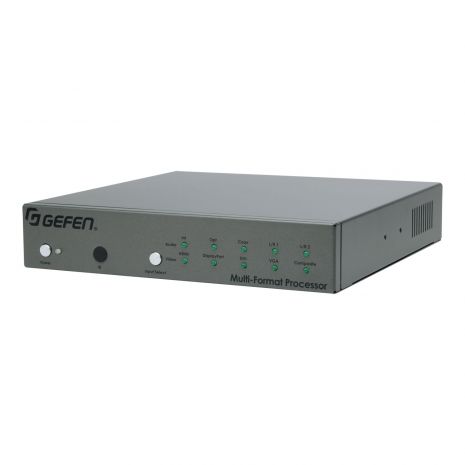

The Gefen EXT-MFP Multi-Format Audio/Video Processor is a compact and powerful presentation switcher with cutting edge format conversion and scaling abilities. It supports input and output resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), with HDCP. Its unique features include an intuitive and elegant web server interface, an easy-to-use On Screen Display (OSD), IP (Telnet and UDP) control, RS-232 control, IR control, independently password-protected user and administrator access, advanced EDID management, a wide variety of video inputs including Mac and PC compatible DisplayPort, independent and configurable audio and video routing, input selection via contact closure, assignable input naming, and a compact form factor that can be surface or rack mounted, or placed on a shelf. The EXT-MFP features full compatibility with the Gefen Syner-G software, including Discovery, Show-Me, and IP configuration. It is a complete and cost-effective solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any other high performance system that needs to interface with multiple sources, AV formats, and resolutions in a dynamic environment.

Specifications

Specifications for Gefen Audio/Video Multi-Format Processor

Brand	Gefen
Product Type	Power

Extra Info

Independent and configurable audio and video routing
Supports input and output resolutions up to 1080p Full HD & 1920 x 1200 (WUXGA)
HDCP compliant
HDMI, DisplayPort, DVI, VGA, and Composite Video inputs
DisplayPort input is compatible with Mac and PC computers
TOSLINK® optical digital, S/PDIF coaxial digital, and two analog L/R audio inputs
Each audio source can be independently assigned to any video source
Audio sources can be temporarily switched away from their assigned video sources
On-screen display (OSD) menu and web server interface allow easy set-up & control
IP control via Telnet, UDP, and web server interface
RS-232 Serial interface for use with an automation control system
Independent IR control of up to four units in proximity, using distinct command sets
Password-protected user and administrative access
Advanced EDID Management for rapid integration of sources and dispays
Assignable input naming

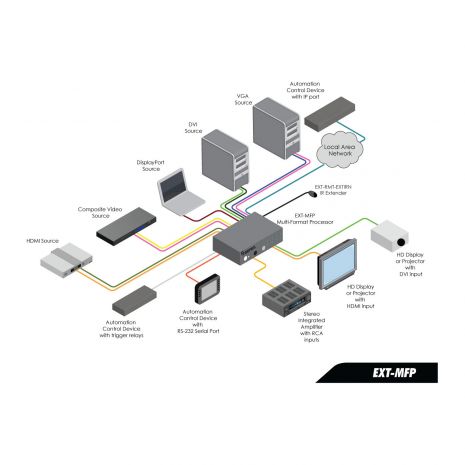

System Configuration(more…)

Extra Info

Specifications

Maximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 225 MHz

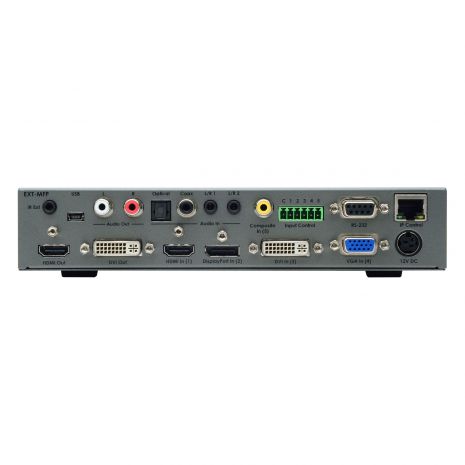

Video Input Connectors:
: (1) HDMI Type A 19-pin, female, locking
: (1) DisplayPort, 20-pin, female
: (1) DVI-I, 29-pin, female, digital only
: (1) VGA HD-15, female
: (1) Composite, RCA-type, female
Audio Input Connectors:
: (2) 3.5mm mini-stereo jack
: (1) TOSLINKÂ® optical, female
: (1) S/PDIF Coaxial, RCA-type, female
Video Output Connectors:
: (1) HDMI Type A 19-pin, female, locking
: (1) DVI-I, 29-pin, female, digital only
Audio Output Connectors: RCA x 2
USB Connector: (1) Mini-B (factory use only)
IR Sensor: (1) on front panel
IR Extender Port: (1) 3.5mm mini-stereo jack
IR Extender Type: EXT-RMT-EXTIRN
Input Selection Contact Closure Connector:
6-pin Phoenix quick-disconnect
IP Port: (1) RJ-45 jack
RS-232 Port: (1) DB-9, female
Input Select Button: (1) tact-type
Power/Stand-by Button: (1) tact-type
Power/Standby Indicator: (1) bi-color LED, blue/red
Video Input Indicators: (5) LEDs, green
Audio Input Indictaors: (5) LEDs, green
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC
Power C(more…)

Other Specifications

Shipping Info

Length14 (Inches)
Width12 (Inches)
Height4 (Inches)
Weight5.1 (Lbs)
UPC888814569049

Other Specifications

Maximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 225 MHz
Video Input Connectors:
(1) HDMI Type A 19-pin, female, locking
(1) DisplayPort, 20-pin, female
(1) DVI-I, 29-pin, female, digital only
(1) VGA HD-15, female
(1) Composite, RCA-type, female
Audio Input Connectors:
(2) 3.5mm mini-stereo jack
(1) TOSLINKÃ‚Â® optical, female
(1) S/PDIF Coaxial, RCA-type, female
Video Output Connectors:
(1) HDMI Type A 19-pin, female, locking
(1) DVI-I, 29-pin, female, digital only
Audio Output Connectors: RCA x 2
USB Connector: (1) Mini-B (factory use only)
IR Sensor: (1) on front panel
IR Extender Port: (1) 3.5mm mini-stereo jack
IR Extender Type: EXT-RMT-EXTIRN
Input Selection Contact Closure Connector:6-pin Phoenix quick-disconnect
IP Port: (1) RJ-45 jack
RS-232 Port: (1) DB-9, female
Input Select Button: (1) tact-type
Power/Stand-by Button: (1) tact-type
Power/Standby Indicator: (1) bi-color LED, blue/red
Video Input Indicators: (5) LEDs, green
Audio Input Indictaors: (5) LEDs, green
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC
Power Consumption: 8.5W maximum
Operating Temperature: +32 to +122 Ã‚Â°F (0 to +50 Ã‚Â°C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 Ã‚Â°F (-20 to +85 Ã‚Â°C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding buttons & connectors, W x H x D):8.4″ x 1.6″ x 8.5″ (213mm x 41mm x 216mm)
Net Unit Weight: 3.2 lbs (1.5 kg)

In The Box

Multi-Format Processor (EXT-MFP)(1)
6-pin Phoenix Plug (CON-PH-6P-M-GRN-AB)(1)
L- shaped Brackets for surface mounting(2)
Mounting Screws for L-shaped brackets(4)
Mounting Screws for EXT-RACK-1U-GRY(2)
Self-Adhesive Rubber Feet(4)
IR Remote Control (RMT-MFP)(1)
12V DC Power Supply (EXT-PS121.5AIP-3P-6)(1)
Quick-Start Guide (QSG-EXT-MFP)(1)

Extra Info

2 year product warranty

Please see the Gefen warranty page for more details

Extra Info

Gefen EXT-MFP Datasheet

Gefen EXT-MFP Manual

Gefen EXT-MFP Declaration of Conformity
