Aurora 3rd gen. 4K 10Gbps SDVoE AV-over-IP transmitter 2-gang wall plate (ASIC model, copper version)

This product is no longer available.

Brand: Aurora Multimedia
Days
:
Hours
:
Mins
:
Secs

Features

  • 4K60 4:4:4 Over 10G Copper
  • 1.3:1 Lossless Compression and Zero Frame Latency (100us) for 4K60 4:4:4
  • Zero Compression/Frame Latency (22us) for 4K60 4:2:0 and below
  • Secure Content Encryption
  • 128x128 Capable with HDCP, Larger for Non-Encrypted Sources
  • Seamless Switching including local inputs & Break-away Switching
  • 10/100/1000Mbps LAN PoE (PD)
  • RS-232 Serial Port
  • USB 1.1 (HID) or USB 2.0 480Mbps IP Extension
  • Dante®/AES67 IP 2Ch and 8Ch Audio (Optional)
  • Auto Sense Switching


Technical

Resolution4K60 4:4:4
CompressionZero (4K30 4:4:4/4K60 4:2:0), 1.3:1(4K60 4:4:4)
LatencyZero Frame Latency (100us without Scaling, 3ms with Scaling)
HDMI InputsTwo HDMI 2.0 with HDCP 2.2
10G Copper EthernetRJ-45 330ft(100m) with CAT 6A PoE
Video Bandwidth600MHz
Video supportUp to 4K2K 4:4:4 @60Hz
USB FunctionUSB 1.1 Standard 10Mbps or USB 2.0 480Mbps
Expansion PortsExtermeUSB® & Dante®

Mechanical

Housing2 Gang Decora White or Black
Dimensions [L x W x H]3.728” x 2.83” x 1.404” (2 Gang)
MountingWall Box or Low Voltage Electrical Rings to fit Dim Above
Power supplyPoE 10G LAN port or 48V DC
Max Power consumption12.9 Watts
Operation temperature0~40°C [32~100°F]
Storage temperature-20~60°C [-4~140°F]
Relative humidity20~90% RH [no condensation]


About

The IPX-TX3A-WP2-C provides one of the most advanced IP Streaming solutions on the market utilizing SDVoE technology. The 2-gang transmitter wallplate has zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT+ platform.  The IPX-TX3A-WP2-C has an option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches.  2 HDMI inputs allow you to switch between local sources. Seamless switching of the sources further enhances the presentation. As with all IPX devices, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required.

Note: The selected network switch needs to support:  10Gbps, Non-blocking IGMP.

USE THE FOLLOWING PART NUMBERS FOR ORDERING:

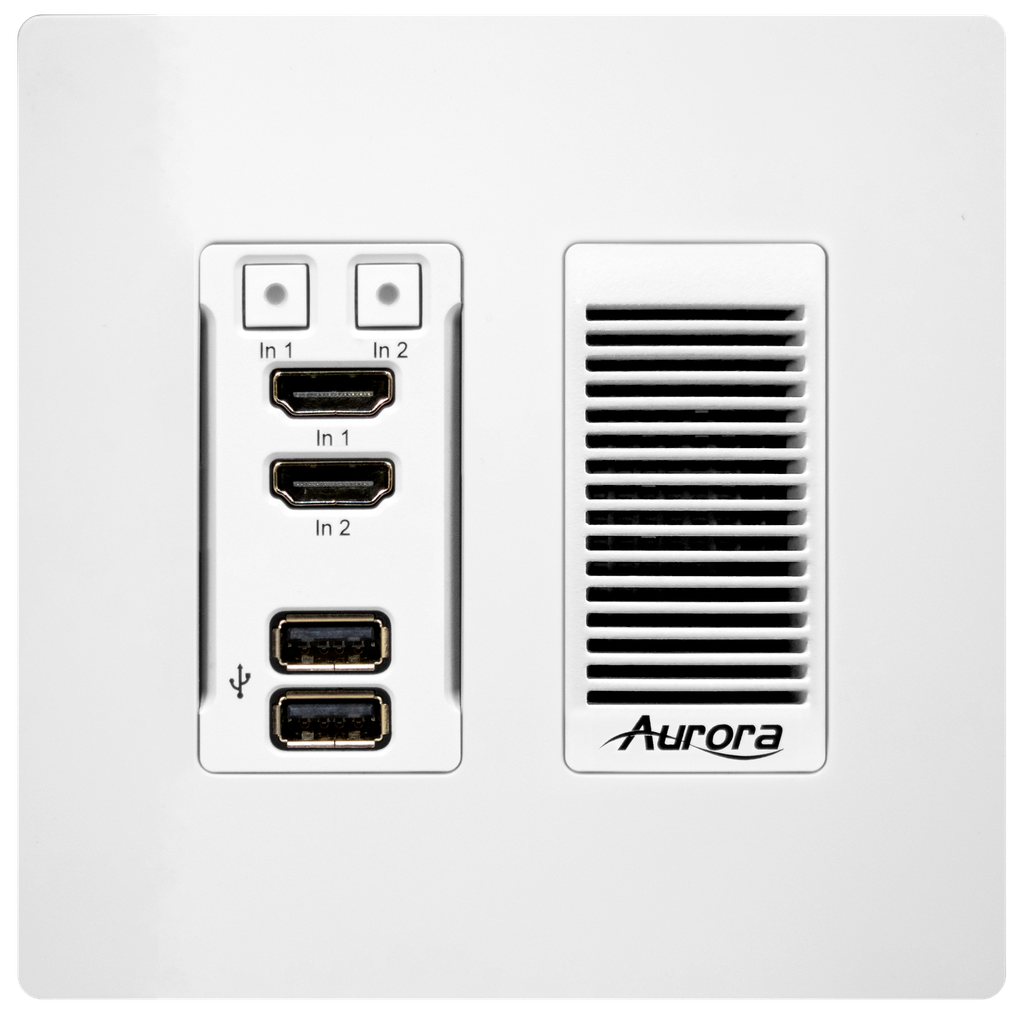

IPX-TX3A-WP2-C-W: 10G Copper version, white

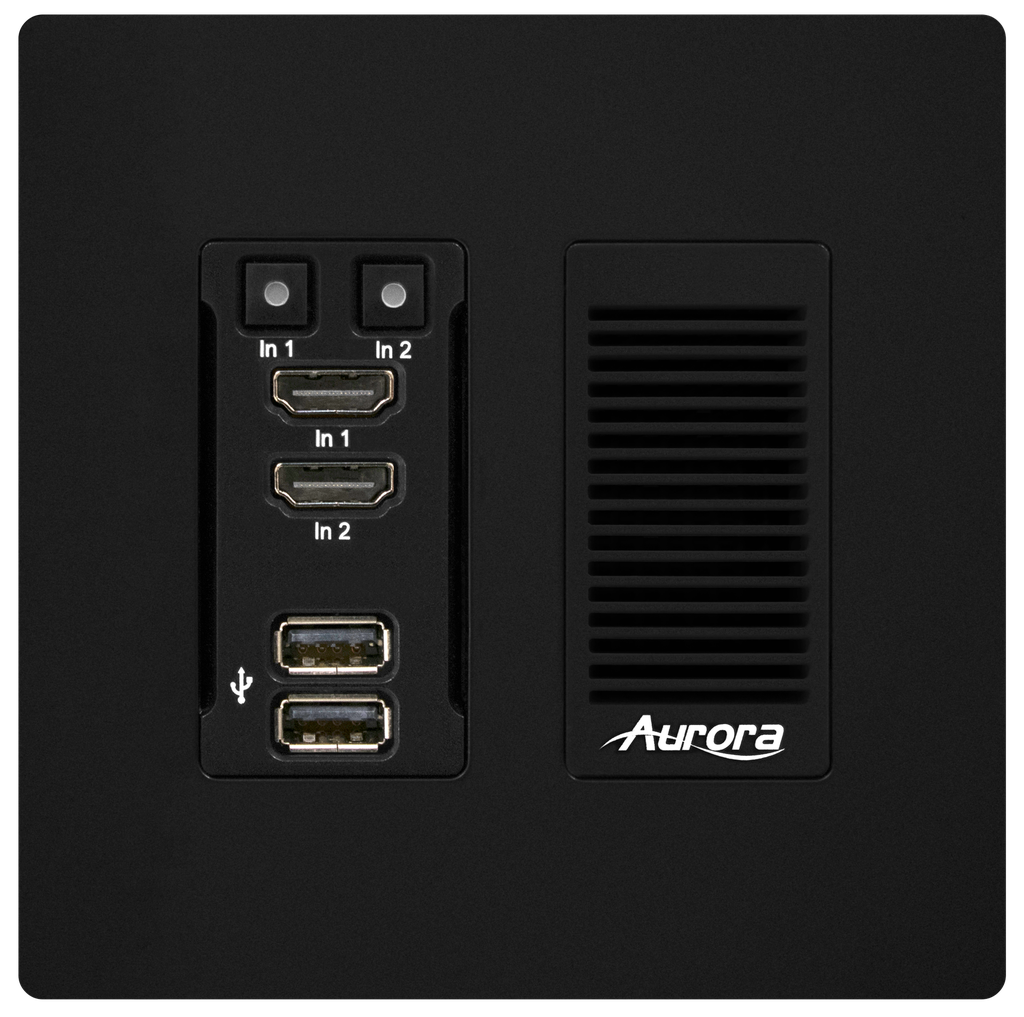

IPX-TX3A-WP2-C-B: 10G Copper version, black

Power Supply NOT included, please order separately.
