Features
- 1280x800 Resolution
- Six Core Processor
- 2G RAM and 16G Flash
- ReAX Server running on Android 10
- Audio Decoder MP3/WMA/AAC
- Video Decoder 4K MPEG-1/2/4, H.263, H.264, H.265
- USB OTG, USB 2.0, USB Serial
- 5M/P Front Camera
- WIFI 802.11b/g/n
- NFC
- SD Card Slot up to 32GB
- One 1-Watt Speakers
- PoE
System
| Default Passcode | Last 8 numeric characters of units serial number |
| CPU | Six core cortex A17 |
| RAM | 2GB |
| Internal memory | 16GB |
| Operating system | ReAX server running on Android 10.0 |
Display
| Panel | 8" LCD |
| Resolution | 1280x800 |
| Touch screen | 10-point capacitive touch |
| Viewing angle | 170° (85/85/85/85 [L/R/U/D]) |
| Contrast ratio | 800:1 |
| Luminance | 250cd/m2 |
| Aspect ratio | 16:10 |
Network
| WiFi | 802.11 b/g/n |
| Ethernet | 10M/100M/1000M |

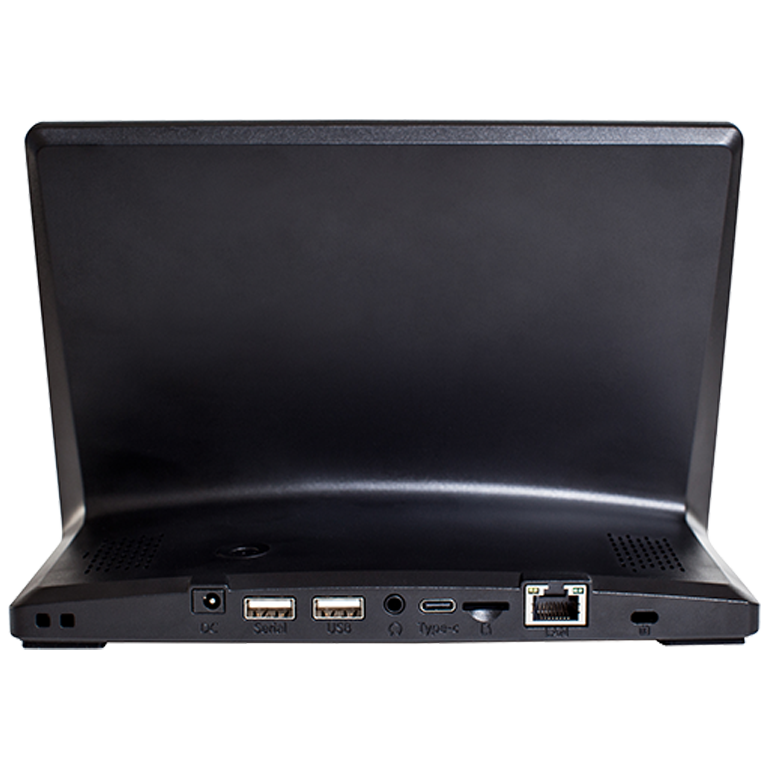

Ports
| Card slot | TF (Micro-SD) card, up to 32GB |
| RS-232 | USB for serial (RS232 format) |
| USB | USB Host 2.0 |
| USB Type-C | USB OTG Only |
| Power jack | DC power input |
| Audio out | 3.5mm TRS out |
| Ethernet | RJ-45 |
Other
| NFC | NFC 13.56MHz，ISO14443A/ISO14443B/ISO 15693/Mifare classic/Sony felica |
| Microphone | Single microphone |
| Speaker | (1) 2W speaker |
| Camera | 5.0M/P front camera |
Power
| Power | 12V/1.5A or PoE |
| Power adapter | 12V adapter included |
Physical
| Product dimensions (WxHxD) | 8.125” x .4.125” x 5.63” 206.4mm x 104.8mm x 143mm |
| Weight | 1lb (0.45kg) |
| Enclosure | Plastic enclosure, white or black |
| Operating temperature | 0~40°C [32~104°F] |
| Storage temperature | 0~60°C [32~140°F] |
| Relative humidity | 20~85% RH [no condensation] |
About

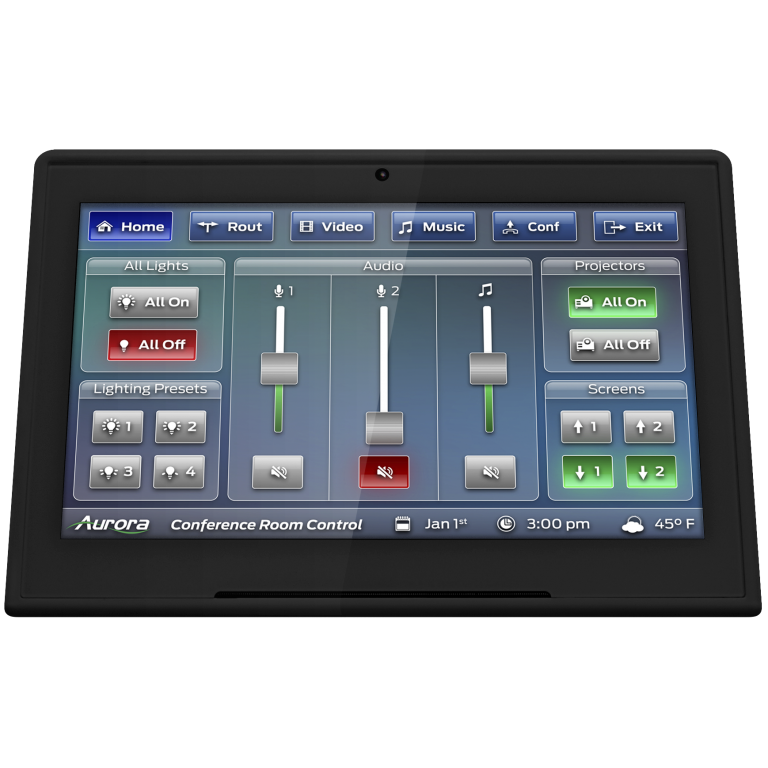

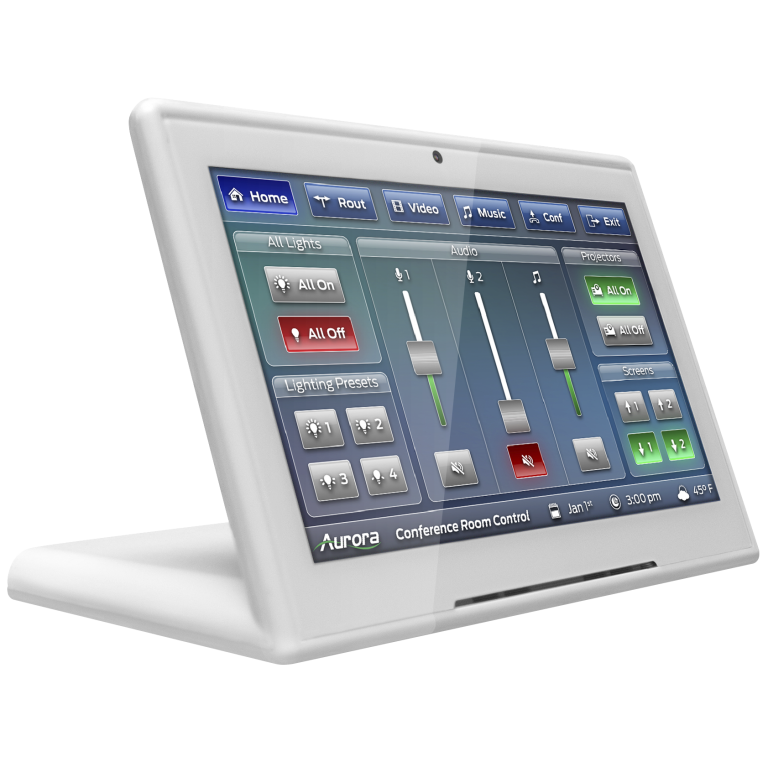

The RXT-8D is the World’s first ReAX JavaScript based Touch Panel/Control System. Ideal for conference rooms, educational facilities, digital signage and more.
Designed to sit on any flat surface, the RXT-8D has a beautiful 1280 x 800 touch screen with 170-degree viewing and room status lighting. The 2D and 3D graphics engine with H.264 streaming decoder provides a powerful solution for complex graphics and video, ensuring an enhanced user experience. To further enhance the experience the RXT-8D has a 1-watt speaker system, and digital microphone for conferencing.
The RXT-8D is a powerful ‘all in one’ solution for your presentation and automation needs. Core Studio tool is available free of charge for code and interface creation.
