Features
- 4K60 4:4:4 UHD 120m over 1G CAT 5e
- Zero Frame Latency (1.78ms)
- HDR10, HDR10+, Dolby Vision
- LPCM up to 12-channels, Dolby Digital Plus, Dolby
- TrueHD DTS HD Master Audio, Dolby ATMOS
- 12 bits color depth processing, 16bits OSD
- Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
- Seamless Switching, Video Wall and Image Rotation
- EPG & Channel Mapping
- MJPEG Preview up to 720p30
- 1 HDMI Inputs, 1 USB-C Video/Data
- USB 2.0 Type A
- Line In/Out on Rear for Add-on Audio Wall Plates
- 1G LAN PoE
- RS-232 Serial Port
- Integrated Web Server for Configuration
- Dante® 2/8 Ch Audio License Options & Dante Controller
- Low Power at 8 Watts
- 2 Gang Mounting Available in White and Black
| Technical | |
| Compression | Mimix™ 13:1 |
| Latency | 0 Frames (1.78ms) |
| Video Inputs | 1 HDMI 2.0b, 1 USB-C |
| Encryption | HDCP 2.3 & AES 256 |
| Audio Analog | Stereo Line In/Out (3.5mm TRS) |
| 1G Ethernet | RJ-45 and SFP |
| LAN | RJ-45 10/100/1000M PoE |
| Video Bandwidth | 600MHz |
| Video Support | Up to 4K2K 4:4:4 @ 60Hz |
| Audio Support | Up to 12 Channels |
| Video Stream Bandwidth | 93Mbps – 850Mbps (4K60 4:4:4) Packet Size Under 1600 |
| 1Gbps with USB and Audio | |
| USB Bandwidth | 200Mbps (Camera) |
| 170Mbps (HID/Mass Storage Devices) | |
| RS-232 | Up to 115k Baud (3.5mm TRS) |
| IR | Bi-Directional (3.5mm TRS) |
| USB Connector | 1 USB 2.0 Type A & 1 USB 2.0 Type-C |
| Options | Dante® 2Ch/8Ch |
| Interface | IR or Keyboard via OSD, Web Server |
| Mechanical | |
| Housing | Aluminum Enclosure |
| Dimensions (L x W x H) | 3.728” x 2.83” (4.331” with tabs) x 1.404” |
| Weight | 2.5lbs (1.13g) |
| Mounting | 2 Gang Decora Style |
| Power Supply | 48v DC (2 Pin Euro) or PoE (LAN) |
| Power Consumption | 6.4 Watts, up to 12.9 Watts with USB |
| Operation Temperature | 0~40o C [32~104o F] |
| Storage Temperature | -20~60o C [-4~140o F] |
| Relative Humidity | 20~90% RH [No Condensation] |
| Package Contents | VPX-TC1-WP2 |
About

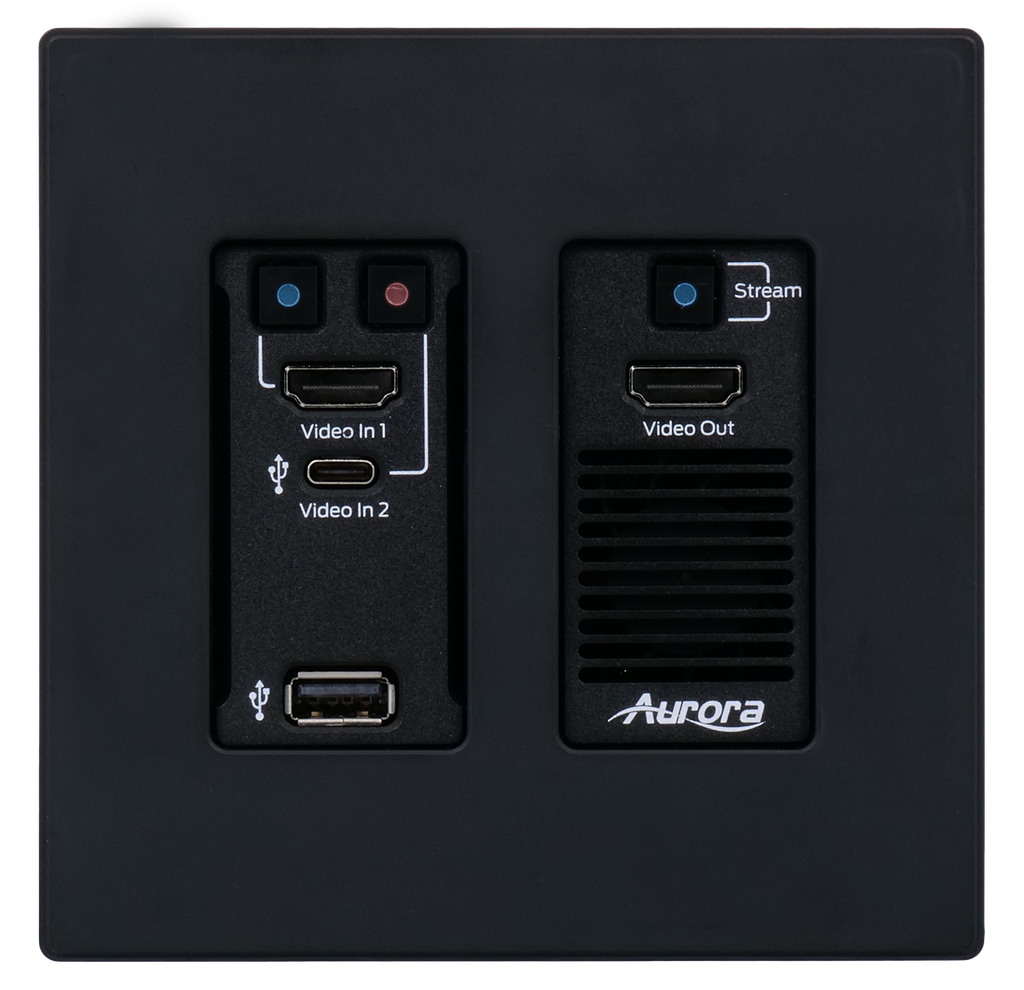

The VPX-TC1-WP2 transceiver wall plate provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora’s new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) of latency and seamless switching for fast lag free content.
Power consumption is important as the VPX-TC1-WP2 uses as little as 8 watts. It does this with in a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems. Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch. The 2 video inputs can be selected from the buttons, auto sense, or IP command. The audio can be de-embedded at any location, and/or be sent to or received from a Dante® enabled device. The USB is also flexible, working as a KVM and/or a high-speed data transfer for memory sticks & another port just for cameras. Together with the VPX-TC1 Pro box version, the possibilities are nearly limitless and scalable.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1-WP2.
