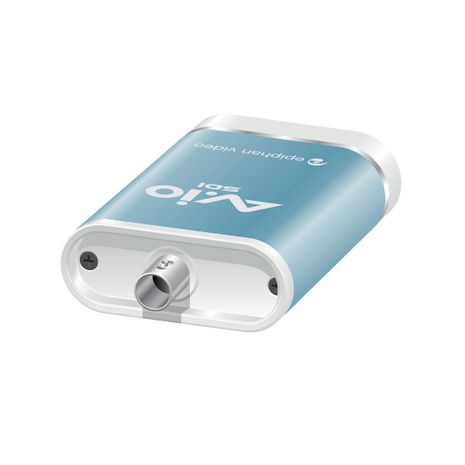

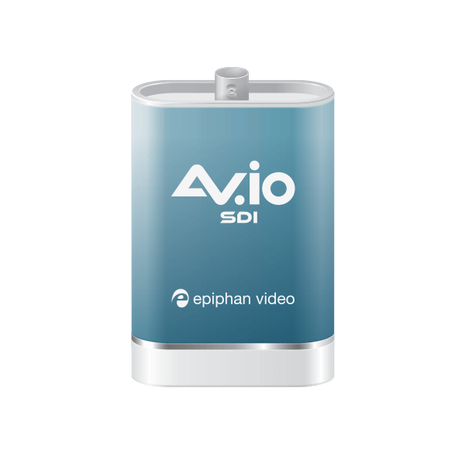

Epiphan AV.io SDI

https://www.aptech.com.au/web/image/product.template/6/image_1920?unique=a32e2e8

The plug-and-play Epiphan AV.io SDI™ capture card is as rugged as it is easy to use. Just connect your 3G-SDI, HD-SDI, or SD-SDI video source to your AV.io SDI, and your AV.io SDI to your computer via USB. Windows, Mac, and Linux operating systems will auto-detect the AV.io SDI capture card – no driver installation required.

$ 0.00 0.0 AUD $ 1,264.95

$ 1,149.95

Days
:
Hours
:
Mins
:
Secs
  • Brand
  • Product Type

This combination does not exist.

Contact Us
SKU: ESP0964
Brand: Epiphan


Epiphan AV.io to SDI


Portable and reliable SDI capture card

The plug-and-play Epiphan AV.io SDI™ capture card is as rugged as it is easy to use. Just connect your 3G-SDI, HD-SDI, or SD-SDI video source to your AV.io SDI, and your AV.io SDI to your computer via USB. Windows, Mac, and Linux operating systems will auto-detect the AV.io SDI capture card – no driver installation required.

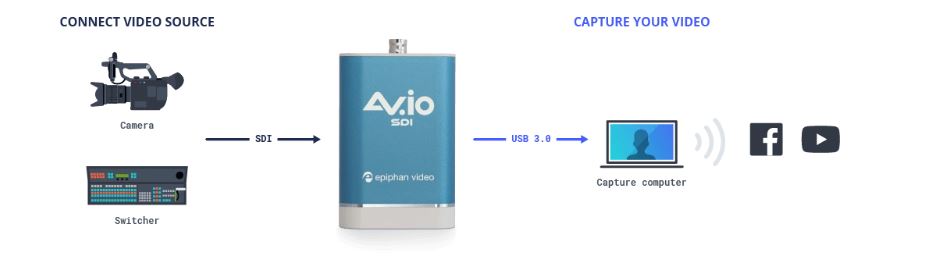

THE SIMPLEST WAY TO CAPTURE VIDEO FROM YOUR SDI CAMERA


Portable and reliable SDI capture accessory

Bring it with you to capture 3G-SDI, HD-SDI or SD-SDI video and share using any computer with a USB port.


Full HD video grabber at 60 fps


AV.io SDI supports resolutions up to 1080p and transfers uncompressed video to your computer at 60 fps with near-zero latency, letting you capture even the tiniest details with perfect clarity.



Crystal-clear audio

AV.io SDI captures audio at high quality with automatic audio resampling. For surround sound or multi-lingual audio, you can select which audio pair to capture.





No driver installation required


AV.io SDI is the easiest SDI capture card you’ll ever use. It doesn’t need any special drivers installed on your computer – plug it in to your USB port and start using it right away. It’s as simple as using a webcam! Windows, Mac and Linux operating systems automatically detect AV.io SDI ensuring compatibility with your favorite software.

Application support

AV.io SDI will work seamlessly with your favorite third-party applications like Zoom, Wirecast, OBS, VLC media player, and QuickTime.

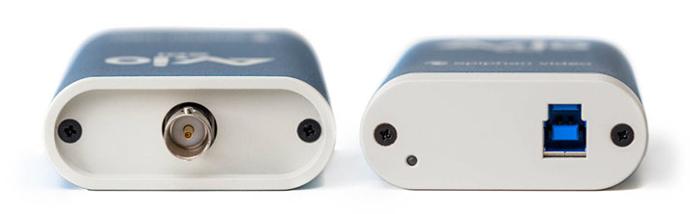

Built to Last

With its rugged metal exterior, the AV.io SDI capture card will stand up to repeated, long-term use. The same enclosure has even been used in space!



InterfaceUSB 3.0, USB 2.0.
OS driversUVC and UAC device
Dimensions3.54″ × 2.36″ × 0.91″, 90 mm × 60 mm × 23 mm

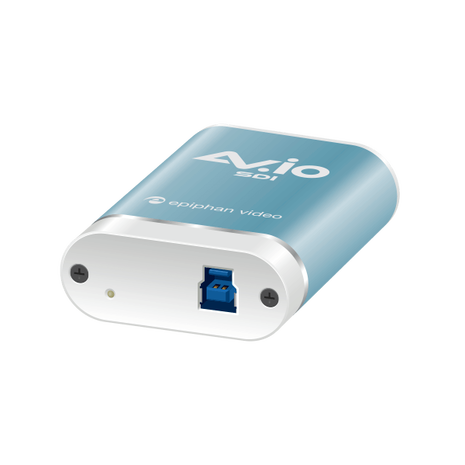

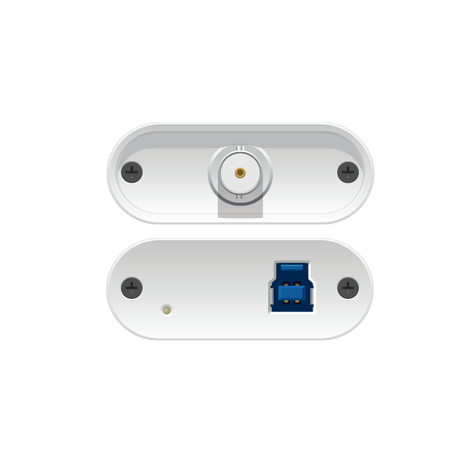

ConnectorsSDI (BNC-style), USB 3.0 B-Type connector
Input3G-SDI, HD-SDI, SD-SDI (including embedded audio for 3G-SDI and HD-SDI*)
Input resolutionUp to 1920×1080
Output frame rate



Note that the third party software you’re using sets the frame size and bitrate.

Output ResolutionAvailable frame rates
640×36015, 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 fps
640×48015, 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 fps
960×54015, 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1280×72015, 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1920×108015, 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 fps
Output color spaceYUV 4:2:2
Capture latencyNear-zero. However, third-party applications may contribute to capture delay.
Audio (input)16-bit and 24-bit PCM encoded audio 48 kHz (audio capture supported from 3G-SDI and HD-SDI*)
Audio output16-bit 48 kHz stereo audio
LEDOne LED to indicate the status of the AV.io SDI (power, readiness, and operation in progress)
OS SupportWindows 7, Windows 8.1, Windows 10, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher supported.
Country of OriginMade in North America (Canada)

*Audio capture not supported for SD-SDI




Epiphan VGADVI Broadcaster

Download Brochure


Epiphan VGADVI BroadcasterDOWNLOAD USERGUIDE

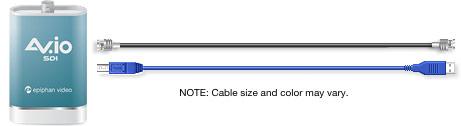

  • AV.io SDI USB video grabber
  • SDI cable
  • USB 3.0 cable

Specifications

Brand Epiphan
Product Type Capture Card
