The easiest way to capture 4K video

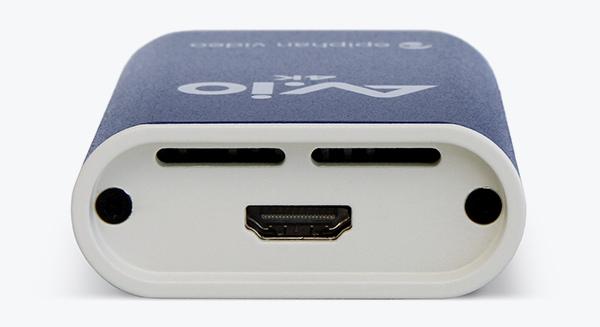

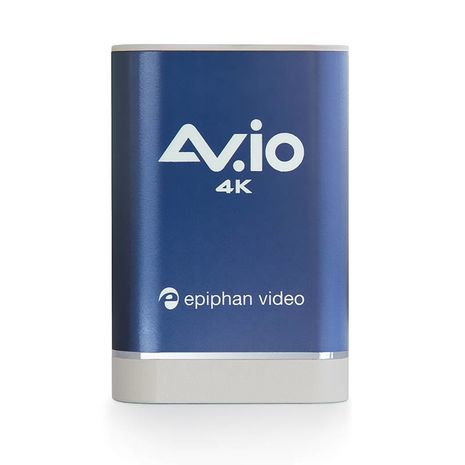

The plug-and-play Epiphan AV.io 4K™ capture card is as rugged as it is
easy to use. Just connect your HDMI video source to your AV.io 4K, and
your AV.io 4K to your computer via USB. Windows, Mac, and Linux
operating systems will auto-detect the AV.io 4K capture card – no driver
installation required.
Wide range of resolutions
AV.io 4K captures resolutions up to 4096×2160, with 4K UHD video
streaming at 30 fps and 1080p at 60 fps. Use your video at its original
resolution or let AV.io 4K scale it to exactly what you need.

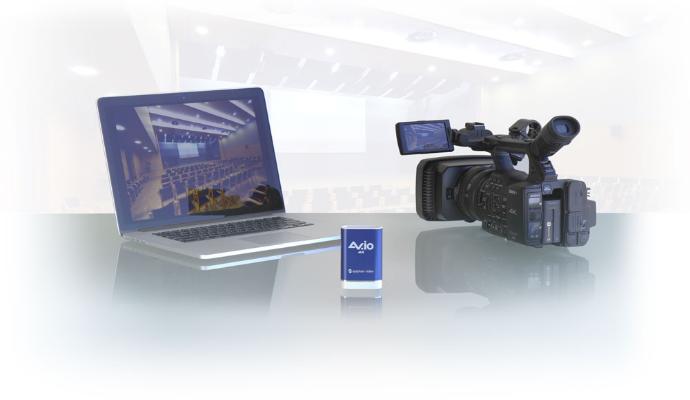

4K streaming anywhere, anytime
This compact frame grabber will fit in any kit, or even in your pocket. AV.io 4K is a USB video grabber, so its HDMI capture will work perfectly up to 4K on any computer with USB 3.0.
Ultra low latency
AV.io 4K captures HDMI video and audio as it happens. With just one to
two frames of latency, you likely won’t notice any lag at all.
Crystal-clear audio
AV.io 4K captures PCM audio over HDMI at up to 24-bit 96 kHz. The
two-channel stereo audio output has automatic resampling at 48 kHz and
encodes in 16-bit.
Broad application support
AV.io 4K works seamlessly with your favorite paid or free applications
such as Zoom, Wirecast, OBS, VLC media player, QuickTime, and Windows
Camera. Save captured content and easily upload it to video platforms
like YouTube and Vimeo.
Tough as nails
With its rugged metal exterior, the AV.io 4K capture card will stand up
to repeated, long-term use. Drop it down a flight of stairs, step on it –
it’ll still work. The same enclosure has even been used in space!
What’s in the box?
AV.io 4K comes with everything you need to capture 4K video.
| Operating system support: | Windows 8.1, Windows 10, Mac OS X 10.10 and up, Linux distribution with kernel 3.5.0 or higher supported |
| Drivers: | Native UVC and UAC device auto-detected by OS |
| Processor requirements: | Your capture computer processor equal or superior in performance to i7 6770HQ for good 4K results |
| Input connector: | HDMI |
| Input resolution: | Standard and non-standard resolutions from 640×360 up to 4096×2160 (4K DCI) |
| Output connector: | USB 3.0 B-Type connector with USB 2.0 backward compatibility |
| Output scaling: | Choose from: no scaling (1:1), preserve aspect ratio scaling or aspect ratio conversion scaling |
| Declared output formats (USB 3.0): |
|
| USB host controllers: | For best results when capturing in 4K, use a computer with an Intel USB host controller (the most common type). Other USB host controllers such as ASM, AMD, VIA, Renesas, Eltron, Fresco, and TI, will capture at 96% to 79% of expected frame rates. |
| HDMI audio input: | Up to 96 kHz sampling rates |
| Audio output: | 16-bit 48 kHz stereo sampling rates |
| Capture latency: | Near-zero, though third-party applications can contribute to capture delay |
| HDCP: | High-bandwidth digital content protection (HDCP); protected content cannot be captured |
| LED: | LED indicates capture card status |
| Dimensions: | 3.54″ × 2.36″ × 0.91″ (90 mm × 60 mm × 23 mm) |
| Country of origin: | Made in Malaysia |
