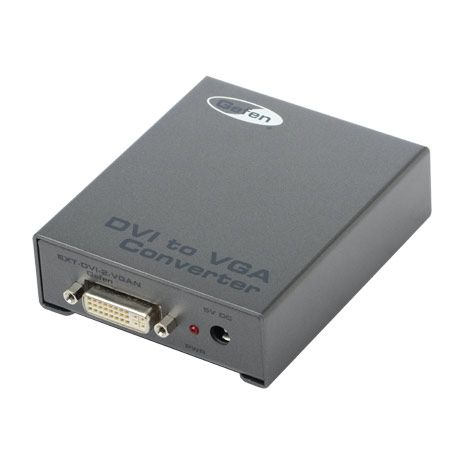

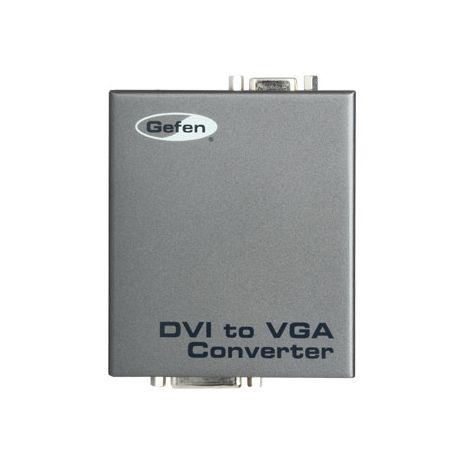

Gefen DVI to VGA Converter

• Enables DVI source to be displayed on VGA monitor or projector
• Supports resolutions up to 1920 x 1200
• EDID Management for rapid integration of source and display
• Built-in EDID switch allows choice between local EDID and external EDID


Specifications

Maximum Pixel Clock: 165MHz (DVI)

Analog Video Bandwidth: 350MHz (VGA)

Input Video Signal: 1.2V p-p

Input DDC Signal: 5V p-p (TTL)

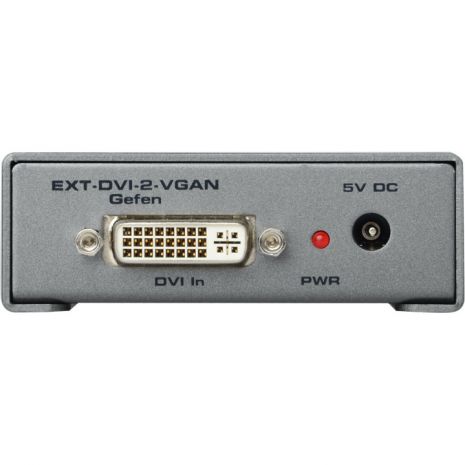

Video Input Connector: (1) DVI-I 29-pin, female digital only

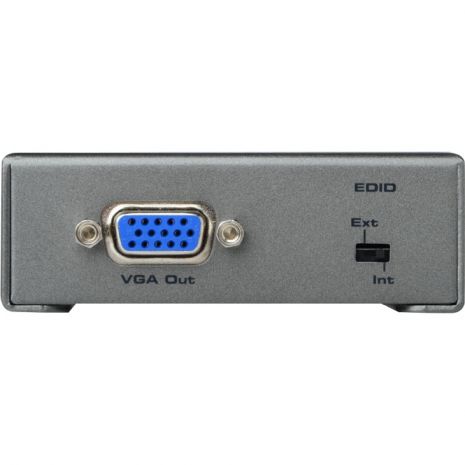

Video Output Connector: (1) VGA HD-15, female

Power Supply: 5V DC

Power Consumption: 5W (max.)

Dimensions: 3" W x 3.8" D x 1" H

Shipping Weight: 2 lbs.

Other Specifications

Shipping Info

• Length12 (Inches)
• Width6 (Inches)
• Height4.25 (Inches)
• Weight2.1 (Lbs)
• UPC845344042268

Other Specifications

• Maximum Pixel Clock: 165MHz (DVI)
• Analog Video Bandwidth: 350MHz (VGA)
• Input Video Signal: 1.2V p-p
• Input DDC Signal: 5V p-p (TTL)
• Video Input Connector: (1) DVI-I 29-pin, female digital only
• Video Output Connector: (1) VGA HD-15, female
• Power Supply: 5V DC
• Power Consumption: 5W (max.)
• Dimensions: 3" W x 3.8" D x 1" H
• Shipping Weight: 2 lbs.

In The Box

• Gefen DVI to VGA Converter- (EXT-DVI-2-VGAN)(1)
• 5V DC Power Supply – (EXT-PS51AIP-O)(1)
• 6 ft. DVI cable (M-M) -(CAB-DVIC-DLN-06MM)(1)
• User Manual – (MA-DVI-2-VGAN)(1)

2 year product warranty

Please see the Gefen warranty page for more details
