Specifications
Maximum Pixel Clock: 165 MHz

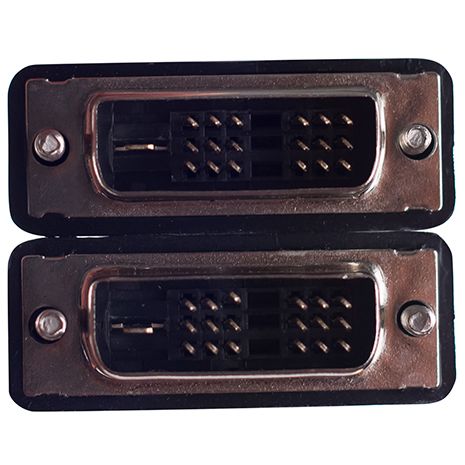

Video Input Connector (Sender): (1) DVI-D, 19-pin, male
Video Output Connector (Receiver): (1) DVI-D, 19-pin, male

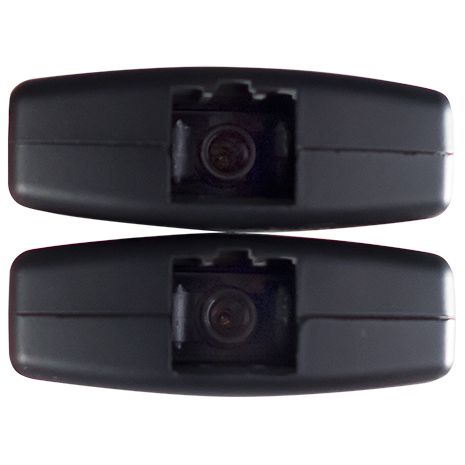

Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125?m)
Power Supply (Sender): 5V DC (not needed for most applications)
Power Supply (Receiver): 5V DC
Power Consumption (Receiver): 1.5W (max.)
Operating Temperature: +32 to 122 °F (0 to +50 °C)
Storage Temperature: -4 to 158 °F (-20 to +70 °C)
Relative Humidity: 10% to 80%
Dimensions (W x H x D): 1.54" x 0.63" x 11.49" (39.11mm x 16mm x 291.84mm)
Shipping Weight: 1 lb. (0.45 kg)
Other Specifications
Shipping Info
- Length14 (Inches)
- Width7 (Inches)
- Height3 (Inches)
- Weight1.3 (Lbs)
- UPC845344090375
Other Specifications
- Maximum Pixel Clock: 165 MHz
- Video Input Connector (Sender): (1) DVI-D, 19-pin, male
- Video Output Connector (Receiver): (1) DVI-D, 19-pin, male
- Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125°m)
- Power Supply (Sender): 5V DC (not needed for most applications)
- Power Supply (Receiver): 5V DC
- Power Consumption (Receiver): 1.5W (max.)
- Operating Temperature: +32 to 122 °F (0 to +50 °C)
- Storage Temperature: -4 to 158 °F (-20 to +70 °C)
- Relative Humidity: 10% to 80%
- Dimensions (W x H x D): 1.54" x 0.63" x 11.49" (39.11mm x 16mm x 291.84mm)
- Shipping Weight: 1 lb. (0.45 kg)
In The Box

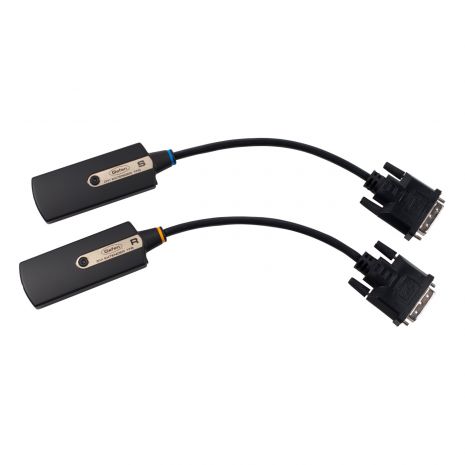

- DVI Fiber Optic Modular Extender with HDCP (Sender Pigtail) (EXT-DVI-CP-FM10S)(1)
- DVI Fiber Optic Modular Extender with HDCP (Receiver Pigtail) (EXT-DVI-CP-FM10R)(1)
- 5V DC Power Supply (EXT-PS52AIP-1.3 or EXT-PS52AIP-1.3-6 or EXT-PS52AIP-1.3-6-AL)(1)
- Quick-Start Guide (QSG-DVI-CP-FM10)(1)
