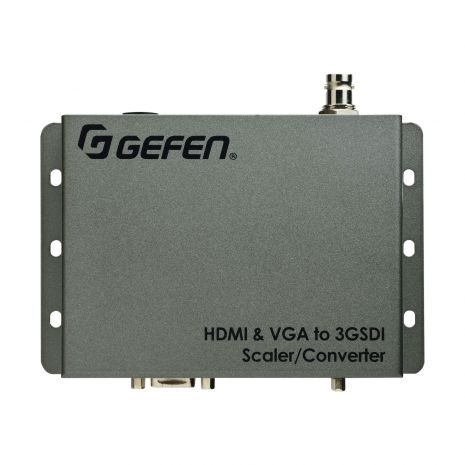

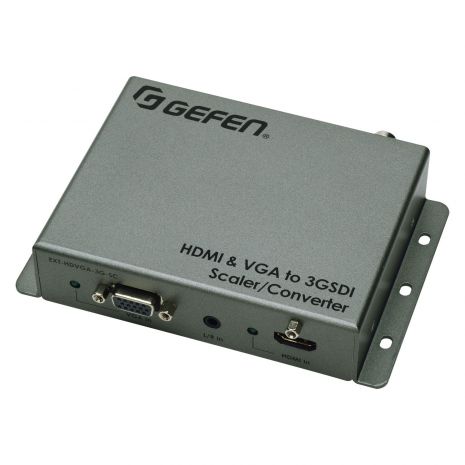

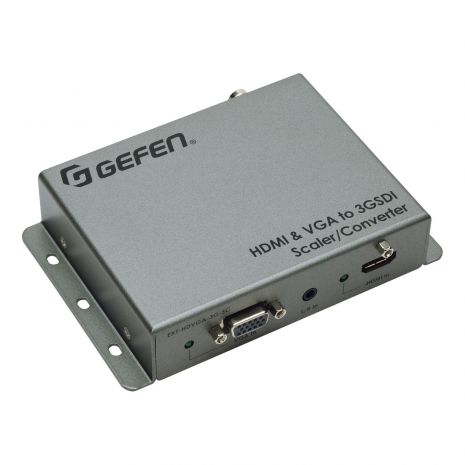

Gefen HD & VGA to 3GSDI Scaler / Converter

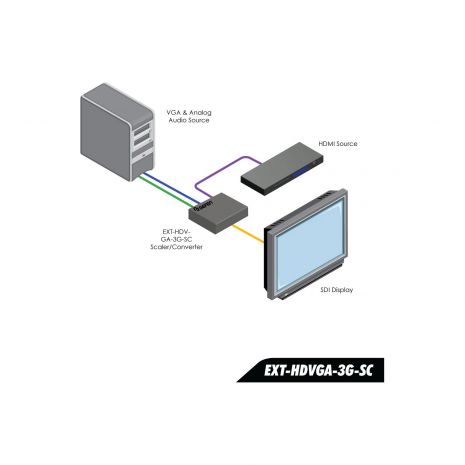

• Converts and scales HDMI and VGA and L/R analog audio to SDI

• Input resolutions up to 1920 x 1200 (WUXGA) and 1080p60

• Output resolutions up to 1080p60

• On-screen display (OSD) menu allows easy set-up and control

• Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop

• Test Pattern Generator for quick system configuration

• Embeds 2-channel analog stereo audio in SDI signal (VGA Input only)

• Up to LPCM 7.1 audio support (HDMI input only)

• Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings

• USB port for use with Gefen Syner-G

• Wide power supply operating range (6V to 24V DC)

• Locking power supply connector

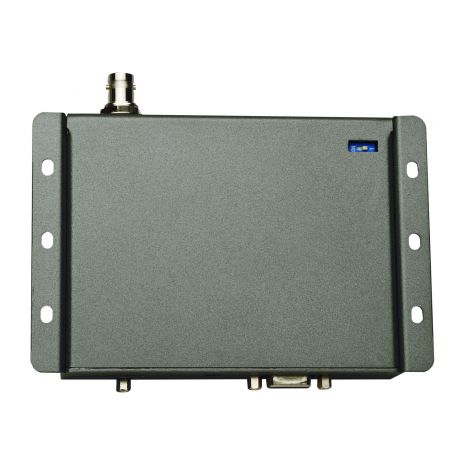

• Surface mountable

Specifications

Maximum Pixel Clock – HDMI and VGA Inputs: 165 MHz
Maximum Pixel Clock – SDI Output: 150 MHz
Maximum TMDS Clock: 225 MHz

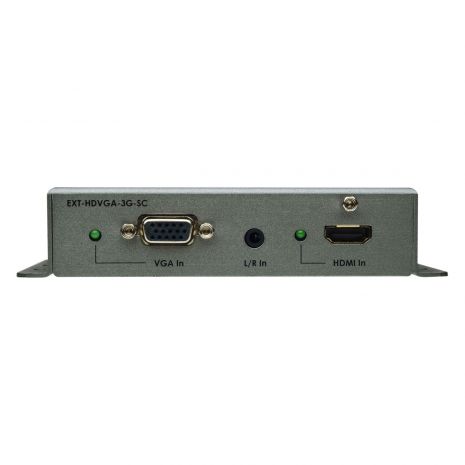

Video Input Connectors:
(1) HDMI Type A 19-pin, female, locking
(1) VGA HD-15, female
Audio Input Connector: (1) 3.5mm mini-stereo jack

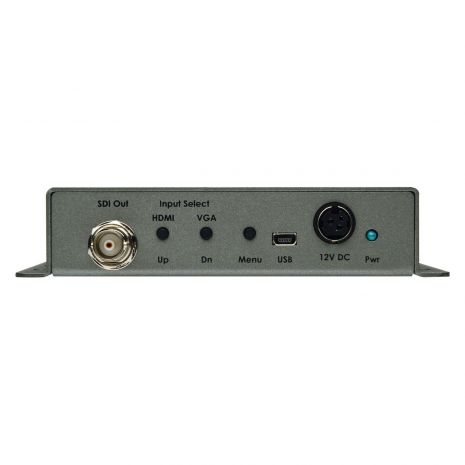

Video Output Connector: (1) SDI, BNC-type, female
USB Connector: (1) Mini-B
Input Select/Menu/Navigation Switches: (3) tact-type
HDMI Indicator: (1) LED, green
VGA Indicator: (1) LED, green
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
Power Consumption: 5W maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 5.6" x 1.2" x 3.7" (141mm x 30mm x 93mm)
Net Unit Weight: 0.5 lbs. (0.23kg)

Other Specifications

Shipping Info

• Length0 (Inches)
• Width0 (Inches)
• Height0 (Inches)
• Weight0 (Lbs)
• UPC888814180831

Other Specifications

• Maximum Pixel Clock – HDMI and VGA Inputs: 165 MHz
• Maximum Pixel Clock – SDI Output: 150 MHz
• Maximum TMDS Clock: 225 MHz
• Video Input Connectors:
• (1) HDMI Type A 19-pin, female, locking
• (1) VGA HD-15, female
• Audio Input Connector: (1) 3.5mm mini-stereo jack
• Video Output Connector: (1) SDI, BNC-type, female
• USB Connector: (1) Mini-B
• Input Select/Menu/Navigation Switches: (3) tact-type
• HDMI Indicator: (1) LED, green
• VGA Indicator: (1) LED, green
• Power Indicator: (1) LED, blue
• Power Supply Connector: (1) 3-pin, locking
• Power Supply: 12V DC nominal (6V to 24V DC operating range)
• Power Consumption: 5W maximum
• Operating Temperature: +32 to +122 °F (0 to +50 °C)
• Operating Humidity: 5% to 90% RH, non-condensing
• Storage Temperature: -4 to +185 °F (-20 to +85 °C)
• Storage Humidity: 0% to 95% RH, non-condensing
• MTBF: 50000 hours
• Dimensions (excluding connectors, W x H x D): 5.6" x 1.2" x 3.7" (141mm x 30mm x 93mm)
• Net Unit Weight: 0.5 lbs. (0.23kg)

In The Box

• HDMI & VGA to 3GSDI Scaler/Converter (EXT-HDVGA-3G-SC)(1)
• 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)(1)
• 6 ft. VGA Cable (M-M) (CAB-VGA-06MM-O)(1)
• 6 ft. 3.5mm Mini Stereo Audio Cable (M-M) (CAB-MP-ST-06MM-BC)(1)
• 12V DC Power Supply (EXT-PS121.5AIP-3P-6)(1)
• Quick-Start Guide (QSG-EXT-HDVGA-3G-SC)(1)

3 year product warranty

If the product was purchased before March 29, 2017, the warranty duration is 2 years.

Please see the Gefen warranty page for more details
