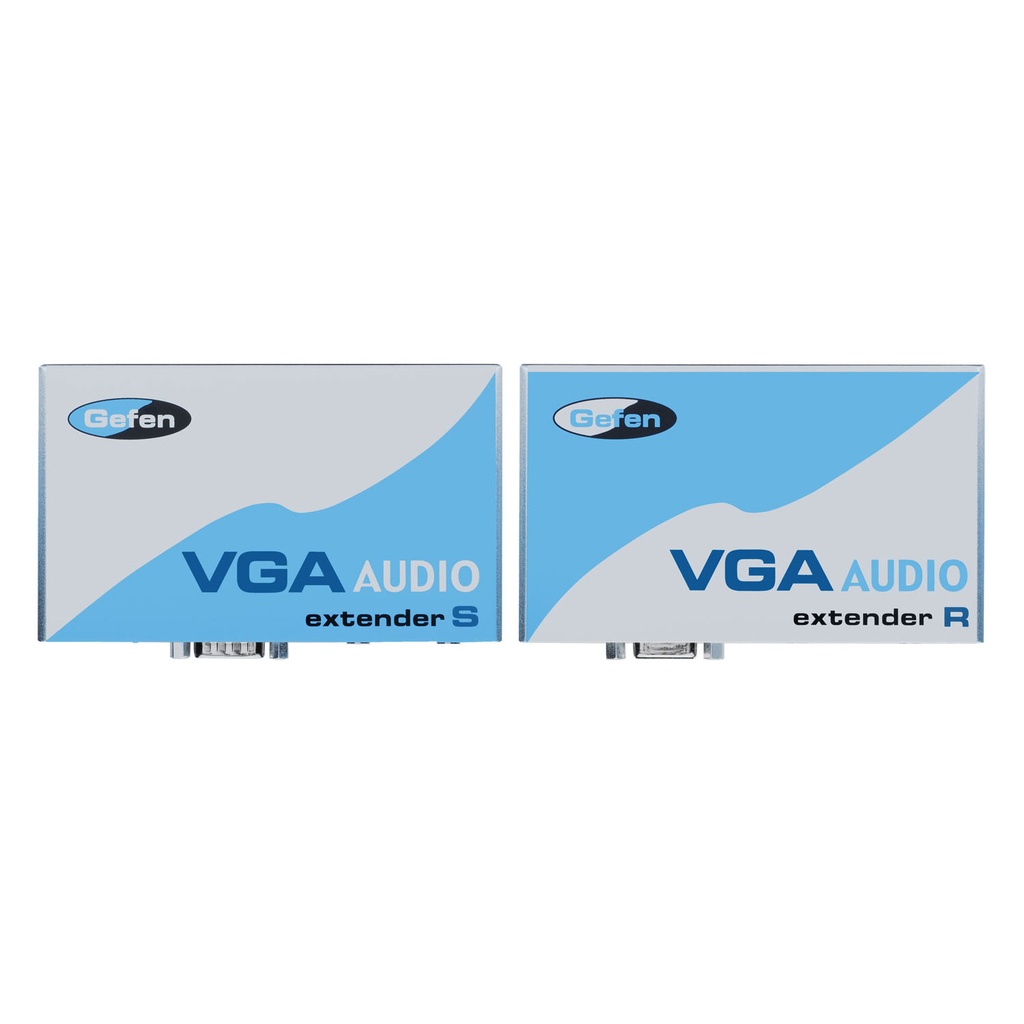

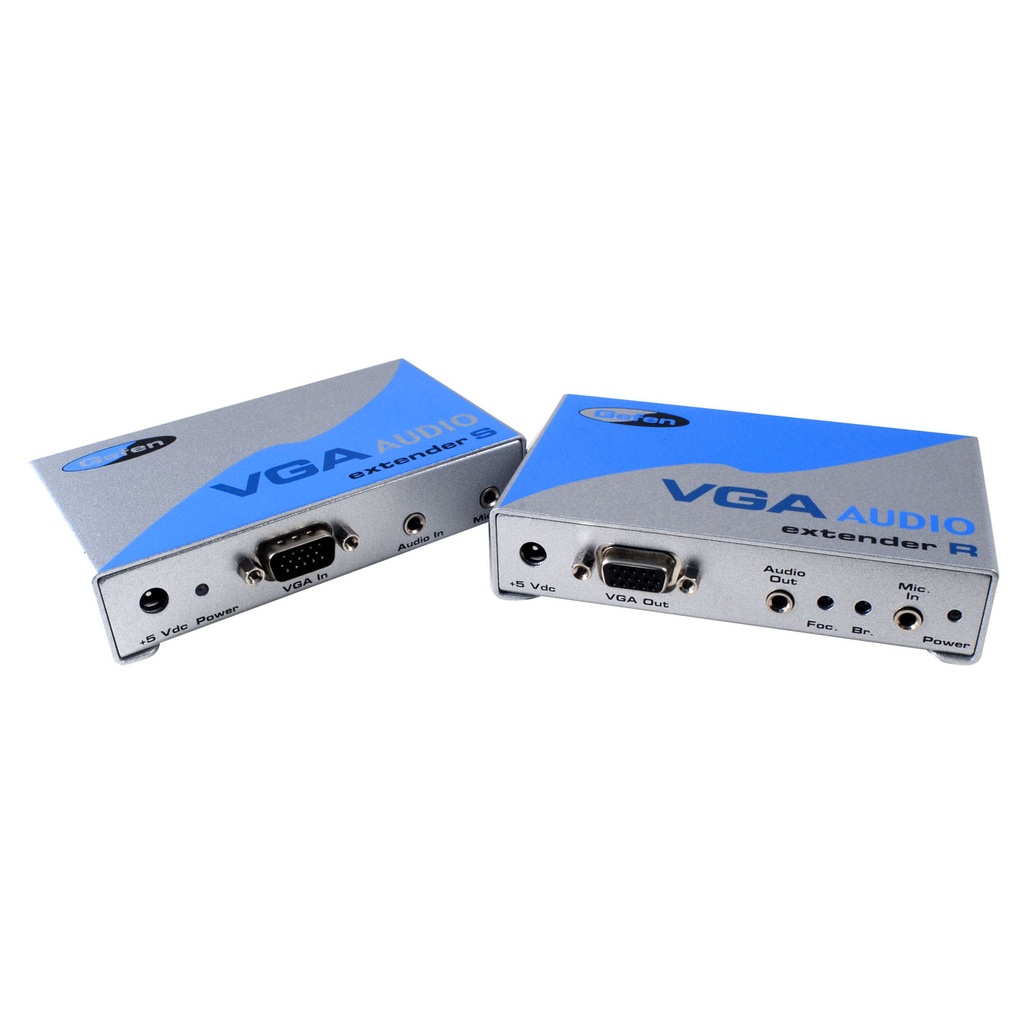

Gefen VGA Audio Extender

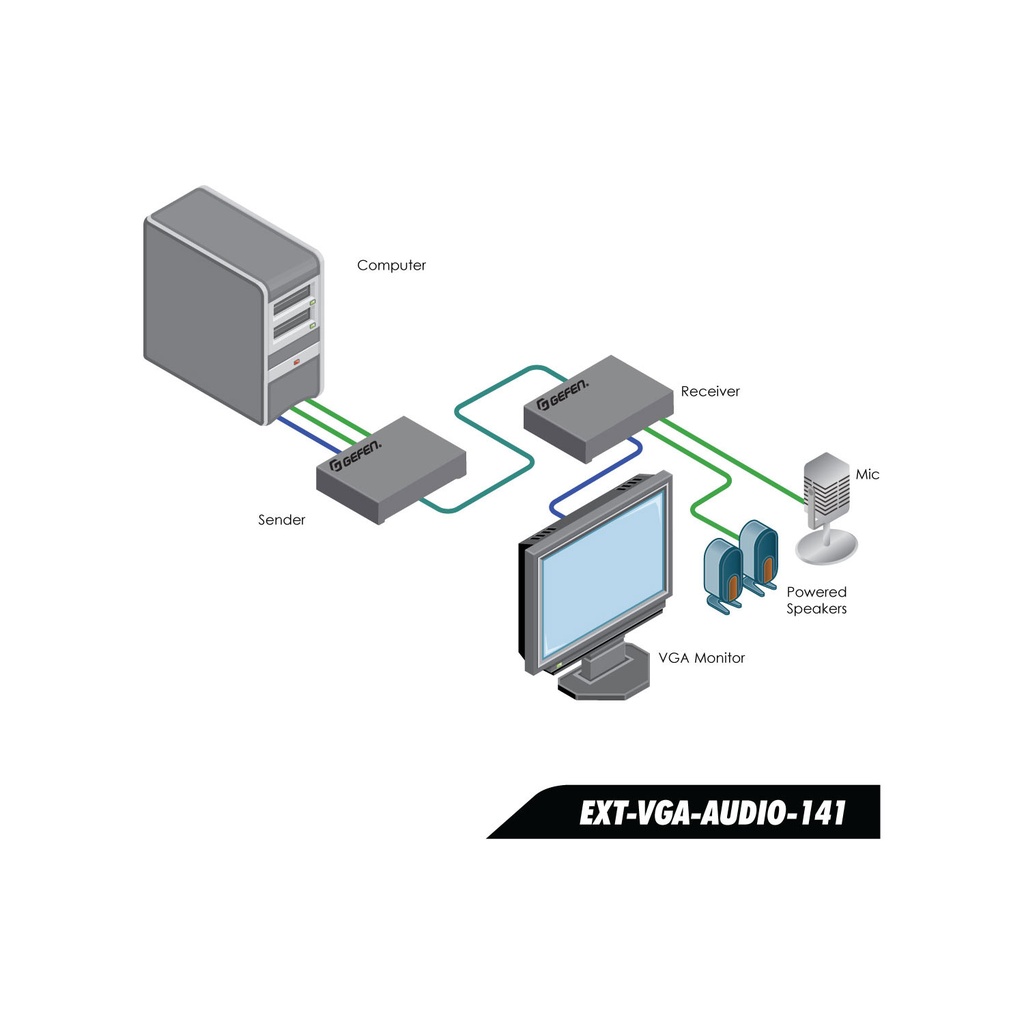

• Extends VGA and Analog L/R Audio up to 150 feet (45 meters) over one CAT-5 cable
• Supports resolutions up to 1920 X 1080
• Bi-directional audio transmission for L/R audio and microphone
• Trim pot and DIP switches for fine video equalization

Specifications

Video Amplifier Bandwidth: 350 MHz

Input Video Signal: 1.2 V p-p / Input Sync Signal: 5V p-p (TTL)

Horizontal Frequency Range: 15-70 kHz

Vertical Frequency Range: 30 – 170 Hz

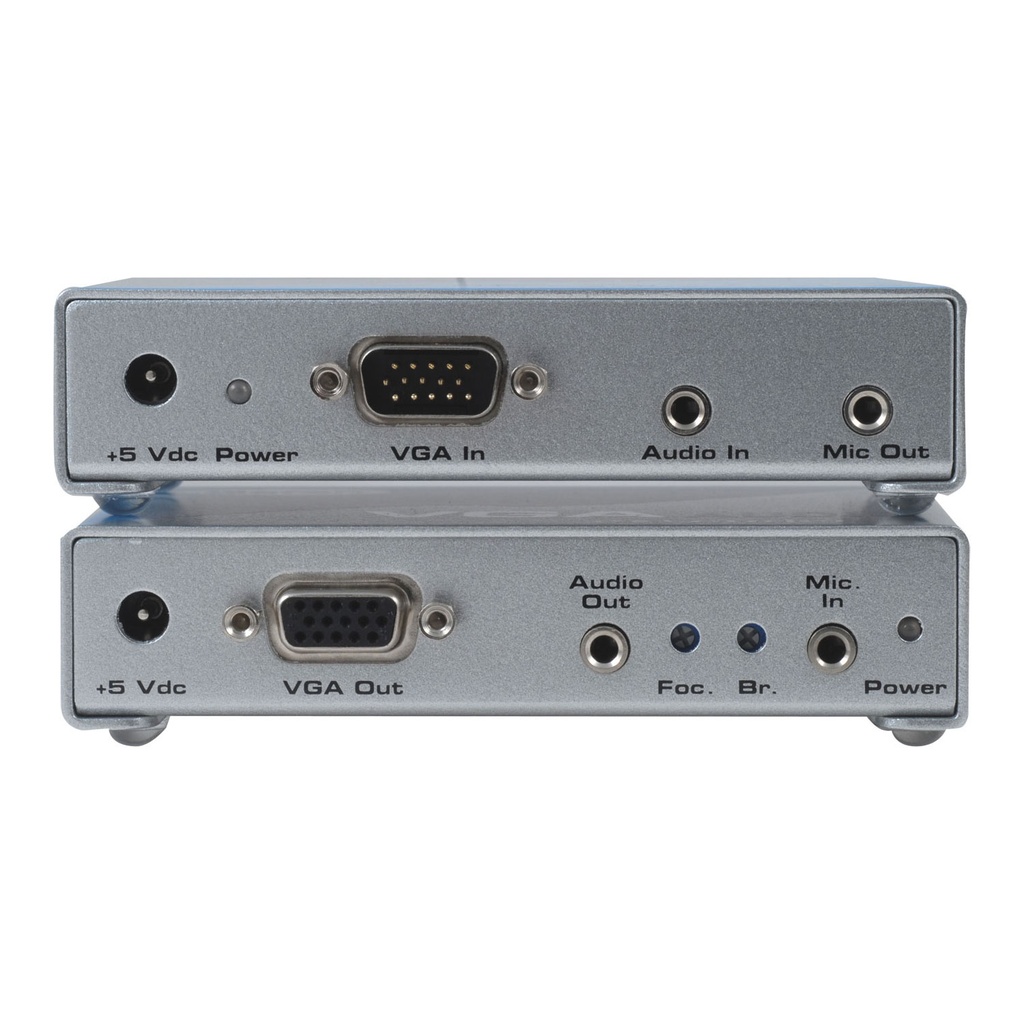

Video Input Connector (Sender): (1) VGA HD-15, male

Video Output Connector (Receiver): (1) VGA HD-15, female

Audio Input Connector (Sender): (1) 3.5 mm mini-stereo jack

Audio Output Connector (Receiver): (1) 3.5 mm mini-stereo jack

Microphone Output Connector (Sender): (1) 3.5 mm mini-mono jack

Microphone Input Connector (Receiver): (1) 3.5 mm mini-mono jack

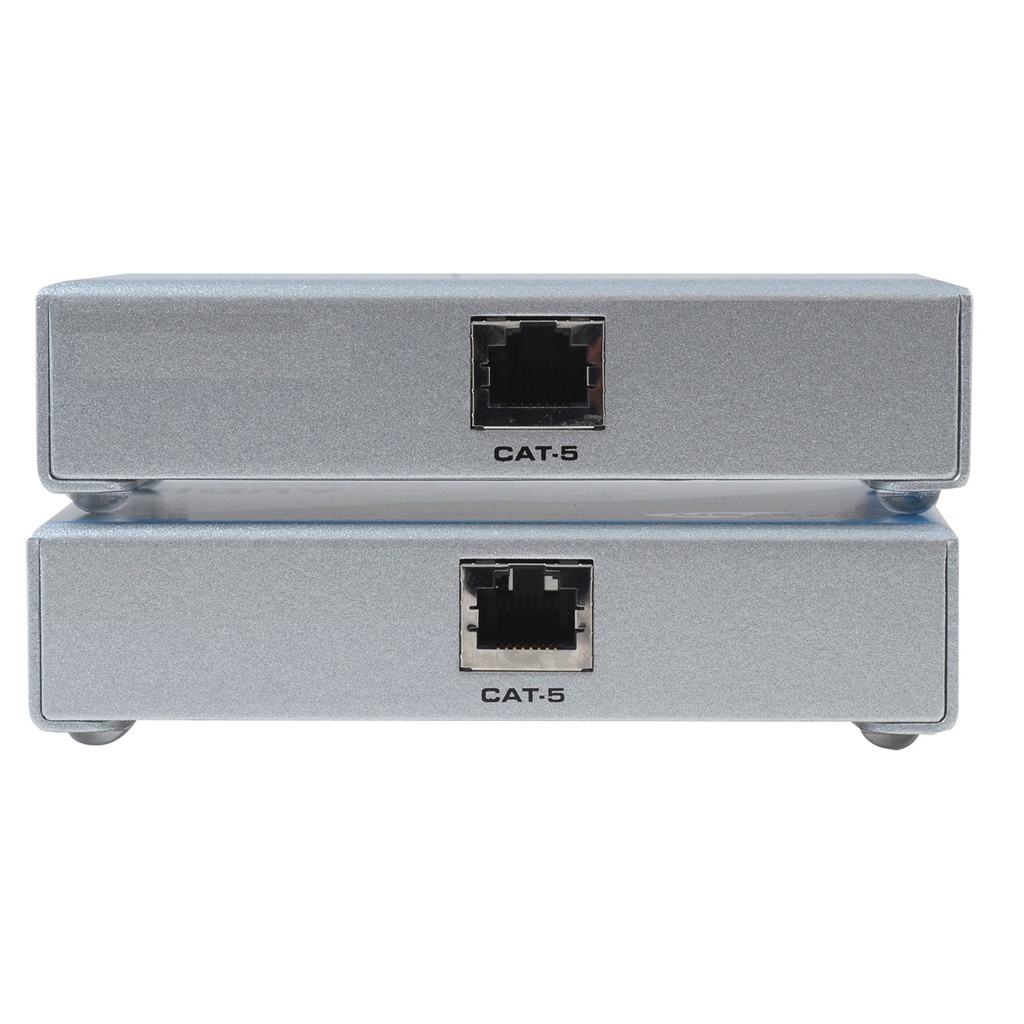

Link Connector (Sender / Receiver): (1) RJ-45,Shielded

Audio Frequency Response: 20Hz – 20kHz

Power Supplies (Sender / Receiver): 5V DC

Power Consumption: 5W (max.) each

Dimensions: 4.7" W x 2.8" D x 1.1" H

Other Specifications

Shipping Info

• Length0 (Inches)
• Width0 (Inches)
• Height0 (Inches)
• Weight0 (Lbs)
• UPC845344024103

Other Specifications

• Video Amplifier Bandwidth: 350 MHz
• Input Video Signal: 1.2 V p-p / Input Sync Signal: 5V p-p (TTL)
• Horizontal Frequency Range: 15-70 kHz
• Vertical Frequency Range: 30 – 170 Hz
• Video Input Connector (Sender): (1) VGA HD-15, male
• Video Output Connector (Receiver): (1) VGA HD-15, female
• Audio Input Connector (Sender): (1) 3.5 mm mini-stereo jack
• Audio Output Connector (Receiver): (1) 3.5 mm mini-stereo jack
• Microphone Output Connector (Sender): (1) 3.5 mm mini-mono jack
• Microphone Input Connector (Receiver): (1) 3.5 mm mini-mono jack
• Link Connector (Sender / Receiver): (1) RJ-45,Shielded
• Audio Frequency Response: 20Hz – 20kHz
• Power Supplies (Sender / Receiver): 5V DC
• Power Consumption: 5W (max.) each
• Dimensions: 4.7" W x 2.8" D x 1.1" H

In The Box

• VGA Audio Sender unit(1)
• VGA Audio Receiver unit(1)
• 6 ft. VGA cable (M-F)(1)
• 6ft. Audio Cable(1)
• 5V DC Power Supplies(2)
• User Manual(1)

2 year product warranty

Please see the Gefen warranty page for more details
