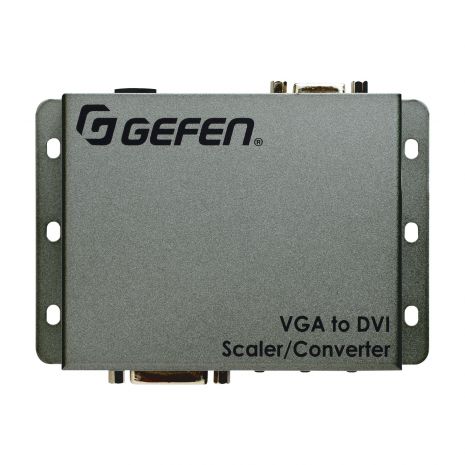

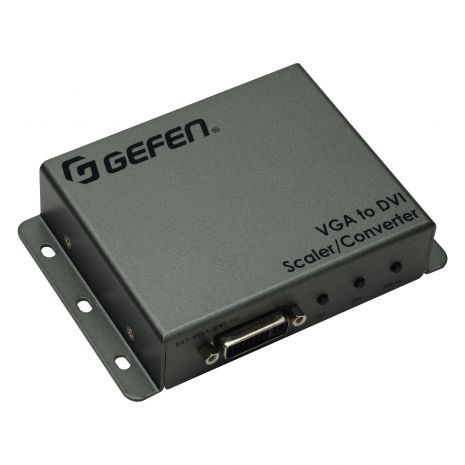

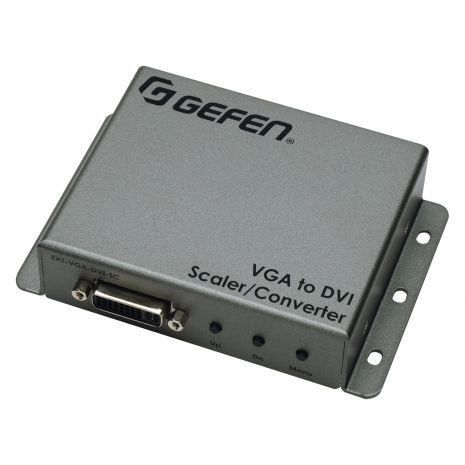

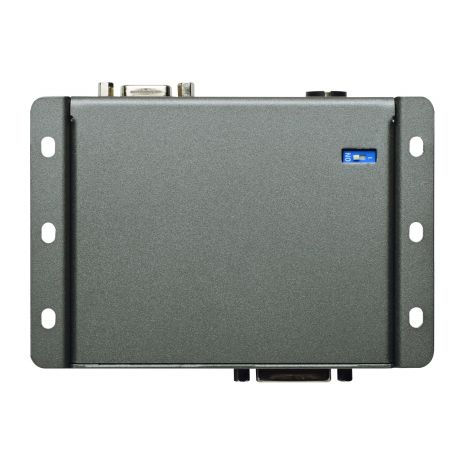

Gefen VGA to DVI Scaler / Converter

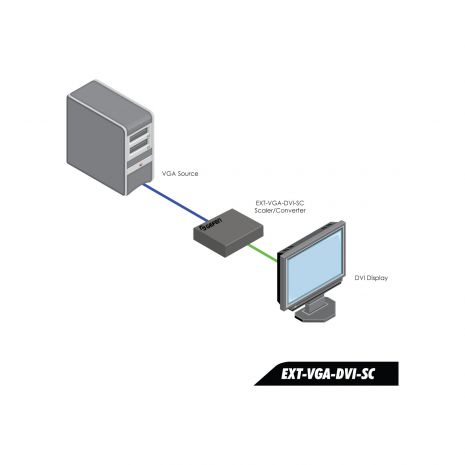

• Converts and scales VGA to DVI

• Input resolutions up to 1920 x 1200 (WUXGA)

• Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA)

• On-screen display (OSD) menu allows easy set-up and control

• Aspect Ratio Control: Full Screen, Panoramic, Letter/Pillar, Extract/Crop

• Test Pattern Generator for quick system configuration

• Gefen Syner-G simplifies in-field firmware updates and advanced EDID management including custom input timings

• USB port for use with Gefen Syner-G

• Wide power supply operating range (6V to 24V DC)

• Locking power supply connector

• Surface mountable


Specifications

Maximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 165 MHz

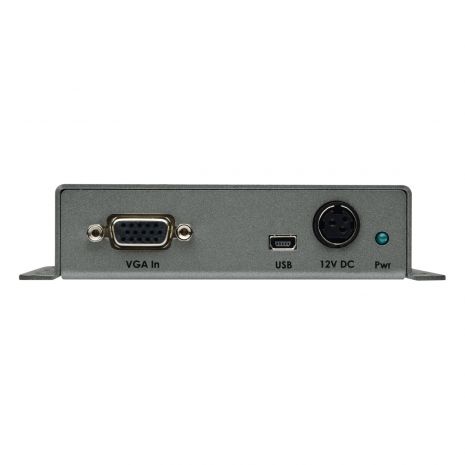

Video Input Connector: (1) VGA HD-15, female

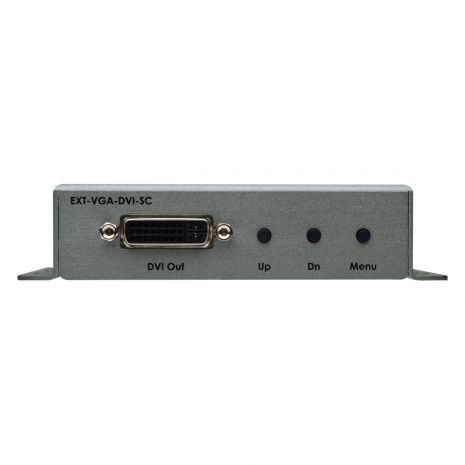

Video Output Connectors: (1) DVI-I, 29-pin, female
(digital only)
USB Connector: (1) Mini-B
Menu/Navigation Switches: (3) tact-type
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
Power Consumption): 2W maximum
Operating Temperature: +32 to +122  °F (0 to +50  °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185  °F (-20 to +85  °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 4.9″ x 1″ x 3.2″
(123mm x 26mm x 82mm)
Unit Weight: 0.4 lbs. (0.2kg)

Other Specifications

Shipping Info

• Length0 (Inches)
• Width0 (Inches)
• Height0 (Inches)
• Weight0 (Lbs)
• UPC888814071825

Other Specifications

• Maximum Pixel Clock: 165 MHz
• Maximum TMDS Clock: 165 MHz
• Video Input Connector: (1) VGA HD-15, female
• Video Output Connectors: (1) DVI-I, 29-pin, female
• (digital only)
• USB Connector: (1) Mini-B
• Menu/Navigation Switches: (3) tact-type
• Power Indicator: (1) LED, blue
• Power Supply Connector: (1) 3-pin, locking
• Power Supply: 12V DC nominal (6V to 24V DC operating range)
• Power Consumption): 2W maximum
• Operating Temperature: +32 to +122  °F (0 to +50  °C)
• Operating Humidity: 5% to 90% RH, non-condensing
• Storage Temperature: -4 to +185  °F (-20 to +85  °C)
• Storage Humidity: 0% to 95% RH, non-condensing
• MTBF: 50000 hours
• Dimensions (excluding connectors, W x H x D): 4.9″ x 1″ x 3.2″
• (123mm x 26mm x 82mm)
• Unit Weight: 0.4 lbs. (0.2kg)

In The Box

• VGA to DVI Scaler / Converter (EXT-VGA-DVI-SC)(1)
• 6 ft. VGA Cable (CAB-VGA-6MM-O)(1)
• 12V DC Power Supply (EXT-PS121.5AIP-3P-6)(1)
• Quick-Start Guide (QSG-EXT-VGA-DVI-SC)(1)

3 year product warranty

If the product was purchased before March 29, 2017, the warranty duration is 2 years.

Please see the Gefen warranty page for more details
