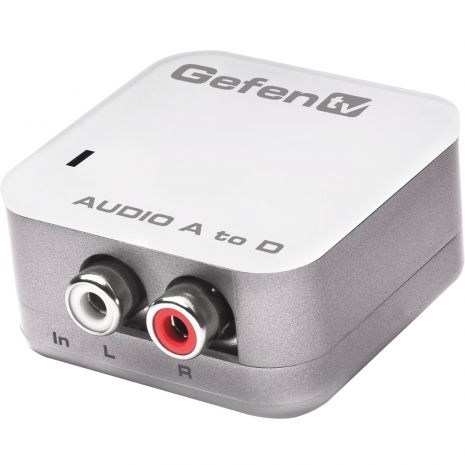

Gefen Analog to Digital Audio Adapter

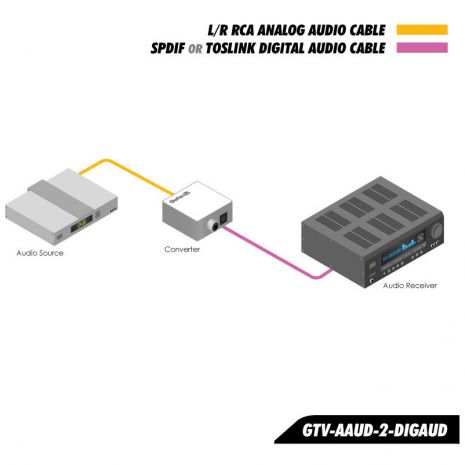

• Converts analog L/R signals to digital S/PDIF or TOSLink

• Compact and easy to install

• Simple to Operate

Supports 48 kHz output sampling frequency

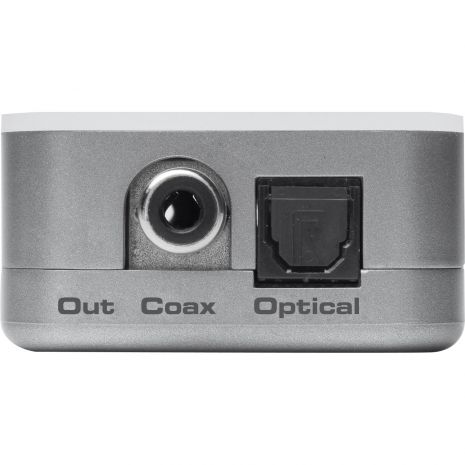

Coaxial and optical output ports

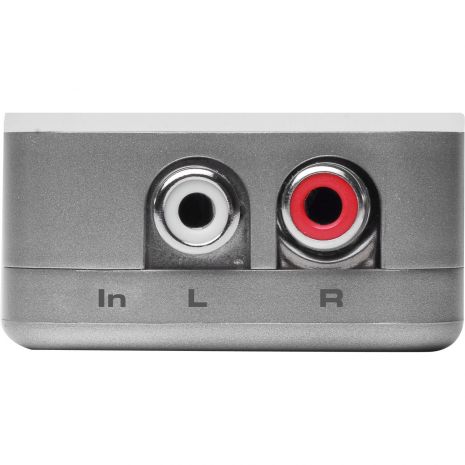

Right and Left RCA Stereo input ports

Supports optical cable run of up to 5 meters (15 feet)

Signal To Noise Ratio: >90dB (20Hz-20kHz A weight filter)

THD+N: < 0.01% at 1kHz at reference level

Frequency Response: < +/- 0.5dB 20Hz-20kHz

Crosstalk: < -85dB

RMS Level (CH1 / CH2): : 1.0 Vrms analog input at the -7.4 dBFS digital output level

Operating temperature: 0-48 deg. C

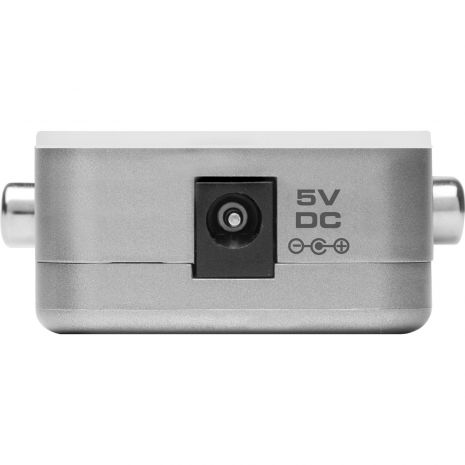

Power Supply: 5V DC / 0.36A

Dimensions: : 1.8″ W x 1.8″ H x 0.9″ D

Weight: 1 lb.

Shipping Info

• Length7.48 (Inches)
• Width5.31 (Inches)
• Height2.56 (Inches)
• Weight0.8 (Lbs)
• UPC845344055404

Other Specifications

• Supports 48 kHz output sampling frequency
• Coaxial and optical output ports
• Right and Left RCA Stereo input ports
• Supports optical cable run of up to 5 meters (15 feet)
• Signal To Noise Ratio: >90dB (20Hz-20kHz A weight filter)
• THD+N: < 0.01% at 1kHz at reference level
• Frequency Response: < +/- 0.5dB 20Hz-20kHz
• Crosstalk: < -85dB
• RMS Level (CH1 / CH2): 1.0 Vrms analog input at the -7.4 dBFS digital output level
• Operating temperature: 0-48 deg. C
• Power Supply:5V DC / 0.36A
• Dimensions: 1.8″ W x 1.8″ H x 0.9″ D
• Weight: 1 lb.

In The Box

• GefenTV Analog-to-Digital Audio Converter(1)
• 5V DC external power adapter(1)

2 year product warranty

Please see the Gefen warranty page for more details
