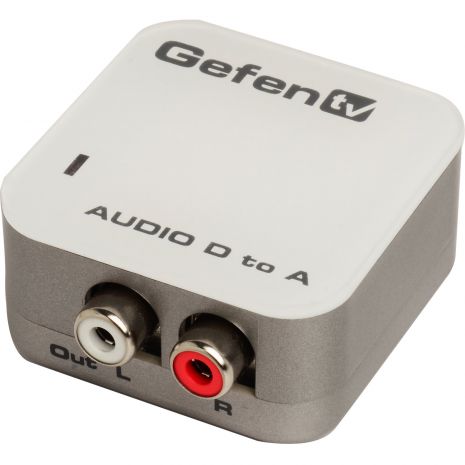

Gefen Digital Audio to Analog Adapter

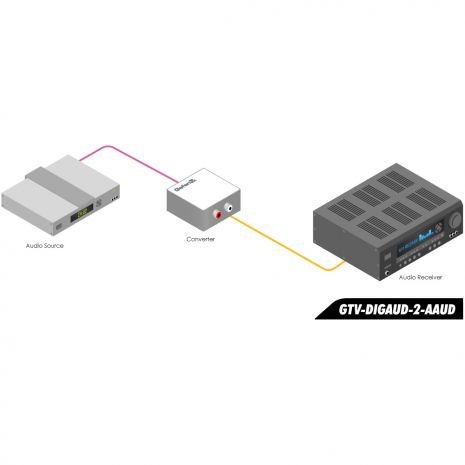

• Converts S/PDIF or TOSLink digital audio signals to analog L/R audio

• Digital interpolation filter and digital to analog converter (DAC)

• Accepts uncompressed digital audio as input

• Samples at 32, 44.1, 48 and 96 KHz

• 2-channel LPCM (Linear Pulse Code Modulation)

• 24-bit S/PDIF incoming bitstream on left and right channels

• Compact and easy to install

Specifications

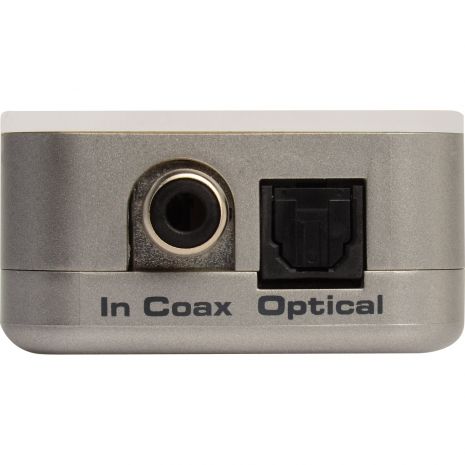

Coaxial and Optical digital input ports

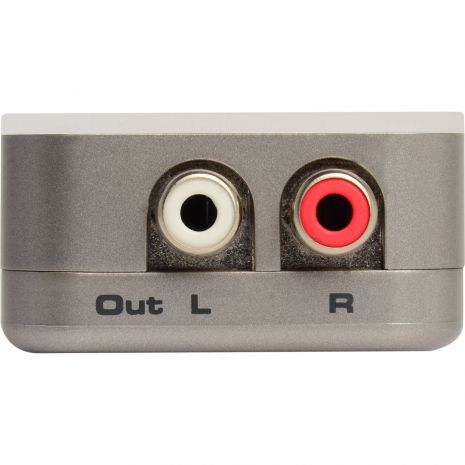

Right and Left RCA Stereo analog output ports

Distortion: : <0.001% @ 1kHz at 2V RMS

SNR: > 90dB (20Hz – 20kHz A Weighting)

Chassis: White plastic chassis

Operating Temperature: 0-70 deg. C

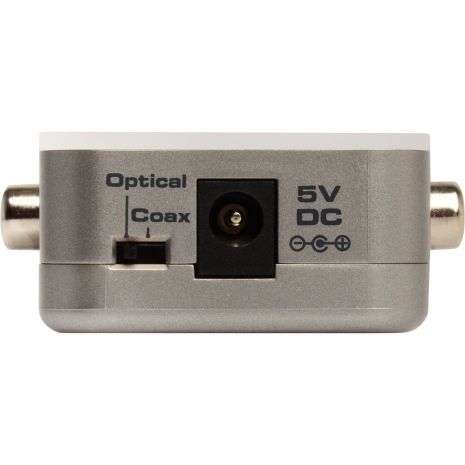

Power supply: : 5v DC / 5W (US/EU standards, CE/FCC/UL certified)

Dimensions: : 1.8" W x 1.8" H x 0.9" D

Shipping Weight: : 1 lb.

Other Specifications

Shipping Info

• Length7.48 (Inches)
• Width5.31 (Inches)
• Height2.75 (Inches)
• Weight0.8 (Lbs)
• UPC845344080567

Other Specifications

• Coaxial and Optical digital input ports
• Right and Left RCA Stereo analog output ports
• Distortion: <0.001% @ 1kHz at 2V RMS
• SNR: > 90dB (20Hz – 20kHz A Weighting)
• Chassis: White plastic chassis
• Operating Temperature: 0-70 deg. C
• Power supply: 5v DC / 5W (US/EU standards, CE/FCC/UL certified)
• Dimensions: 1.8" W x 1.8" H x 0.9" D
• Shipping Weight: 1 lb.

In The Box

• GefenTV Digital To Analog Audio Adapter (GTV-DIGAUD-2-AAUD)(1)
• 3 ft. Optical Cable (CAB-TLINK-3MM-O)(1)
• 5V DC Power Supply (EXT-PS51AIP-O)(1)
• Quick-Start Guide (QSG-GTV-DIGAUD-2-AAUD)(1)

2 year product warranty

Please see the Gefen warranty page for more details
