Aurora RXS-2 NUC PC with Intel i7, 32GB RAM and 1TB SSD
This product is no longer available.
Features:
- Intel i5 or i7 Processor
- 16GB or 32GB RAM
- 1TB SSD
- Windows or Linux OS
- 2 HDMI Outputs
- 1 HDMI Input (4K30 Capture)
- 1Gbps LAN Port (PoE++)
- 2.5Gbps LAN Port (PoE++)
- 2 USB 3.1 Front
- 1 USB 3.1 Type-C Rear
- RS-232
- Line In and Out
- Front Status Display
- Integrated Wi-Fi 6e
- Bluetooth 5.3
- USB Type-C Power

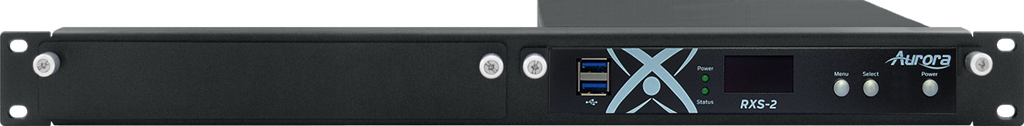

- 1RU Dual Rack Mount (RK2-1-K)

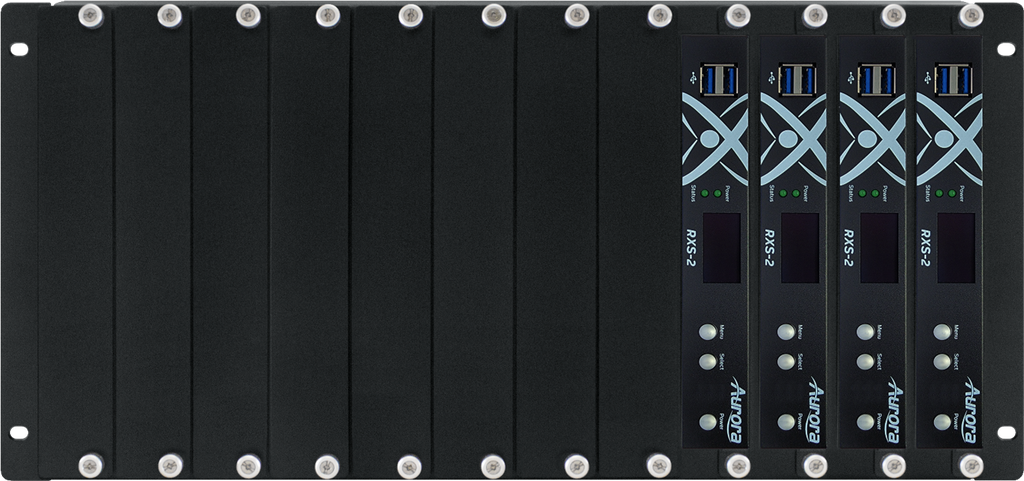

- 5RU 12 Unit Rack Mount (RK2-5-K)
| Technical | |
| Processor | Intel® NUC Element 12th Gen (i5, i7) |
| Memory | 16GB/32GB RAM |
| Storage | 500GB/1TB |
| Graphics | Intel® 12th Generation |
| HDMI Output | 2 HDMI 4K60 4:4:4 |
| HDMI Input | 1 HDMI 4K60 4:2:0/4K30 4:4:4 |
| Audio | Line In/Out Stereo |
| Wi-Fi | Intel Wi-Fi 6e AX221 (802.11ax) |
| Bluetooth | v5.3 |
| Serial | 3.5mm TRS RS-232 |
| USB 3.1/2.0 | 2 Type A, 1 Type-C |
| LAN | 2.5G RJ-45 PoE++, 1G RJ-45 PoE++ |
| Mechanical & Power | |
| Housing | Metal Enclosure |
| Dimensions [L x W x H] | 7” x 7.44” x 1.094” (17.7cm x 18.9cm x 2.75cm) |
| Weight | 2lb 3.2oz (1kg) |
| Mounting | Rack (RK2-1-K, RK2-5-K) or Wall (Included) |
| Power Supply | USB-C 20v 5A DC (100 Watts) |
| Power Consumption | 100 Watts Max with USB-C Power Supply |
| PoE++ | 85 Watts Required |
| Operation Temperature | 0~40° C [32~104° F] |
| Storage Temperature | -20~60° C [-4~140 °F] |
| Relative Humidity | 20~90% RH [No Condensation] |
About
The Aurora RXS-2 is a 12th Generation Intel NUC Element PC designed for the AV industry and more. Its small size allows for mounting behind displays and under tables. It can also be rack mounted as two in a 1RU or 12 in 5RU. Available in i5 & i7 with 1TB SSD. The RXS-2 has dual 4K60 4:4:4 HDMI outputs and one HDMI input for capture of 4K signals. Wi-Fi 6e, Bluetooth, 2.5G LAN, 1G LAN, USB 3.1, and RS-232 ports make it perfect for unified communications and digital signage applications. Sometimes it is the little things that make a big difference and that is where the OLED comes in. The front OLED will display IP address, MAC address, serial number, and more which is great for servicing. Finally, a PC made to simplify installations with a powerful processor and features beyond a typical PC.
