Features
- Configure as Encoder or Decoder
- 4K60 4:4:4 UHD 120m over 1G CAT 5e
- Zero Frame Latency (1.78ms)
- HDMI 2.0b, HDCP 2.2
- HDR10, HDR10+, Dolby Vision
- LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio & ATMOS
- 12 bits color depth processing, 16bits OSD
- Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
- Low Power Fanless Design
- Scaling & Seamless Switching
- MJPEG Preview up to 720p30
- Video Wall with Image Rotation
- 1G LAN PoE and SFP for Fiber or 2nd RJ-45
- 2 HDMI Inputs, 1 HDMI Output
- Line In/Out Stereo
- RS-232 Serial Port and IR (In/Out)
- Channel Mapping with On-Screen Preview
- Integrated Web Server for Configuration
- USB 2.0 Ports for Cameras, HID Devices, Mass Storage, etc.
- Dante® 2/8 Ch Audio License Options & Dante Controller
- Rack and Under Table Mounting
Technical
| Compression | Mimix™ 8:1 |
| Latency | 1 Frame (16.6ms) |
| HDMI Inputs | 2 (HDMI 2.0b, HDCP 2.2) |
| HDMI Outputs | 1 (HDMI 2.0b, HDCP 2.2) |
| Encryption | AES 256 |
| Analog Audio | Stereo Line In/Out (3.5mm TRS) |
| 1G Ethernet | RJ-45 and SFP |
| LAN | RJ-45 10/100/1000 PoE |
| Video Bandwidth | 600MHz |
| Video Support | Up to 4K2K 4:4:4 @ 60Hz |
| Audio Support | Up to 12 Channels |
| RS-232 | Up to 115k Baud (3.5mm TRS) |
| IR | Bi-Directional (3.5mm TRS) |
| USB Connector | 1 USB 2.0 Type C 1 USB 1.1 Type C 1 USB 2.0 Type A 2 USB 1.1 Type A |
| Expansion Port | Dante® 2Ch/8Ch and ReAX™ |
| Interface | IR or Keyboard via OSD, Web Server |
Mechanical
| Housing | Black Aluminum Enclosure |
| Dimensions | 177.04 x 150.7 x 26.42mm [6.97” x 5.93” x 1.04”] |
| Weight | .453kg [1lbs] |
| Mounting | Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount |
| Power Supply | 48v DC (2 Pin Euro) or PoE+ (LAN) |
| Power Consumption | 8 Watts, up to 12.9 Watts with USB |
| Operating Temperature | 0~40o C [32~104o F] |
| Storage Temperature | -20~60o C [-4~140o F] |
| Relative Humidity | 20~90% RH [No Condensation] |
Package Contents
| 1x VPX-TC1, 2x Mounting Ears |

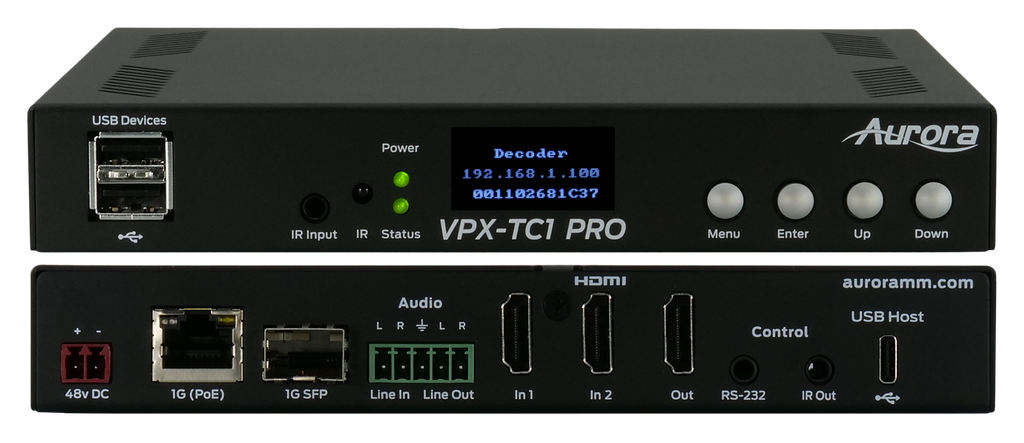

The VPX-TC1 Pro Series provides one of the most advanced 1G IP Streaming solutions on the market utilizing Aurora’s new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has sub-frame (1.78ms) latency and seamless switching for fast lag free content. Power consumption is important as the VPX-TC1 uses as little as 8 watts. It does this with no fan and a small form factor saving a lot of money in utility bills as it uses 1/3 the power of comparable systems.
Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 1G RJ-45 Ethernet switch. When the VPX-TC1 is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Seamless switching of the sources further enhances the presentation. Regardless of how the VPX-TC1 is set up, the audio can be de-embedded at any location, and/or be sent to or received from a Dante® enabled device. The USB is also flexible, working as a KVM and/or a high-speed data transfer (100Mbps) for memory sticks & cameras. Each VPX-TC1 USB feature can also be set as a host or a device. To keep the system friendly, an OSD and integrated web server are available for easy navigation and setup of features.
Digital signage, education, corporate, and residential are just a few markets which benefit from the flexibility and low cost of the VPX-TC1.
