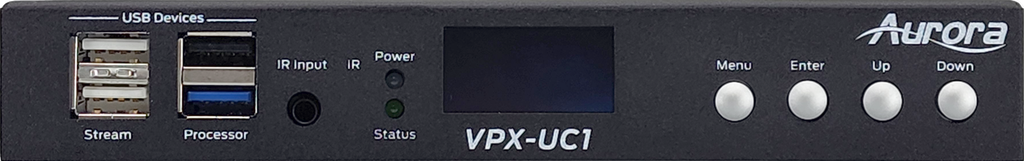

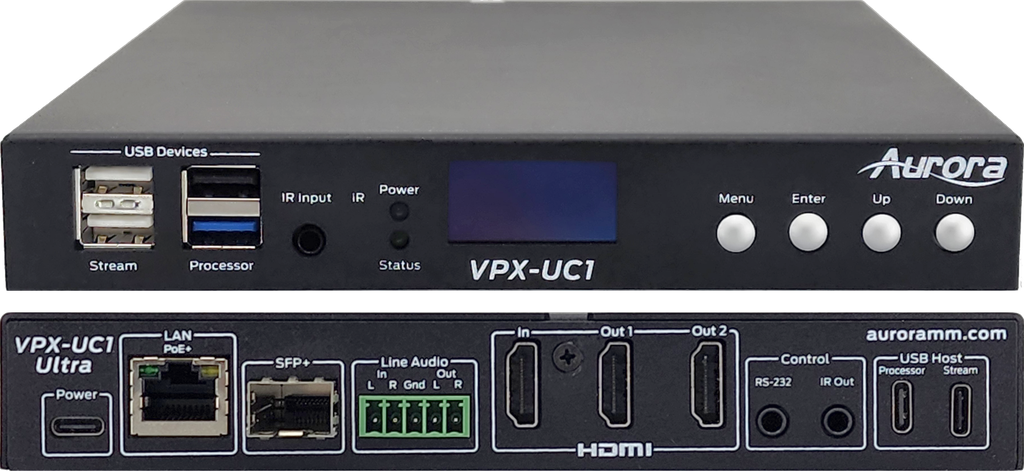

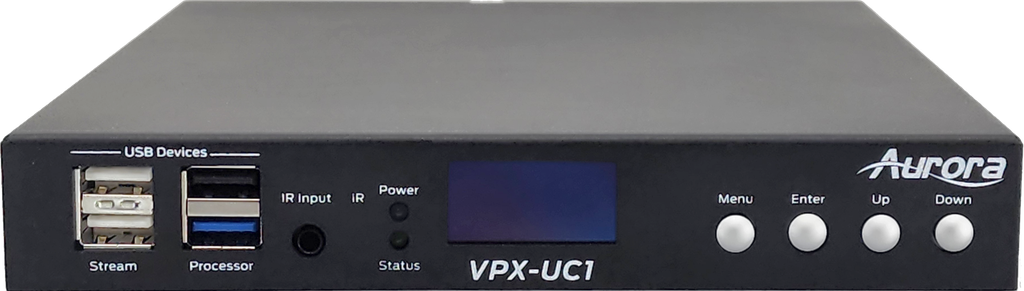

Aurora 4K60 1G Unified Communication AVoIP Transceiver, No SSD

Aurora 4K60 1G Unified Communication AVoIP Transceiver

Aurora 4K60 1G Unified Communication AVoIP Transceiver, No SSD

This combination does not exist.

SKU: VPX-UC1-ULTRA

Brand: Aurora Multimedia

Description

About

The VPX-UC1 Ultra provides the most advanced 1G IP Streaming Unified Communications solutions on the market utilizing Aurora’s new Mimix™ CODEC technology. Mimix™ compression allows for near perfect reproduction of video and graphic images at resolutions up to 4K60 4:4:4 over 1G networks. It has zero frame (1.78ms) latency and seamless switching for fast lag free content. The combined 8 Core 12 Android Processor allows any Android application to be run and combined with the streaming content as a source. Perfect for UC and Digital Signage applications, the VPX-UC1 Ultra sets a new standard in price and performance.

Product Features

Features

Configure as Encoder or Decoder
Zero Frame Latency (1.78ms)
4K60 4:4:4 UHD 120m over 1G CAT 5e
HDMI 2.0b, HDCP 2.2
HDR10, HDR10+, Dolby Vision
LPCM up to 12-channels, Dolby Digital Plus, Dolby TrueHD DTS HD Master Audio & ATMOS
12 bits color depth processing, 16bits OSD
Enterprise Security (AES 256, 802.1x, HTTPS, & SSH)
Scaling, Seamless Switching & Video Wall with Rotation
MJPEG Preview up to 720p30

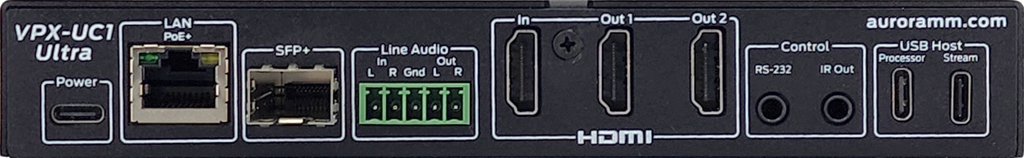

2.5G LAN PoE+ and 1G SFP for Fiber or 2nd RJ-45
2 HDMI Outputs, 1 HDMI Input
Line In/Out Stereo
RS-232 Serial Port and IR (In/Out)
Channel Mapping with On-Screen Preview
Integrated Web Server for Configuration
USB 2.0 Ports for Cameras, HID Devices, Mass Storage, etc.
Dante® 2/8 Ch Audio License Options & Dante Controller
Rack and Under Table Mounting

Processor

8 Core 2.4GHz Processor • Android 12 OS
1TB SSD Option
3 USB 3.1
Dual 8K60 HDMI Outputs • ReAX Control Engine
Works with Zoom®, Teams®, WebEx®, Microsoft® 365, and any other Android App.

AI Option

6TOP NPU
Gender, Age, & Emotion Prediction
People Counting

Technical Specifications

Model Name	VPX-UC1-ULTRA
CPU
Processor	Android 12, 8-Core 64-bit ARM Processor 2.4GHz with 6TOP NPU
Memory	32GB FLASH with 4GB RAM & (Up to 1TB SSD Expansion)
USB Ports	2 USB 3.1 Type A, 1 Type-C
HDMI Outputs	2 (HDMI 2.1, HDCP 2.3) Up to 8K60
AVoIP
Compression	Mimix™ 13:1
Latency	0 Frames (1.78ms)
HDMI Inputs	1 (HDMI 2.0b, HDCP 2.2)
Encryption	AES 256
Audio Analog	Stereo Line In/Out (3.5mm TRS)
1G Ethernet	RJ-45 and SFP
LAN	RJ-45 10/100/1000M PoE
Video Bandwidth	600MHz (Up to 4K2K 4:4:4 @ 60Hz)
Audio Support	Up to 12 Channels
Video Stream Bandwidth	10Mbps – 800Mbps (4K60 4:4:4)
USB Bandwidth	200Mbps (Camera), 160Mbps (HID/Mass Storage Devices)
RS-232	Up to 115k Baud (3.5mm TRS)
IR	Bi-Directional (3.5mm TRS)
USB Connector	1 USB 2.0 Type C, 2 USB 2.0 Type A
Options	Dante® 2Ch/8Ch
Interface	IR or Keyboard via OSD, Web Server
Mechanical
Housing	Black Aluminum Enclosure
Dimensions (L x W x H)	7” x 7.44” x 1.094” (17.7cm x 18.9cm x 2.75cm)
Weight	.453kg [1lbs]
Mounting	Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount
Power Supply	48v DC (2 Pin Euro) or PoE (LAN)
Power Consumption	8 Watts, up to 12.9 Watts with USB
Operation Temperature	0~40o C [32~104o F]
Storage Temperature	-20~60o C [-4~140o F]
Relative Humidity	20~90% RH [No Condensation]
Package Contents	1x VPX-UC1-ULTRA, 2x Mounting Ears
