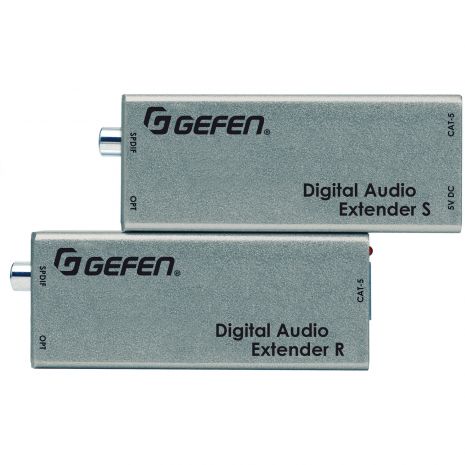

Gefen Digital Audio Extender over one CAT-5

• Extends any S/PDIF and TOSLINK® digital audio device up to 330 feet (100 meters) from the source
• Supports multichannel digital audio like Dolby® Digital 5.1, DTS, and Dolby® TrueHD
• Supplies clear digital audio over long distances as if connected locally
• Streamlines audio installations by allowing source devices to be located in off-site or unseen rack
• One CAT-5e cable used for extension
• Audio is transmitted digitally for zero signal loss

Data Transmission Rate: 12.8 Mb/s

S/PDIF: 96 kHz performance

TOSLINK: 192 kHz performance

Input/Output: : S/PDIF, optical TOSLINK

Link Connector: RJ-45 Shielded

Power Supply: 5V DC

Power Consumption: 5W (max) per power supply

Dimensions (W x H x D): 3.8" x 1.2" x 1.4" (96mm x 30mm x 35mm)

Shipping Weight: 5 lbs. (2.3 kg)

Shipping Info

• Length9.31 (Inches)
• Width6.13 (Inches)
• Height3 (Inches)
• Weight1.2 (Lbs)
• UPC845344001210

Other Specifications

• Data Transmission Rate: 12.8 Mb/s
• S/PDIF: 96 kHz performance
• TOSLINK: 192 kHz performance
• Input/Output: S/PDIF, optical TOSLINK
• Link Connector: RJ-45 Shielded
• Power Supply: 5V DC
• Power Consumption: 5W (max) per power supply
• Dimensions (W x H x D): 3.8" x 1.2" x 1.4" (96mm x 30mm x 35mm)
• Shipping Weight: 5 lbs. (2.3 kg)

In The Box

• EXT-DIGAUD-141 Sender unit (1)
• EXT-DIGAUD-141 Receiver unit (1)
• CAB-TLINK-3MM-5ft TOSLINK® cable(1)
• EXT-PS526AIPN or EXT-PS526AIPN-6 5V Power Supply(1)
• QSG-DIGAUD-141 Quick Start Guide(1)

2 year product warranty

Please see the Gefen warranty page for more details
