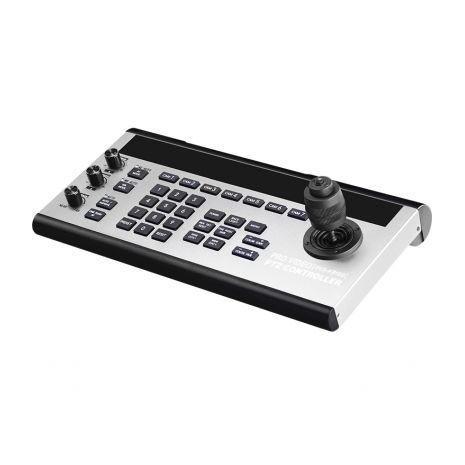

PUAS PUS-KB100 Professional Video Camera Controller for ProAV and Broadcasting

https://www.aptech.com.au/web/image/product.template/285/image_1920?unique=42cf45b

This product is no longer available.

SKU:

Multiple protocols, strong compatibility
KB100 has built-in mainstream protocols such as VISCA, SONY VISCA, PELCO P/D, compatible with any PTZ camera under standard VISCA protocol, and customized SONY VISCA protocol for SONY cameras, supporting SONY SRG series.

Abundant communication interface and simple connection
Support RS422, RS232, RS485, IP(Visca Over IP) and other interface communication, compatible with various devices and cameras, including SONY/ Panasonic / Lumens/ Datavideo / PTZ Optics / Aida;

Strong sense of operation experience
Can control the camera eight direction movement, super-experience Zoom In/Out & focus experience, showing a different close-up effect for your video.

AE/WE mode freely switch
Personalized switching in AE/WE mode to choose the right mode and priority level for your scene.

Auto & Manual Focus
Support Knob manual focus and One-Key Auto Focus or One Push AF by remote

7-Channel Camera Shortcut Button
up to 7 channels of camera shortcut switching, independent of each other, without interference, and supports more than 2 communication modes Working simultaneously

Support Remote Power ON/OFF Camera
Remotely Power ON/OFF the camera by the keyboard and automatically detect the power-on status of PTZ camera

255 Presets & 255 PTZ Camera
Max Support to 255 preset & 255pcs PTZ Cameras

Can customized LOGO Display on the OLED Screen Pannel
OLED Screen display, Easy operation

Support remote online upgrade

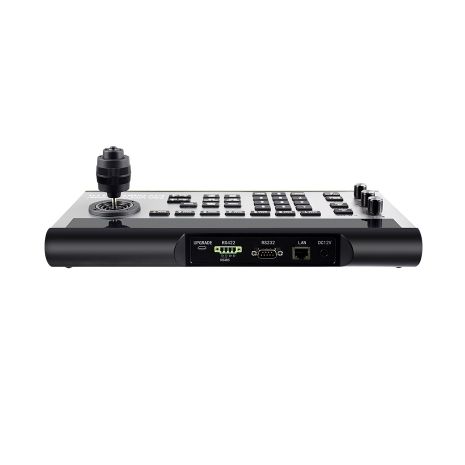

Interface & Setting

Communication: RS485 、RS422、RS232、IP (VISCA OVER IP)

Baudrate: 2400、4800、9600、19200、38400 (Only for RS-422、RS-485、RS-232）

ID: 1-7, Others

IP: 192.168.1.162 (163.164.165.166.167.168) with differenct Camera Channel( Default)

UDP Port ：（08090） defaut

VISCA PORT: 08090

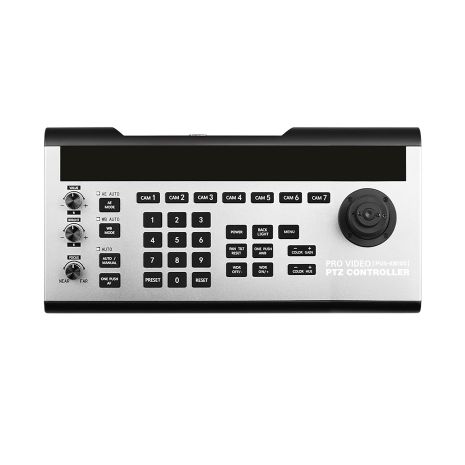

User Inteface

Display : OLED Display

Camera Channel: 7 Channel

Rotation Button: 3-Knobs ( R, G, Focus)

Joystick: 3-Axis ( Eight Direction+ Zoom In/Out)

Number Button: 32 Button Keys

Protocol: VISCA、SONY VISCA、 PELCO P/D、UDP(Visca Over IP)

Upgrade: USB TO Micro 5Pin Cable or Series Cable

General Parameters

Working Temperature : 0℃ ~ 40℃（32°F ~ 104°F）

Storage Temperature: -20℃ ~ 60 ℃（-4°F ~ 140°F）

Size( L*W*H) : 350*173*99mm

G.W(KGS): 2.6KGS

Packing In Box

1* KB100 Pro Video PTZ Controller

1* Power supply adapter

1* User Manual

1* 4Pin Terminal

Dimensions(mm)

Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Receiver): (1) 3.5mm mini-stereo jack

Optical Digital Audio Output (Receiver): (1) TOSLINK®

RS-232 port (Sender/Receiver): (1) 3.5mm stereo jack, female, DB-9 adaptor included

IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack

IR Extender type: EXT-RMT-EXTIRN

Ethernet port (Sender): (1) RJ-45, shielded, PoE

Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

Channel Up button (Receiver): (1) tact-type

Channel Down button (Receiver): (1) tact-type

Mode button (Sender): (1) tact-type, recessed

Reset button (Sender/Receiver): (1) tact-type, recessed

Program button (Sender/Receiver): (1) tact-type, recessed

Program Select switch (Sender/Receiver): (1) slide-type, recessed

Link Indicator (Sender/Receiver): (1) LED, green

Power Indicator (Sender/Receiver): (1) LED, blue

Power Supply jack (Sender/Receiver): 5V DC, 2.5mm pin and 5.5mm barrel, locking

Power Requirement (Sender/Receiver): 5V DC, or Po(more…)


Shipping Info

  • Length13.2 (Inches)
  • Width8.1 (Inches)
  • Height3.7 (Inches)
  • Weight2.9 (Lbs)
  • Unit of MeasureEach
  • UPC888814999716
Other Specifications
  • Video Input connector (Sender) (1) HDMI Type A 19-pin, female, locking
  • Video Output connector (Receiver) (1) HDMI Type A 19-pin, female, locking
  • Line Input (Sender) (1) 3.5mm mini-stereo jack
  • Line Output (Receiver) (1) 3.5mm mini-stereo jack
  • Optical Digital Audio Output (Receiver) (1) TOSLINK®
  • RS-232 port (Sender/Receiver) (1) 3.5mm stereo jack, female, DB-9 adaptor included
  • IR In/Ext (Sender/Receiver) (1) 3.5mm mini-stereo jack
  • IR Out (Sender/Receiver) (1) 3.5mm mini-mono jack
  • IR Extender type EXT-RMT-EXTIRN
  • Ethernet port (Sender) (1) RJ-45, shielded, PoE
  • Ethernet ports (Receiver) (2) RJ-45, shielded, one with PoE
  • Channel Up button (Receiver) (1) tact-type
  • Channel Down button (Receiver) (1) tact-type
  • Mode button (Sender) (1) tact-type, recessed
  • Reset button (Sender/Receiver) (1) tact-type, recessed
  • Program button (Sender/Receiver) (1) tact-type, recessed
  • Program Select switch (Sender/Receiver) (1) slide-type, recessed
  • Link Indicator (Sender/Receiver) (1) LED, green
  • Power Indicator (Sender/Receiver) (1) LED, blue
  • Power Supply jack (Sender/Receiver) 5V DC, 2.5mm pin and 5.5mm barrel, locking
  • Power Requirement (Sender/Receiver) 5V DC, or PoE (802.3af standard)
  • Power Consumption Sender: TBD
  • Receiver: TBD
  • Operating Temperature (Sender/Receiver) +32 to +122°F (0 to +50°C)
  • Operating Humidity (Sender/Receiver) 5% to 90% RH, non-condensing
  • Storage Temperature (Sender/Receiver) -4 to +185°F (-20 to +85°C)
  • Storage Humidity (Sender/Receiver) 0% to 95% RH, non-condensing
In The Box
  • Receiver unit (EXT-UHD-LANS-RX)1
  • 5V 2.6A Power Supply (EXT-PS526-AIP-LP-6)1
  • 3.5mm-to-DB-9 Adaptor, M-M (ADA-MP-2-DB9-MM-AB)1
  • IR Extender (EXT-RMT-EXTIRN)1
  • Self-Adhesive Rubber Feet4
  • L-Shaped Mounting Brackets2
  • Machine screws for L-Shaped Mounting Brackets4
  • Machine screws for EXT-RACK-1U-GRY (sold separately)2
  • Quick-Start Guide1
