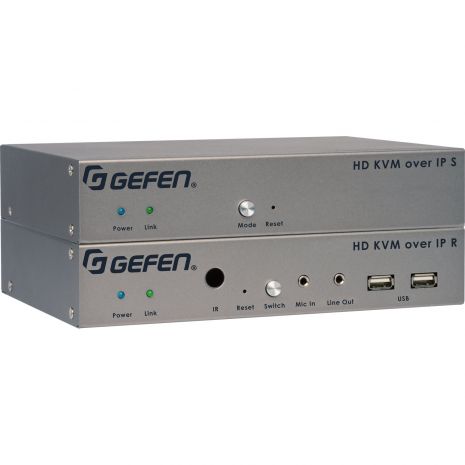

Gefen HD KVM over IP - Receiver Package

Extend and Distribute HDMI, USB, RS-232, IR, and 2-way audio over a Local Area Network using any combination of HDMI, DVI, and VGA Senders and Receivers

$ 1,299.00 $ 1,299.00 1299.0 AUD

$ 1,180.91

(Tax Inc)

Brand
- Gefen
Product Type
- Scalers & Converters

This combination does not exist.

ADD TO CART

SKU:

ESP1205

Description

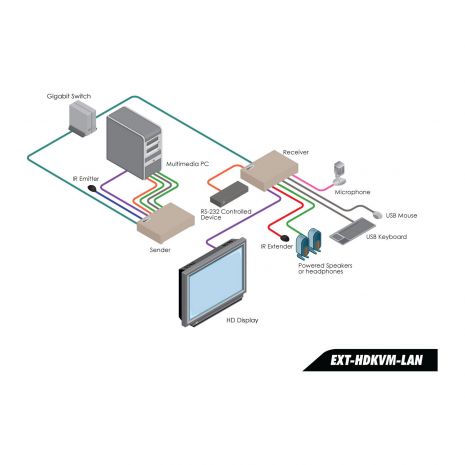

The Gefen HD KVM over IP extends HDMI, USB, 2-way analog audio, RS-232, and IR, over a Gigabit Local Area Network. Resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA) are supported. The Senders and Receivers can be automatically or manually configured to unique IP addresses to allow the connection of multiple units to the same network. Multiple Receiver units can simultaneously connect to any Sender unit within the network including the Gefen KVM over LAN products with HDMI, DVI, or VGA video, to create a virtual crosspoint matrix of just over 65,000 Sender and Receiver units total, depending on the network bandwidth and number of ports on the network switch (see Note) When using HDCP-encrypted content, only HDMI Senders and Receiver units can accept and display the content.
Each Receiver unit has a built-in Ethernet switch and two additional RJ-45 Ethernet ports to allow for the connection of computers and other IP-enabled devices. USB 2.0 data rates up to 480 Mbps are supported in addition to backward-compatibility with USB 1.1. Each Receiver unit provides two USB ports with up to 500mA current draw per connector, providing access to keyboard, mouse, and other compatible devices.

Specifications

Specifications for Gefen HD KVM over IP - Receiver Package

Brand	Gefen
Product Type	Scalers & Converters

Extra Info

Extends HDMI, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network
Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA)
Supported HDMI Features:
HDCP
Deep Color
LPCM 7.1 audio, Dolby® TrueHD, and DTS-HD® Master Audio
Lip-Sync pass-through
Built-in web interface facilitates intuitive set up and operation
Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen Keyboard Switching Controller software (available for download at (www.gefen.com)
Supports a total of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
USB 2.0 data rates up to 480 Mbps and backward-compatibility with USB 1.1
Three-port Gigabit Ethernet switch built into the Receiver unit
Mode button on Sender for sharpness or motion optimization of image
Field-upgradable firmware via web server interface
Locking power supply connectors

1U tall, half-rack width enc(more…)

Extra Info

Specifications

Maximum Pixel Clock: 225 MHz

Video Input Connector (Sender): (1) HDMI Type A 19-pin, female, locking

Video Output Connector (Receiver): (1) HDMI Type A 19-pin, female, locking

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Sender): (1) 3.5mm mini-stereo jack

Mic Input (Receiver): (1) 3.5mm mini-stereo jack

Line Output (Receiver): (1) 3.5mm mini-stereo jack

USB Host Interface (Sender): (1) USB Type B, female

USB Device Connectors (Receiver): (2) USB Type A, female

RS-232 Connector (Sender): (1) DB-9, female

RS-232 Connector (Receiver): (1) DB-9, male

IR Emitter (Sender): (1) 3.5mm mini-mono jack

IR Extender (Receiver): (1) 3.5mm mini-stereo jack

IR Extender Type: EXT-RMT-EXTIRN

Ethernet connector (Sender): (1) RJ-45, shielded

Ethernet connectors (Receiver): (3) RJ-45, shielded

Mode button (Sender): (1) tact-type

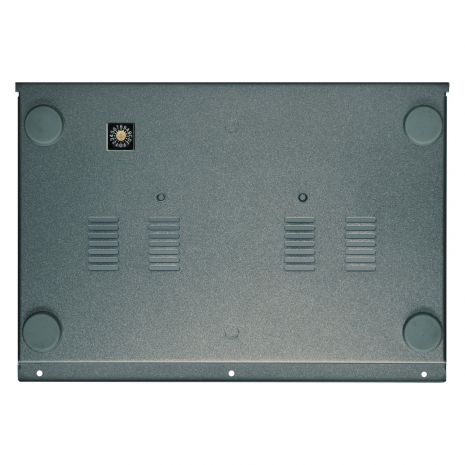

ID Selector switch (Sender): (1) rotary-type

Switch button (Receiver): (1) tact-type

Reset button (Receiver): (1) tact-type, recessed

Link Indicator (Sender/Receiver): (1) LED, green

Power Indicator (Sender/Receiver): (1) LED, blue

Power Supply (Sender / Receiver): 5V DC, locking
(more…)

Other Specifications

Shipping Info

Length20 (Inches)
Width12.5 (Inches)
Height5 (Inches)
Weight9.3 (Lbs)
UPC845344092195

Other Specifications

Maximum Pixel Clock: 225 MHz
Video Input Connector (Sender): (1) HDMI Type A 19-pin, female, locking
Video Output Connector (Receiver): (1) HDMI Type A 19-pin, female, locking
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Sender): (1) 3.5mm mini-stereo jack
Mic Input (Receiver): (1) 3.5mm mini-stereo jack
Line Output (Receiver): (1) 3.5mm mini-stereo jack
USB Host Interface (Sender): (1) USB Type B, female
USB Device Connectors (Receiver): (2) USB Type A, female
RS-232 Connector (Sender): (1) DB-9, female
RS-232 Connector (Receiver): (1) DB-9, male
IR Emitter (Sender): (1) 3.5mm mini-mono jack
IR Extender (Receiver): (1) 3.5mm mini-stereo jack
IR Extender Type: EXT-RMT-EXTIRN
Ethernet connector (Sender): (1) RJ-45, shielded
Ethernet connectors (Receiver): (3) RJ-45, shielded
Mode button (Sender): (1) tact-type
ID Selector switch (Sender): (1) rotary-type
Switch button (Receiver): (1) tact-type
Reset button (Receiver): (1) tact-type, recessed
Link Indicator (Sender/Receiver): (1) LED, green
Power Indicator (Sender/Receiver): (1) LED, blue
Power Supply (Sender / Receiver): 5V DC, locking
Power Consumption (Sender / Receiver): 10W (max.)
Dimensions (Sender / Receiver) (W x H x D): 8.4" x 1.7" x 4.5" (213mm x 43mm x 113mm)
Shipping Weight:
EXT-HDKVM-LAN: 8.3 lbs. (3.8 kg)
EXT-HDKVM-LANTX: 5.7 lbs. (3.0 kg)
EXT-HDKVM-LANRX: 4.6 lbs. (2.0 kg)

In The Box

L-Shaped Mounting Brackets with screws1
Quick-Start Guide for HD KVM over IP Receiver Package1
5VDC Power Supply – 2.6 AMP – locking type- interchangeable connectors (US,UK,EU,AU) (EXT-PS526AIP-LP)1

Extra Info

2 year product warranty

Please see the Gefen warranty page for more details

Extra Info

Gefen EXT-HDKVM-LAN Datasheet

Gefen EXT-HDKVM-LANRX Manual

Gefen EXT-HDKVM-LANRX Declaration of Conformity
