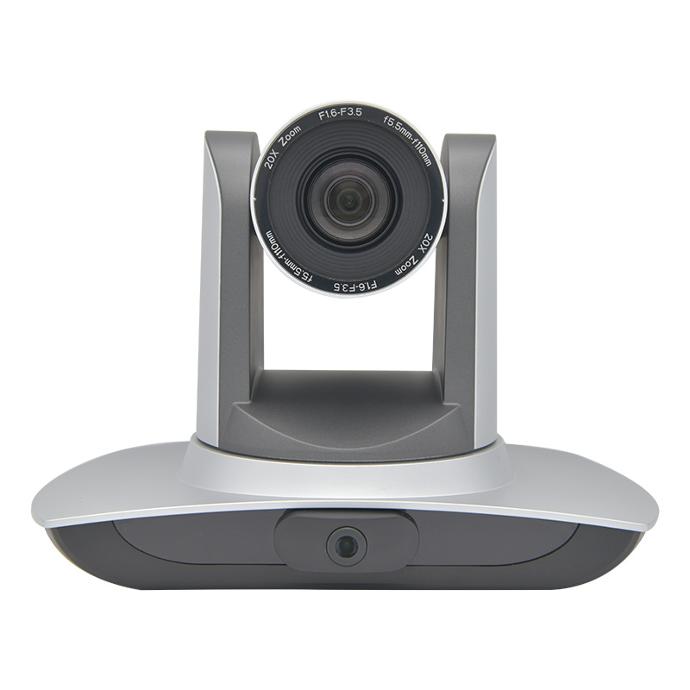

APT AV Education Intelligent Auto-tracking Camera - HDMI/U3

Brand
- APT AV
Product Type
- Auto Tracking PTZ
Optical Zoom
- 12X
- 20X

This combination does not exist.

SKU:

Description

The HD100T designed for Education is an Intelligent Auto-tracking Camera. The HD100T camera has a built-in high speed processor, advanced image processing and analysis algorithms to track lecturers accurately and quickly, which is in line with the requirements of lecturer capture and remote interactive teaching.

Adopting advanced ISP technologies and algorithms, enable the HD100T capture vivid image quality, screen brightness uniformity, strong sense of depth, high-definition, and fantastic colour rendition. The HD100T a stable, reliable and simple machine to operate, it has many functions and bosts high performance.

Also it is easy to install and maintain

Specifications

Specifications for APT AV Education Intelligent Auto-tracking Camera - HDMI/U3

Optical Zoom	12X or 20X
Brand	APT AV
Product Type	Auto Tracking PTZ

Key Features

1. Integrated design:

Built-in panoramic camera, to achieve an integrated fusion of panoramic camera and tracking camera.

2. Advanced tracking algorithms:

The use of advanced human detection, locking and tracking image processing, analysis algorithm to ensure the target tracking steady, accurate and fast.

3. Strong anti-interference ability:

Once the tracking target is locked, not affected by the disturbances of other moving objects and projectors etc.

4. Smooth tracking:

The sensitivity of action can be adjusted. Tracking target’s small movement or gestures will not cause camera’s misoperation.

5. Full-frame image recognition:

Image detection is performed on each frame of the picture, and the image recognition sensitivity is high. In a complex environment, People and background can be accurately distinguished and tracked. When there are multiple moving targets, it can still track target accurately, and the target loss rate is extremely low.

6. Video image auto adaptation:

Based on the distance of tracking target, the tracking camera will automatically zoom and the video image will always maintain the appropriate size and proportion.

7. Strong environmental adaptability:

The tracking performance is not affected by classroom’s size, shape and seating arrangement.

8. Wide-range, Quiet and Quick Pan/Tilt Mechanism
Using step driving motor mechanism, UV100T camera works extremely quiet and moves smoothly without any noises.

Technical Specifications

Model	HD100T-12	HD100T-20
Intelligent Dual-lens Auto Tracking Camera
Optical Zoom	12X f＝3.9～46.8mm	20X f＝5.5～110mm
Viewing Angle	6.3°（N）～72.5°（W）	3.3°（N）～54.7°（W）
Iris Value	F1.8～F2.4	F1.6 ～ F3.5
Image Sensor	1/2.8 inch high quality CMOS sensor	1/2.8 inch high quality CMOS sensor
Effective Pixel	2.07M 16：9	2.07M 16：9
Video Signal	HDMI

Digital Zoom	10X
Back Panel	2xLAN、RS232、A-IN HDMIU3：2xUSB3.0、2xHDMI、2xLAN、RS232、A-IN
Accessory	12V/2.5A power supply, RS232 cable, remote control, user manual

Specifications

Optical Zoom	12X or 20X
Brand	APT AV
Product Type	Auto Tracking PTZ

APT AV Education Intelligent Auto-tracking Camera - HDMI/U3

$ 0.00 0.0 AUD $ 2,315.01

$ 2,104.55
