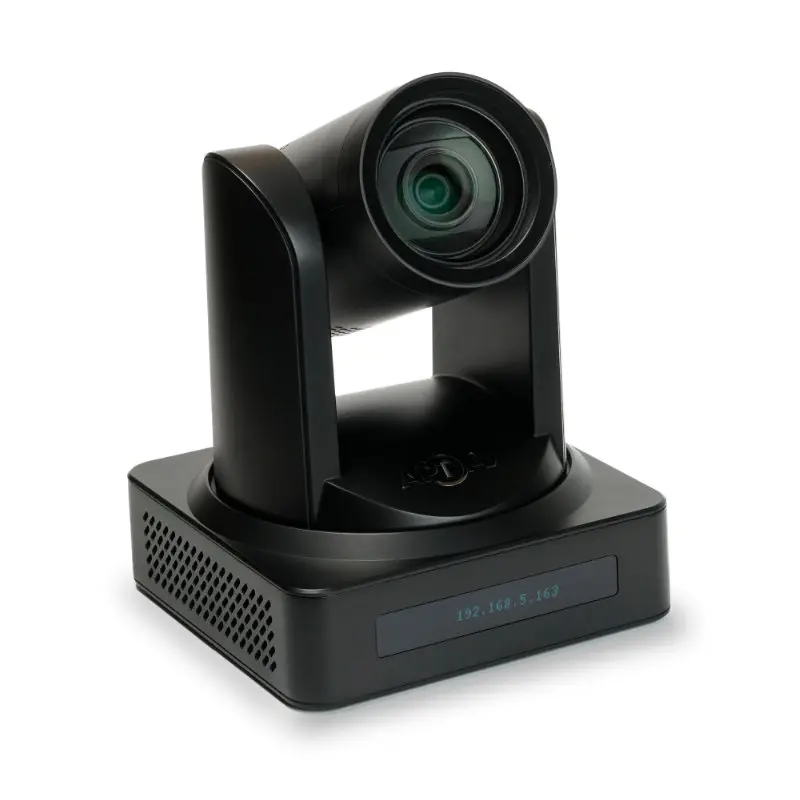

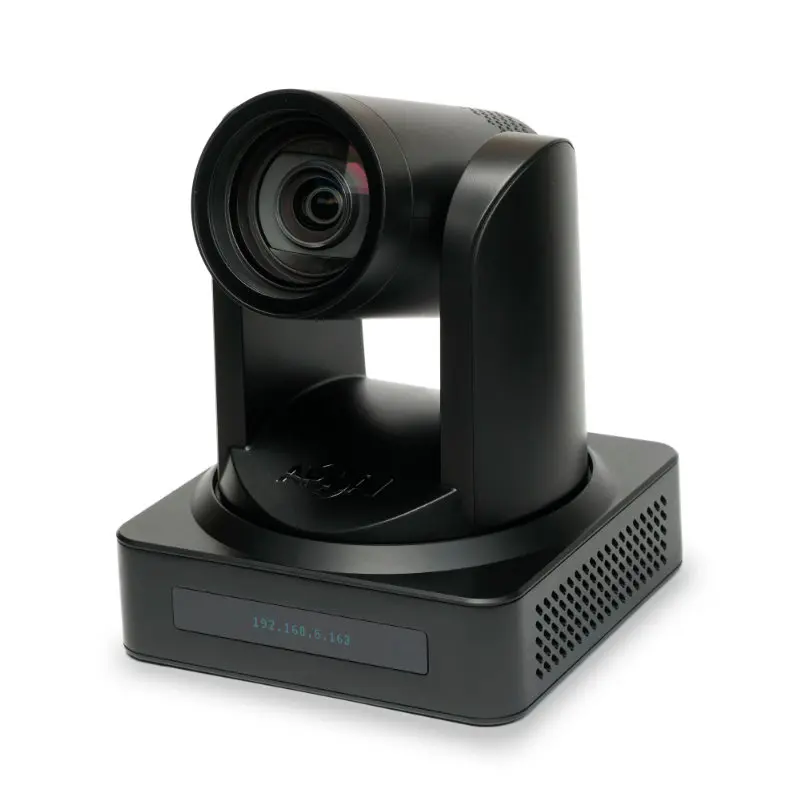

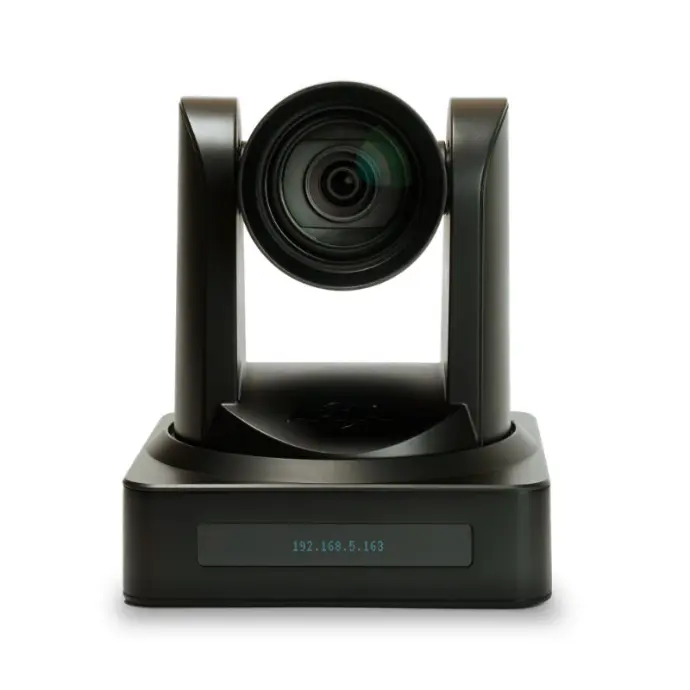

APT AV HD510G Full HD PTZ Camera
Professional performance. Unmatched Versatility
The versatile answer for professional PTZ camera installations
The APT AV 510 Series is engineered as the ultimate one-stop solution for professional AV. Built around a high-performance camera system, it suits virtually any professional application.
The model range delivers with options that span image resolution, lens magnification, and NDI HX3®. Its configuration flexibility extends to connectivity and AV protocols, ensuring readiness for future technological advancements. Plus, every model has advanced technology and features that deliver professional-standard performance and control to every setup.
The New Standard in Professional PTZ Camera Solutions Building on the legacy of the acclaimed HD570, the APT AV 510 Series sets a new benchmark for professional PTZ camera installations. Designed for demanding environments where reliability, image quality, and integration flexibility are paramount, the 510 Series delivers exceptional performance for justice, education, live events, corporate, and government applications.
Crystal-Clear Imaging – FHD and 4K Options
Choose Full HD or choose Ultra HD (4K) for projects demanding the highest level of detail and future-proof image quality. The low-noise CMOS sensor ensures a super-high signal-to-noise ratio for video. Advanced 2D and 3D noise reduction technologies further reduce noise while maintaining image clarity.
Select the resolution that fits your project:
● Full HD (FHD) models feature a 1/2.8-inch, 2.07-megapixel CMOS sensor that deliver crisp 1080p video at up to 60fps.
● Ultra HD (4K) models employ an 8.42-megapixel sensor for projects demang the highest resolution, with true 4K (3840x2160) at 60fps.
Professional Lens Choices
Whether you need ultra-wide coverage or powerful telephoto reach, the 510 Series is designed to adapt to your needs. Its comprehensive range of optical zoom options, 12X Wide-Angle, 20X, and 30X Super-Tele, allows precise framing from ultra-wide to long-range headshots. Whether capturing courtroom proceedings, lecture halls, auditoriums, or boardrooms, the 510 Series can be tailored to any space or budget.
NDI HX3® and Advanced Network Integration
With SRT, RTMP, ONVIF, and more, plus the option of NDI HX3®, the 510 Series seamlessly integrates into any AV-over-IP or traditional infrastructure environment, supporting current and next- generation workflows.
NDI HX3® unlocks broadcast-quality, low-latency video over standard IP networks, simplifying cabling and enabling seamless integration with modern AV-over-IP workflows. The 510 Series further streamlines installation with power over Ethernet (PoE+), reducing the need for additional power supplies.
Comprehensive Connectivity and Control
Extensive configuration options, including multiple video outputs, audio integration, and advanced control protocols, ensure the 510 Series can be tailored to the precise needs of any professional installation.

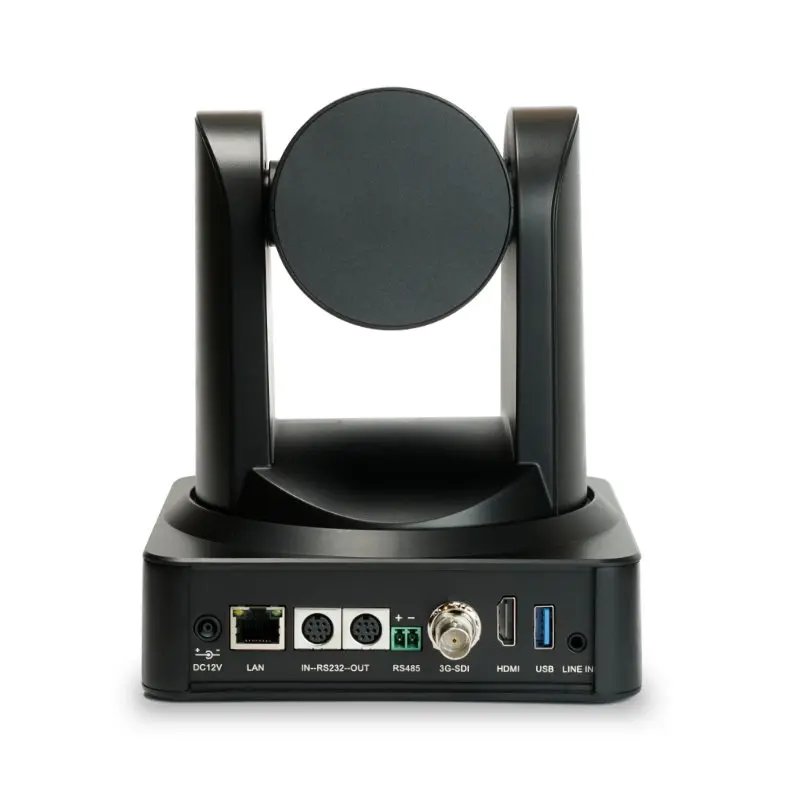

● Video Outputs: HDMI, SDI (up to 100m transmission at 1080p60), USB 3.0, and LAN.
● Audio: Dual-channel 3.5mm input, with AAC and G.711A encoding.
● Control Interfaces: RS232 (with cascading), RS485, and network VISCA, PELCO-D, and PELCO-P protocols with auto-detection.
● Remote Management: Configure, upgrade, and control cameras remotely for efficient system management.
● Front Panel Display: Displays output resolution and IP address.
AI-Powered Auto-Tracking and Framing
Empower presenters and automate production with advanced AI tracking. Integrated face and human-shape recognition algorithms enable real-time, stage and area tracking, and intelligent framing. Combined with advanced autofocus algorithms, automatic control over image framing and focus at the highest quality, makes the 510 series ideal for lecture capture and dynamic event environments.
Silent, Precise PTZ Operation
High-precision stepper motors and advanced drive controllers ensure smooth, virtually silent pan, tilt, and zoom movements. The 510 Series supports up to 255 preset positions, enabling rapid, repeatable camera moves for multi-scene environments.
Multiple Video and Audio Compression Standards
The 510 Series' choice of compression standards delivers high-quality video and audio while minimising bandwidth and storage requirements, ensuring compatibility with a wide range of professional AV, streaming, and recording systems.
All 510 models support H.265 and H.264 video compression. H264 provides universal compatibility, while H.265, also known as HEVC, reduces video file sizes while delivering better image quality at any given bit rate. H.265 is ideal for 4K, and where competing network traffic can impact maximum throughput speeds.
AAC and G.711A audio compression also deliver a choice of standards that provide broad support, excellent sound quality and low-latency.
Engineered for Demanding Conditions
● Robust Build: Compact, stylish, and built for reliability in 24/7 applications.
● Flexible Installation: Suitable for ceiling, wall, or tripod mounting.
● Wide Operating Range: Performs in temperatures from -10°C to +50°C and humidity up to 80%.
Extensive Application Possibilities
The versatility of the APT AV UHD510 and HD510 make it a perfect choice for applications across justice, education, live events, corporate and government. One camera series with infinite possibilities.
