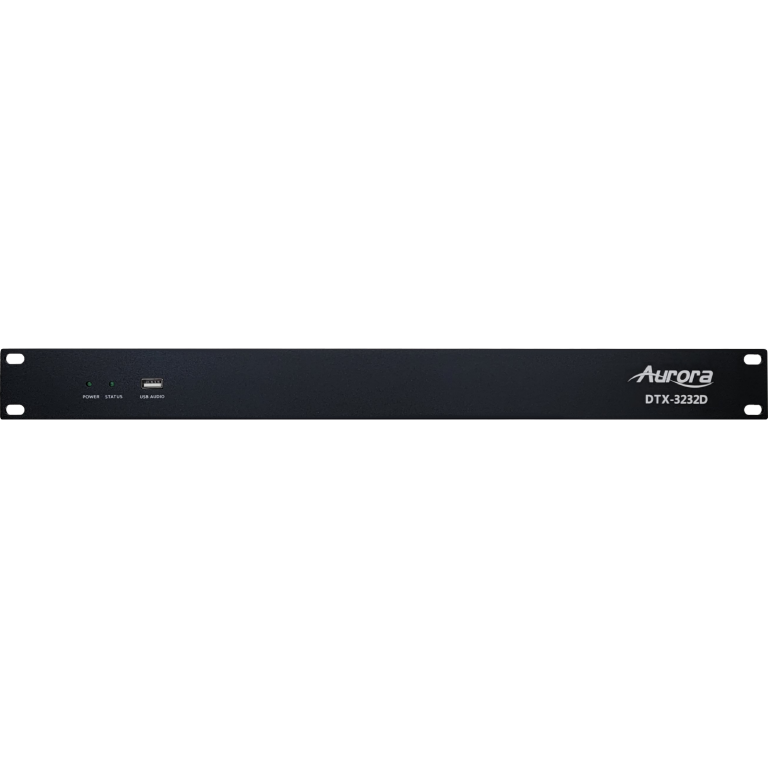

Aurora 32x32 all-digital Dante DSP
This product is no longer available.
Features
- ADI SHARC 21489 processor
- 2 Dante audio interfaces on RJ-45 connectors
- 8 GPI/O multi-function ports on Terminal Block connectors
- Dante audio channels up to 32×32
- Defnable GUI for managing and confgurating multiple units
- All Inputs and Outputs support a full suite of audio shaping tools including graphic and parametric EQ, dynamics, ducker, delay and more
- 16 preset slots to store all configuration data for easy recall
- Built-in USB sound card for recording and playing digital audio
- DSP Confgurator software tool for managing all audio operations
- Supports adaptive echo cancellation (AEC), adaptive feedback control (AFC), automatic gain control (AGC), automatic mixture control (AMC), automatic noise suppression (ANS)
| ADSP | ADI SHARC 21489 (×2) |
| Audio Format | 24 bits, 48 kHz sampling rates (uncompressed) |
| System Latency | < 6 ms |
| Analog I/O Channels | N/A |
| Dante I/O Channels | 32×32 |
| Analog Input Gain | N/A |
| Analog Input Level | N/A |
| Analog Output Level | N/A |
| Frequency Response | ±0 2 dB (20 Hz to 20 kHz) |
| THD+N | < 0 003% (1 kHz, +4 dBu) |
| Common Mode Rejection Ration | 80 dB (60 Hz) |
| SNR | 110 dB |
| Analog Dynamic Range | N/A |
| Dante Dynamic Range | 115 dB |
| Analog Background Noise | N/A |
| Dante Background Noise | -91 dBu (A-weighted) |
| Channel Isolation | 108 dB (1 kHz) |
| Input Impedance | 9 4k ohms (Balanced) |
| Output Impedance | 102 ohms (Balanced) |
Interface
| Input Port | N/A |
| Output Port | N/A |
| Ethernet Port | 2 Dante Audio (RJ-45) 1 LAN (RJ-45) |
| USB Port | 1 USB Audio (Type-A) |
| Serial Port | 1 RS-232 (Terminal Block) 1 RS-485 (Terminal Block) |
| GPI/O Port | 8 GPI/O (Terminal Block) |
Power
| AC Power | 110 to 240 VAC at 50 or 60 Hz |
| AC Adapter | N/A |
| Power Consumption | 15 W |
Enclosure
| Chassis Material | Metal |
| Chassis Color | Black |
| Chassis Dimensions (Hight×Width×Depth) | 45×482×260 mm |
| Chassis Weight | 3 kg |
Environment
| Operating Temperature | +32 to +104 °F (0 to +40 °C) |
| Humidity | 10% to 90% RH (non-condensing) |
Compliance
| Regulatory Compliance | FCC, CCC, CE, RoHS |
About
Aurora's DTX-3232D is a Dante enabled, all digital, audio DSP. This fully networked family of professional audio products is ideal complement to Aurora’s IPX and VPX Video over IP solutions for House of Worship, Bars and Restaurants, Conferencing, and Education markets. The DTX ecosystem of products are purpose built to deliver pristine audio throughout the network while significantly reducing traditional device count and cabling costs.
DTX products use the industry-leading ADI 450Mhz SHARC 21489 chip and provides outstanding 24bit/48kHz audio quality. The series has the best 5A DSP algorithms in the industry including
- AFC (Adaptive Feedback Control)
- AEC (Acoustic Echo Cancellation)
- ANS (Automatic Noise Suppression)
- ANC (Ambient Noise Compensation)
- AGC (Automatic Gain Control)
- Gain Sharing AutoMix
The DTX-3232D is a power packed DSP which features 32x32 Dante I/O. It is perfect for medium to large applications where no analog I/O is needed.
Applications include:
- Higher Education
- Bar or restaurant
- Large or complex conference rooms
Dante® is a registered trademark of Audinate Pty Ltd.
