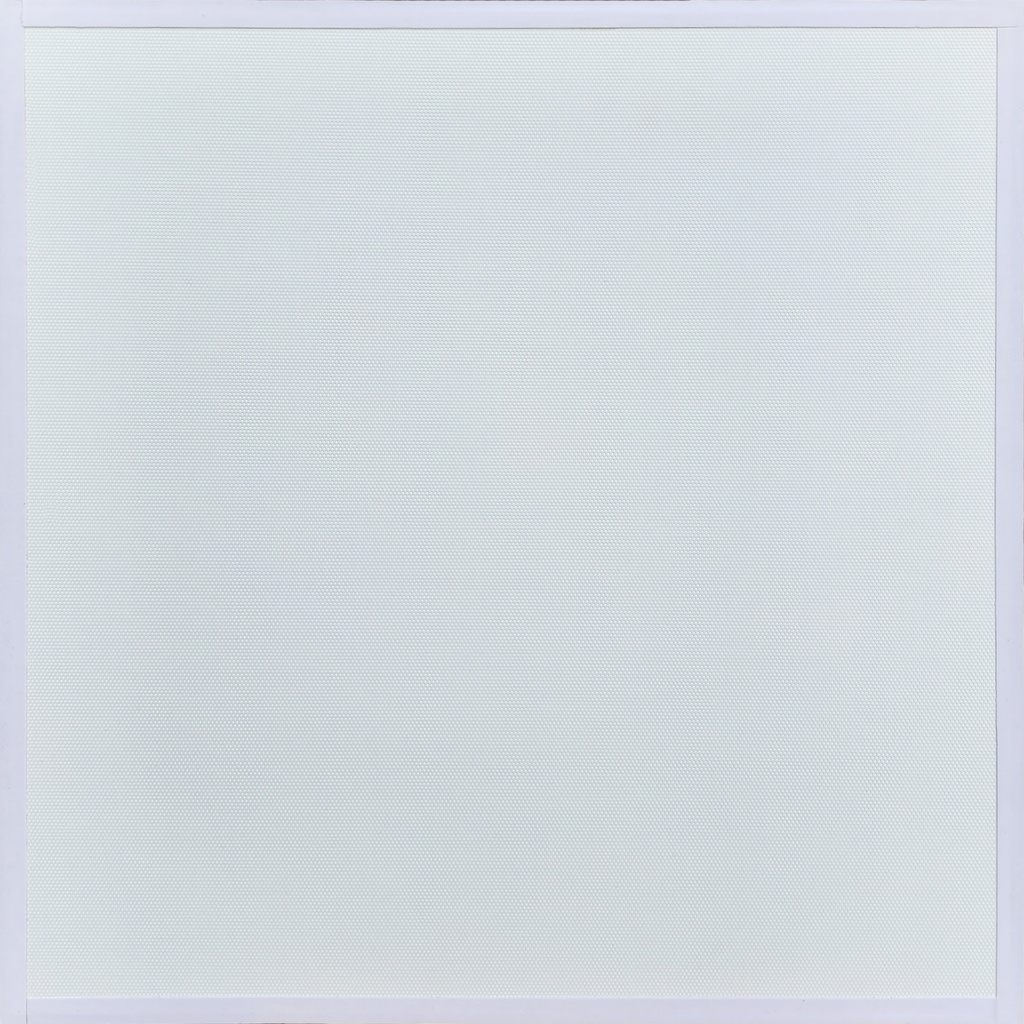

Aurora 2x2ft (600mmx600mm) Ceiling Tile Mounted Speaker

This product is no longer available.

SKU: SKR-22T-XFR
Brand: Aurora Multimedia
Days
:
Hours
:
Mins
:
Secs
  • 25 Watts RMS
  • Fits in Standard 2’ x 2’ Drop Ceiling Grid
  • Frequency Response: 50Hz – 15KHz +/-10dB
  • 8 Ohm & 70v/100v • 180 Degree Coverage
  • UL94V-0 Rated Materials • Patented Technology
  • Low Cost and Simplified Installation
  • Internal Auto Resettable Fuse Protection
  • Dimensions: 23-3/4 x 23-3/4 x 2-3/32 (60.3 x 60.3 x 5.3)
  • Weight 3lb 6.4oz(1.54kg)
Model Name SKR-22T-XFR
Technical
Nominal Size23-3/4 x 23-3/4 x 2-3/32 (60.3 x 60.3 x 5.3)
Normal Impedance8 Ω + 15%
Resonant FrequencyF0:60Hz+20%
Output SPL90dB@1W/1M (At 400,500,1KHz)
Frequency Response55Hz~20KHz ±6dB
Speaker Power25W (RMS)
Weight3lb 6.4oz(1.54kg)
Load TestIEC 268-5 8.94V/Channel 24HR
Sound Dispersion180o Vertical/360o Horizontal
Environmental Test
High Temperature60o C + 2o C
Relative Humidity60o C + 2o C
Humidity90% 24 Hours
Low Temperature-20o C + 2o C 24 Hours
Drop Test600 ± 25mm 60° ± 5°



The SKR-22T-XFR is the latest speaker innovation from Aurora. This lightweight speaker delivers clear sound with fidelity not normally found on typical ceiling speakers. Its ability to reproduce 180-degree sound field allows the use of only one speaker in a room for mono operation. Installation is quick, less costly, and less messy as there is no cutting of ceiling tiles or back boxes to mount. Just drop the tile into a 2x2 ceiling grid, connect the speaker wire and you are done. For 4x2 ceiling grids, all that is required is to cut the tile in half and add a standard ceiling divider.

With full range of audio, not only do presenters sound clear and crisp, but the presentation material is produced without missing the lows or the highs compared to the typical 5” to 6” round ceiling speakers.
Add a 25-watt PoE+ Dante amplifier using the Aurora DTX-AMP25-M to further complete the room audio solution. The DTX-AMP25-M can also take Line in for analog systems as well.

Once again, Aurora is setting the standard in low-cost high-end solutions.
