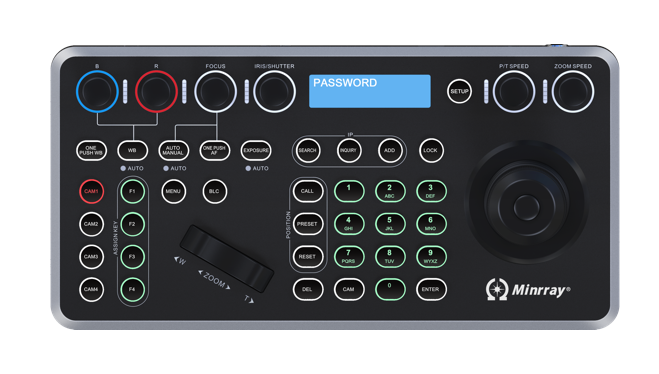

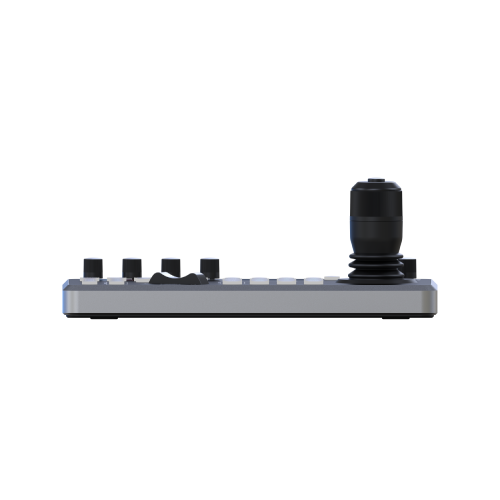

APT AV PTZ Camera Controller

  • Brand
  • Product Type
Price

Contact Us
Brand: APT AV
Product Type: Camera Contoller
SKU: CC030
Brand: APT AV
Days
:
Hours
:
Mins
:
Secs



Specification

CC030

Communication Method

Network: RJ45，Serial port：RS422, RS485, RS232

Communication Protocols

Network：ONVIF，IP VISCA, SONY  VISCA OVER IP, NDI；

Serial Port：VISCA, PELCO-D, PELCO-P

Communication Baud rate

2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 115200bps

Interfaces

5PIN crimping terminal (RS422, RS485), RJ45 (RS232/RS485/RS422), RJ45 (network), 8PIN Phoenix terminal (TALLY)

Joystick

4 dimensions

Display

LCD blue screen

Power Supply

DC12V1A±10%

Power Consumption

6W MAX

Working Temperature

0℃～50℃

Storage Temperature

-20℃～70℃

Humidity

≦90%RH(No frosting)

Dimension

270mm（L）X135mm（W）X110mm(H)

Update Method

WEB update



  1. Support network and stimulation control methods.
  2.  Support VISCA, ONVIF, PELCO-P, PELCO-D and NDI protocols, and fully compatible with VISCA.
  3. Adopting four-dimensional rocker, and the texture is comfortable. Twisting the rocker can directly control the camera in all directions.
  4.  The camera lens can be zoomed in and out, and the sensitivity of joystick control can determine the Zoom, pand and tilt speed. I
  5.  This controller provides four instant access to control cameras and 255 cameras can be quickly switched through a simple tap.
  6. Camera exposure, aperture, white balance, focus, backlight compensation, OSD menu, can be adjusted through this controller.
  7. Support Power over Ethernet. Power supply and control can be conducted simply through one network cable, making the wiring simpler.
  8. Security protection: with password and Kensington lock protection to prevent illegal operations and settings, protect the security of the device

Th CC030 camera controller has brand new design and adopts metallic panel with frosted film upper shell and CNC oxidation lower shell.
The adoption of industrial-grade LED module make the display excellent and the character clear. This controller support VISCA, ONVIF, PELCO, and NDI protocols, it fully compatible with VISCA with powerful extension. The web client terminal makes the configuration interface simple and clear.
