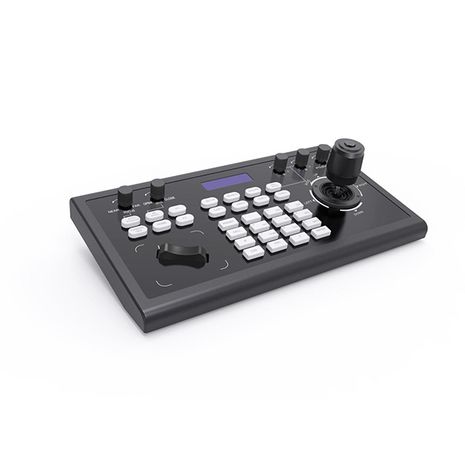

APT AV 2000 Budget PTZ Camera Controller
https://www.aptech.com.au/shop/cc2000-apt-av-2000-budget-ptz-camera-controller-393 https://www.aptech.com.au/web/image/product.template/393/image_1920?unique=816f8a7
KBD2000 KEYBOARD OR JOYSTICK FOR CONTROLLING PTZ CAMERA
KBD2000, a network(IP Based) PTZ camera controller, is fully compatible with many PTZ camera coding protocols from the main manufacturers in the market, supporting ONVIF, VISCA, Serial port VISCA, PELCO-D/P protocols and etc. This compact camera controller features a high-quality joystick that allows variable speed control, as well as fast camera switching, quick-set camera parameters and so on. The industrial-grade blue screen LCD module has excellent display effect with fine and clear characters.
|
|
- Extends HDMI, RS-232, analog audio, and IR, using a Gigabit Local Area Network
- Independent video, RS-232, IR, and audio routing**
- Backward-compatible with first generation Gefen AV over IP products
- Supports input resolutions up to 4K 60Hz 4:2:0
- Supports output resolutions up to 4K 30Hz 4:4:4
- Supported HDMI Features:
- HDR
- HDCP 2.2 and 1.4
- Deep Color
- Lip-Sync
- Uncompressed LPCM digital audio up to 7.1 channels
- Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
- When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA)
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Built-in video wall controller accommodates any number of rows and columns up to 16×16 Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution sy(more…)
Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking
Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Receiver): (1) 3.5mm mini-stereo jack
Optical Digital Audio Output (Receiver): (1) TOSLINK®
RS-232 port (Sender/Receiver): (1) 3.5mm stereo jack, female, DB-9 adaptor included
IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
IR Extender type: EXT-RMT-EXTIRN
Ethernet port (Sender): (1) RJ-45, shielded, PoE
Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE
Channel Up button (Receiver): (1) tact-type
Channel Down button (Receiver): (1) tact-type
Mode button (Sender): (1) tact-type, recessed
Reset button (Sender/Receiver): (1) tact-type, recessed
Program button (Sender/Receiver): (1) tact-type, recessed
Program Select switch (Sender/Receiver): (1) slide-type, recessed
Link Indicator (Sender/Receiver): (1) LED, green
Power Indicator (Sender/Receiver): (1) LED, blue
Power Supply jack (Sender/Receiver): 5V DC, 2.5mm pin and 5.5mm barrel, locking
Power Requirement (Sender/Receiver): 5V DC, or Po(more…)
Parameter / Model | KBD2000 |
---|---|
Port | Network: RJ45.Serial Port: RS422, RS232 |
Protocol | Network : ONVIF, VISCA Serial Port: VISCA, PELCO‐D, PELCO‐P |
Communication BPS | 2400bps, 4800bps, 9600bps, 19200bps, 38400, 115200 |
Interface | 5PIN, RS232, RJ45 |
Joystick | 4D(up, down, left, right, zoom, lock) |
Display | LCD Blue Screen |
prompt tone | ON/OFF |
Power Supply | DC12V±10% |
Power Consumption | 6W MAX |
Working Temperature | ‐10°C~50°C |
Storage Temperature | ‐20°C~70°C |
Environment humidity | ≦90%RH (nodew) |
Dimensions(mm) | 320mm(L)X179.3mm(W)X109.9mm(H) |
Upgrade | WEB Upgrading |

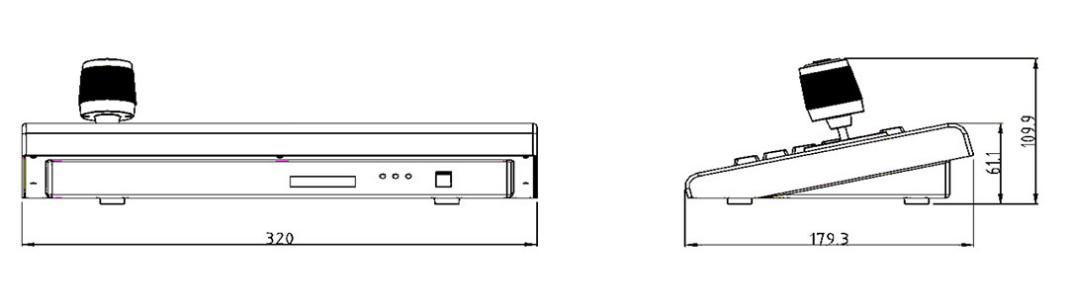

Dimensions (unit:mm)
IP PTZ Camera Controller
3 year product warranty
Please see the Gefen warranty page for more details
Gefen EXT-CU-LAN Datasheet
Gefen EXT-CU-LAN Manual
Gefen EXT-CU-LAN Declaration of Conformity1
Specifications for APT AV 2000 Budget PTZ Camera Controller
Brand | APT AV |
Product Type | Camera Contoller |
