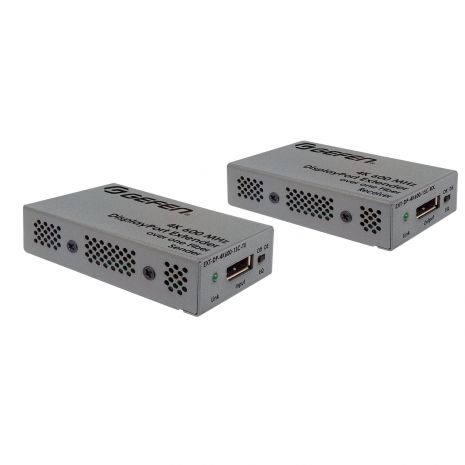

Gefen’s EXT-DP-4K600-1SC DisplayPort 1.2-compliant fiber optic extender
is a compact and high performance solution for extending HDCP 2.2, HDCP
1.4, and DPCP compliant DisplayPort 600 MHz 4K audio/video over fiber. .

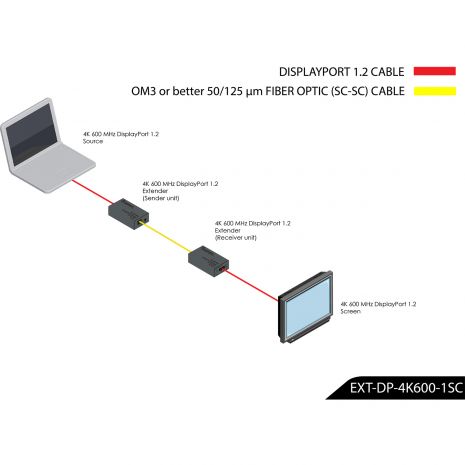

The AV signal can be extended up to 200m (660ft), over a single strand
of SC-terminated 50/125 um OM3 or better multi-mode fiber-optic cable.
There is full electrical isolation between the Sender and the Receiver,
meeting the stringent safety and EMC requirements for critical
applications. The EXT-DP-4K600-1SC can be powered from sources and
displays featuring powered USB ports, or by using external power
supplies.

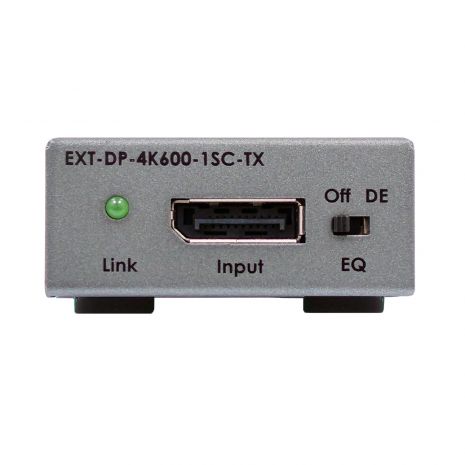

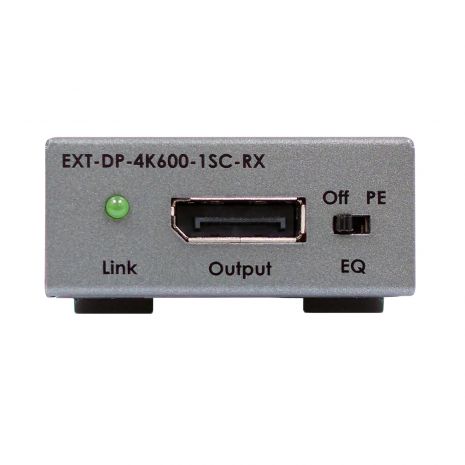

For most applications, the Sender and Receiver are plug-and-play and will work without any set-up. In cases where signal optimization becomes necessary due to special requirements of a source and/or a display, both units feature easy-to-use EQ switches. The EXT-DP-4K600- 1SC supports popular and useful DisplayPort technologies such as Multi-streaming (connecting multiple daisy-chained displays to one DisplayPort output) and Auxiliary Channel (transporting data and controls along with the AV signal).
Compact enclosures are easy to install and can be hidden away.
