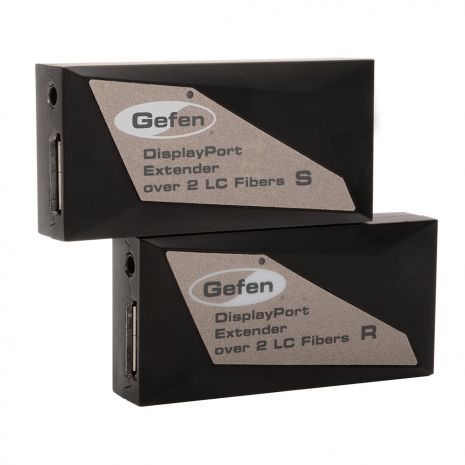

The Gefen EXT-DP-CP-2FO DisplayPort fiber optic Extender
transmitts signal up to 1000 feet (300 meters) using two strands of
50/125 um multi-mode (OM2/OM3) LC-terminated fiber optic cable.
62.5/125 um (OM1) fiber may also be used for a maximum range of up to
500 feet (150 meters).
Compared to similar copper-based solutions, optical signal transmission
provides galvanic isolation and much better resistance to
electromagnetic interference. Sender and Receiver modules feature cast
Aluminum enclosures, providing further immunity to radiated noise.
Female connectors allow optimized lengths of DisplayPort cables to
be used, preventing stress on source and display connectors. This, along
with the compact size of the modules help create a clean and
trouble-free installation by reducing clutter around the connector
panels.
Video Support
Resolutions up to 2560 x 1600 (WQXGA) are supported.
Extends DisplayPort up to 1000 feet (300 meters) over 2 strands of 50/125um multi-mode (OM2/OM3) LC-terminated fiber optic cable
Extends DisplayPort up to 500 feet (150 meters) over 2 strands of 62.5/125um multi-mode (OM1) LC-terminated fiber optic cable
Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)
Compliant with DisplayPort 1.1a standard
Supports Dual-Mode DP (DP++)
Supports auxiliary/l²C channel over fiber
Cast Aluminum enclosures and Fiber optic transmission eliminate susceptibility to electromagnetic interference (EMI)
HDCP and DPCP-compliant
FCC and CE compliant for RFI (radio frequency interference) and EMI (electromagnetic immunity)
Video bandwidth: 10.8Gbps (2.7Gbps per lane, 4 lanes)

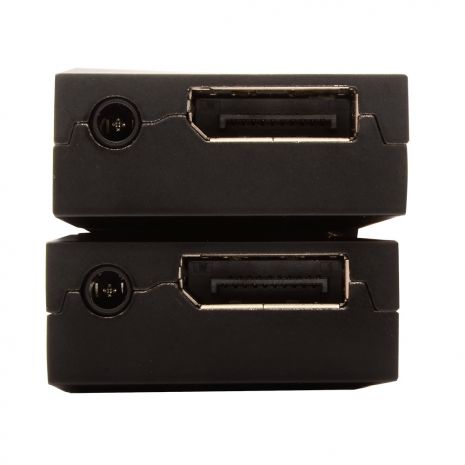

Video Input Connector (Sender): (1) DP-20-pin, female
Video Output Connector (Receiver): (1) DP-20-pin, female

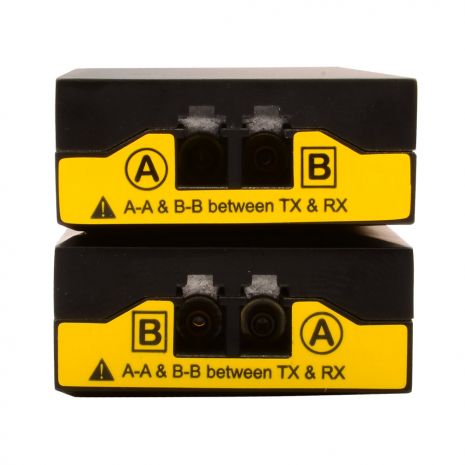

Link Connector (Sender/Receiver): (2) Type LC
Power Supply (Sender/Receiver): 5V DC
Power Consumption (Sender/Receiver): 2.1W max. (each)
Optical Power Budget: 9.4 dB
Operating Temperature: 0° to + 50° C
Storage Temperature: – 30° to + 70° C
Operating Humidity: 10 to 85% RH, non-condensing
Storage Humidity: 5 to 90% RH, non-condensing
Dimensions (W x H x D): 1.4" x 0.6" x 2.8" (35mm x 16mm x 72mm)
Shipping Weight: 1.8 lbs (0.8 kg)
Shipping Info
Length10.1 (Inches)
Width7.9 (Inches)
Height2.7 (Inches)
Weight1.55 (Lbs)
UPC845344058139
Other Specifications
Video bandwidth: 10.8Gbps (2.7Gbps per lane, 4 lanes)
Video Input Connector (Sender): (1) DP-20-pin, female
Video Output Connector (Receiver): (1) DP-20-pin, female
Link Connector (Sender/Receiver): (2) Type LC
Power Supply (Sender/Receiver): 5V DC
Power Consumption (Sender/Receiver): 2.1W max. (each)
Optical Power Budget: 9.4 dB
Operating Temperature: 0° to + 50° C
Storage Temperature: – 30° to + 70° C
Operating Humidity: 10 to 85% RH, non-condensing
Storage Humidity: 5 to 90% RH, non-condensing
Dimensions (W x H x D): 1.4" x 0.6" x 2.8" (35mm x 16mm x 72mm)
Shipping Weight: 1.8 lbs (0.8 kg)
In The Box
DisplayPort Extender over 2 LC Fibers (Sender Module)(1)
DisplayPort Extender over 2 LC Fibers (Receiver Module)(1)
