Gefen DisplayPort Extender over one SC Fiber-Optic Cables

• Extends DisplayPort up to 3300 feet (1000 meters) over a single-strand of 50/125um multimode (OM2/OM3) SC-terminated fiber optic cable
• Supports 1080p Full HD at 120Hz and dual-link resolutions up to 2560 x 1600 (WQXGA)
• Compliant with DisplayPort 1.1 standard
• Fiber optic transmission eliminates electromagnetic interference (EMI)
• Pigtail design relieves stress and clutter on the source and display connector panels
• HDCP and DPCP compliant
• DDC bi-directional support
• Compact Sender and Receiver modules provide a clean, easy installation
• FCC and CE compliant for EMI/RFI emission

Video bandwidth: 3.5Gbps/Channel

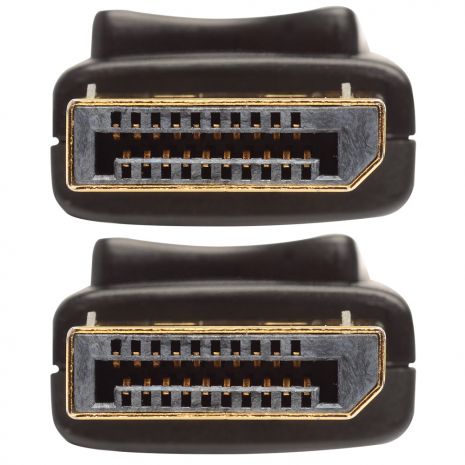

Video Input Connector (Sender): (1) DP-20-pin, male

Video Output Connector (Receiver): (1) DP-20-pin, male

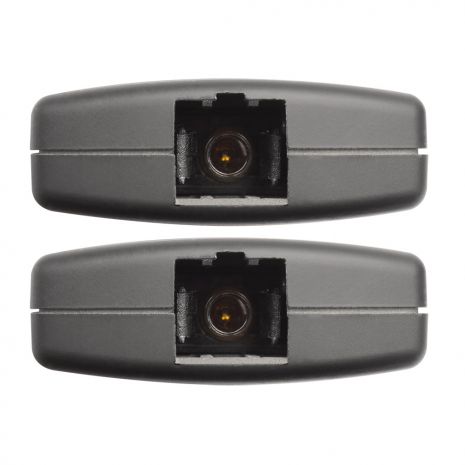

Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125?m )

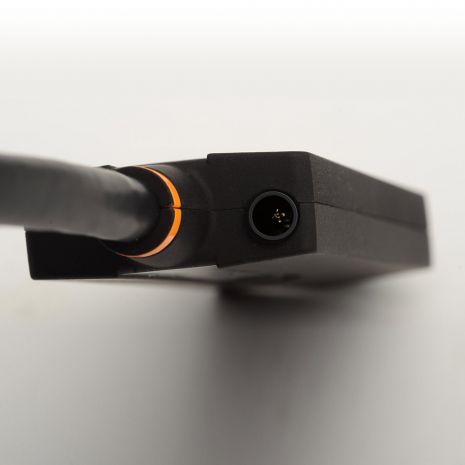

Power Supply (Receiver): 5V DC

Power Supply (Sender): 5V DC (not needed for most applications)

Power Consumption (Receiver): 1.5W (max.)

Operating Temperature: 0° to + 50° C

Storage Temperature: -20° to + 70° C

Relative Humidity: 10 to + 80%

Dimensions (W x H x D): 1.50" x 0.47" x 3.51" (38.10mm x 11.93mm x 89.15mm)

Shipping Weight: 1 lb. (0.45 kg)

Other Specifications

Shipping Info

• Length13.65 (Inches)
• Width7.25 (Inches)
• Height1.75 (Inches)
• Weight1.4 (Lbs)
• UPC845344038391

Other Specifications

• Video bandwidth: 3.5Gbps/Channel
• Video Input Connector (Sender): (1) DP-20-pin, male
• Video Output Connector (Receiver): (1) DP-20-pin, male
• Link Connector (Sender/Receiver): (1) Type SC fiber (50 /125°m )
• Power Supply (Receiver): 5V DC
• Power Supply (Sender): 5V DC (not needed for most applications)
• Power Consumption (Receiver): 1.5W (max.)
• Operating Temperature: 0° to + 50° C
• Storage Temperature: -20° to + 70° C
• Relative Humidity: 10 to + 80%
• Dimensions (W x H x D): 1.50" x 0.47" x 3.51" (38.10mm x 11.93mm x 89.15mm)
• Shipping Weight: 1 lb. (0.45 kg)

In The Box

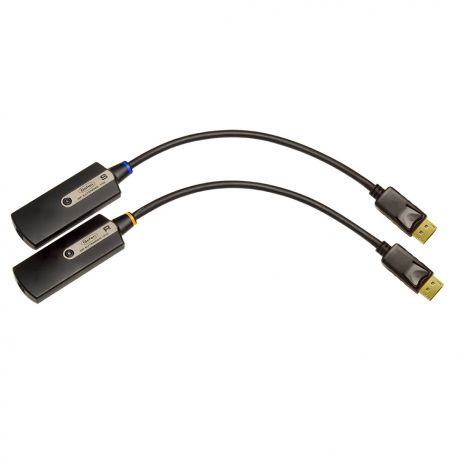

• DP Extender 1FO(Sender Pigtail) (EXT-DP-CP-FM10S)(1)
• DP Extender 1FO(Receiver Pigtail) (EXT-DP-CP-FM10R)(1)
• 5V DC Power Supplies (EXT-PS52AIP-1.3 or EXT-PS52AIP-1.3-6 or EXT-PS52AIP-1.3-6-AL)(2)
  Quick-Start Guide (QSG-DP-CP-FM10)(1)

2 year product warranty

Please see the Gefen warranty page for more details
