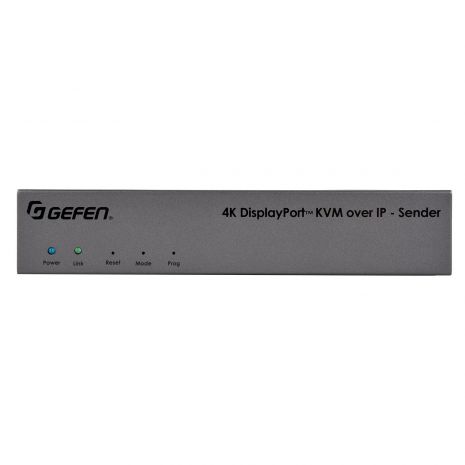

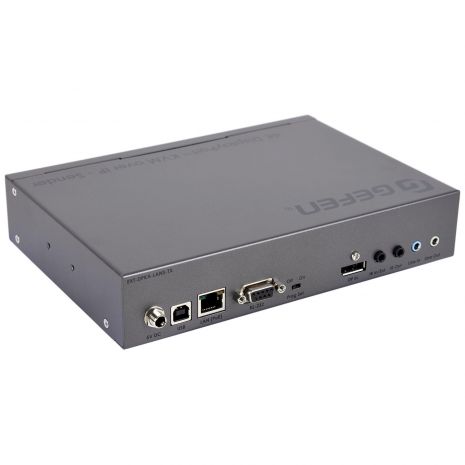

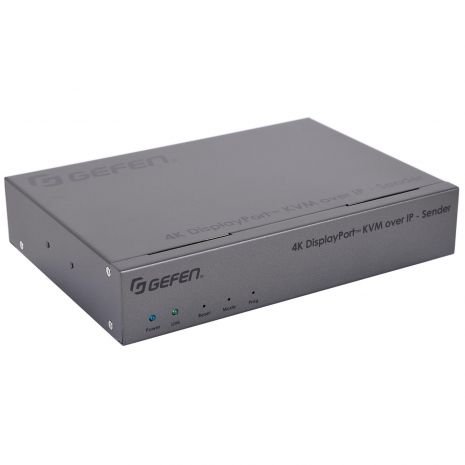

- Gefen 4K DisplayPort KVM over IP - Sender Package
Gefen’s AV over IP solutions continue their tradition of providing
high performance, scalable, expandable, and secure AV routing and
distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM
products offer enhanced performance, features, and functionality such
as 4K Ultra HD with HDR support, built-in scalers, video-wall control,
independent USB, RS-232, IR, and audio routing**, and
backward-compatibility with our first-generation products.
The EXT-DPKA-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported.
USB, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.
The Receiver features a built-in scaler to help optimize the image for a variety of displays and different viewing environments. It also includes a powerful video wall controller that accommodates any screen configuration up to 16×16 and provides great flexibility in sizing

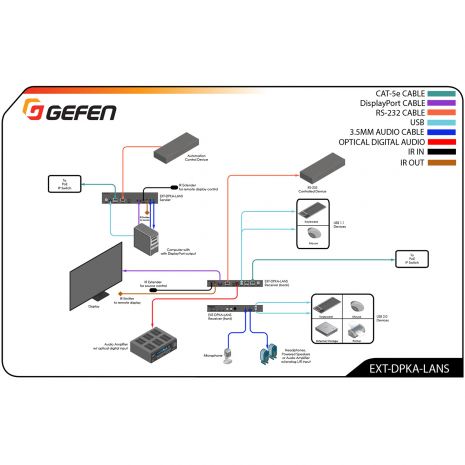

- Extends DisplayPort, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
- Independent video, USB, RS-232, IR, and audio routing (future firmware update)
- Backward-compatible with first generation Gefen AV over IP products
- Supports input resolutions up to 4K 60Hz 4:2:0
- Supports output resolutions up to 4K 30Hz 4:4:4
- Supports HDCP 2.2 and 1.4
- KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Built-in video wall controller accommodates any number of rows and columns up to 16×16
- Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
- MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller
- Enhanced API for added functionality

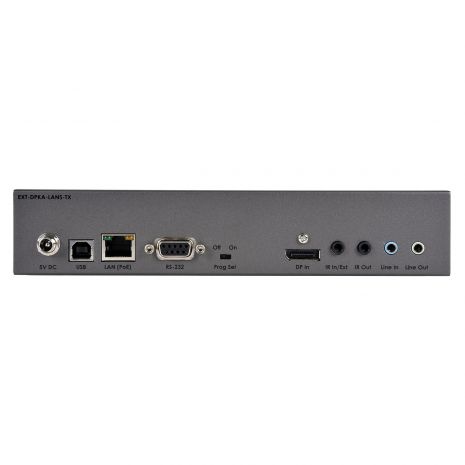

Video Input connector (Sender): (1) DP-20-pin, female
Video Output connector (Receiver): (1) DP-20-pin, female
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Sender): (1) 3.5mm mini-stereo jack
Mic Input (Receiver): (1) 3.5mm mini-stereo jack
Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack
Optical Digital Audio Output (Receiver): (1) TOSLINK®
USB Host Interface port (Sender): (1) USB Type B, female
USB Device ports (Receiver): (2) USB 2.0 Type A, female
: (2) USB 1.1 Type A, female
RS-232 port (Sender): (1) DB-9, female
RS-232 port (Receiver): (1) DB-9, male
IR Sensor (Receiver): (1) Located on front panel
IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
IR Extender type: EXT-RMT-EXTIRN
Ethernet port (Sender): (1) RJ-45, shielded, PoE
Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE
Channel Up/USB-Request button (Receiver): (1) tact-type
Channel Down button (Receiver): (1) tact-type
Mode button (Sender): (1) tact-type, recessed
Reset button (Sender/Receiver): (1) tact-type, recessed
Program button (Sender/Receiver): (1) tact-type, recessed
Shipping Info
- Length13.2 (Inches)
- Width8.1 (Inches)
- Height3.6 (Inches)
- Weight3.3 (Lbs)
- Unit of MeasureEach
- UPC888814999808
- Video Input connector (Sender) (1) DP-20-pin, female
- Video Output connector (Receiver) (1) DP-20-pin, female
- Line Input (Sender) (1) 3.5mm mini-stereo jack
- Line Output (Sender) (1) 3.5mm mini-stereo jack
- Mic Input (Receiver) (1) 3.5mm mini-stereo jack
- Headphones/Line Output (Receiver) (1) 3.5mm mini-stereo jack
- Optical Digital Audio Output (Receiver) (1) TOSLINK®
- USB Host Interface port (Sender) (1) USB Type B, female
- USB Device ports (Receiver) (2) USB 2.0 Type A, female
- (2) USB 1.1 Type A, female
- RS-232 port (Sender) (1) DB-9, female
- RS-232 port (Receiver) (1) DB-9, male
- IR Sensor (Receiver) (1) Located on front panel
- IR In/Ext (Sender/Receiver) (1) 3.5mm mini-stereo jack
- IR Out (Sender/Receiver) (1) 3.5mm mini-mono jack
- IR Extender type EXT-RMT-EXTIRN
- Ethernet port (Sender) (1) RJ-45, shielded, PoE
- Ethernet ports (Receiver) (2) RJ-45, shielded, one with PoE
- Channel Up/USB-Request button (Receiver) (1) tact-type
- Channel Down button (Receiver) (1) tact-type
- Mode button (Sender) (1) tact-type, recessed
- Reset button (Sender/Receiver) (1) tact-type, recessed
- Program button (Sender/Receiver) (1) tact-type, recessed
- Program Select switch (Sender/Receiver) (1) slide-type, recessed
- Link Indicator (Sender/Receiver) (1) LED, green
- Power Indicator (Sender/Receiver) (1) LED, blue
- Power Supply jack (Sender/Receiver) 5V DC, 2.5mm pin and 5.5mm barrel, locking
- Power Requirement (Sender/Receiver) 5V DC, or PoE (802.3af standard)
- Power Consumption Sender: TBD
- Receiver: TBD
- Operating Temperature (Sender/Receiver) +32 to +122°F (0 to +50°C)
- Operating Humidity (Sender/Receiver) 5% to 90% RH, non-condensing
- Storage Temperature (Sender/Receiver) -4 to +185°F (-20 to +85°C)
- Storage Humidity (Sender/Receiver) 0% to 95% RH, non-condensing
- MTBF Sender: 50000 hours
- Receiver: 50000 hours
- Dimensions (W x H x D, without connectors or feet)Sender: 8.4″ x 1.7″ x 5.9″ (214mm x 43mm x 150mm)
- Receiver: 8.4″ x 1.0″ x 5.9″ (214mm x 25mm x 150mm)
- Unit Weight Sender: TBD
- Receiver: TBD
- Shipping Weight Sender: TBD
- Receiver: TBD
- * Features and specifications are subject to change without notice.
- ** Pending features to be activated via an upcoming firmware update
- Sender unit (EXT-DPKA-LANS-TX)1
- 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)1
- Self-Adhesive Rubber Feet4
- L-Shaped Mounting Brackets2
- Machine screws for L-Shaped Mounting Brackets4
- Machine screws for EXT-RACK-1U-GRY (sold separately)2
- Quick-Start Guide1
3 year product warranty
Please see the Gefen warranty page for more details
Gefen EXT-DPKA-LANS-TX Manual
Gefen EXT-DPKA-LANS-TX Datasheet
3 year product warranty
Please see the Gefen warranty page for more details
Gefen EXT-CU-LAN Datasheet
Gefen EXT-CU-LAN Manual
Gefen EXT-CU-LAN Declaration of Conformity1
