Gefen 16x16 DVI Crosspoint Matrix

Switches sixteen computers using DVI to any sixteen displays

This product is no longer available.

SKU: EXT-DVI-16416

Description

Now you can easily combine sixteen cross-platform computers and sixteen digital displays using the Gefen EXT-DVI-16416 16×16 DVI Crosspoint Matrix. The Matrix provides a simple, reliable and highly effective method of routing multiple computer workstations. Each computer is capable of displaying video on any one of the 16 monitors. There are 4 methods of controlling the Matrix – by using the front panel buttons, the included IR remote control, IP control, an RS-232 port for switching automation, and the Gefen Keyboard Controller software.The Gefen Syner-G PC software provides easy firmware updates.

Video Support

Supports video resolutions up to 1920 x 1200

Specifications

Specifications for Gefen 16x16 DVI Crosspoint Matrix

Brand	Gefen
Product Type	Matrix or Splitters or Switchers

Resources

Gefen EXT-DVI-16416 Datasheet

MORE DETAILS

Gefen EXT-DVI-16416 Manual

MORE DETAILS

Features

Supports resolutions up to 1920 x 1200

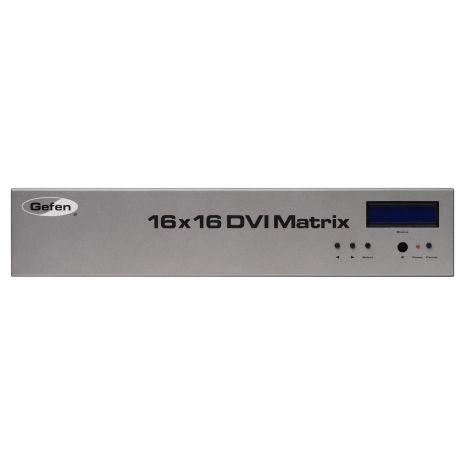

Status LCD (shows routing status)

Advanced EDID management for rapid integration of sources and displays

Compatible with the Gefen Keyboard Controller software

Dynamic EDID support

Easy firmware upgrades using Gefen Syner-G software, downloadable from Gefen website

Serial RS-232 Interface for remote control via a computer or control automation device

IP control

Output masking control

IR remote control

IR Extender

Standby mode

Supports DDWG standards for DVI

Rack mountable

Specifications

Video Amplifier Bandwidth: 165 MHz per channel

Maximum Link Range: 1080p / 1920×1200 (PC)

Input Video Signal: 1.2 Volts p-p

Power Consumption: 60 Watts (max)

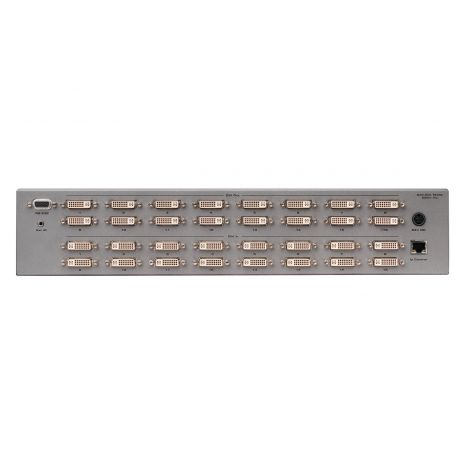

Video Input Connector: (16) DVI-I 29 Pin Female (digital only)

Video Output Connector: (16) DVI-I 29 Pin Female (digital only)

Ethernet Port: RJ-45, shielded

RS-232 Port: (1) DB-9, female

IR Extender Input: 3.5mm mini-stereo jack

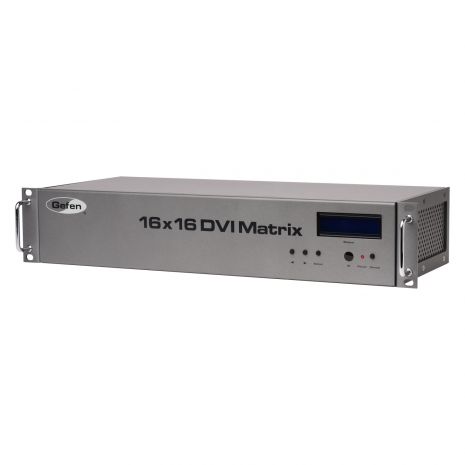

Rack mountable: 2U rack space, rack ears included

Dimensions: 17" W x 7.3" D x 3.5" H

Power Supply: 24V DC

Shipping Weight: 31 lbs.

Other Specifications

Shipping Info

Length22 (Inches)
Width17 (Inches)
Height11 (Inches)
Weight19.5 (Lbs)
UPC845344053066

Other Specifications

Video Amplifier Bandwidth: 165 MHz per channel
Maximum Link Range: 1080p / 1920×1200 (PC)
Input Video Signal: 1.2 Volts p-p
Power Consumption: 60 Watts (max)
Video Input Connector: (16) DVI-I 29 Pin Female (digital only)
Video Output Connector: (16) DVI-I 29 Pin Female (digital only)
Ethernet Port: RJ-45, shielded
RS-232 Port: (1) DB-9, female
IR Extender Input: 3.5mm mini-stereo jack
Rack mountable: 2U rack space, rack ears included
Dimensions: 17" W x 7.3" D x 3.5" H
Power Supply: 24V DC
Shipping Weight: 31 lbs.

In The Box

16 x16 DVI Crosspoint Matrix (EXT-DVI-16416)(1)

6-foot DVI cables (CAB-DVIC-DLN-06MM)(16)

IR remote control (RMT-16416IR)(1)

6 ft. serial RS-232 cable (CAB-DB9-6MF)(1)

24V DC Power Supply (EXT-PS24U8AN)(1)

AC Power Cord (CAB-POWERCORD-XX)(1)

Quick-Start Guide (QSG-DVI-16416)(1)

Specifications

Brand	Gefen
Product Type	Matrix, Splitters, Switchers
