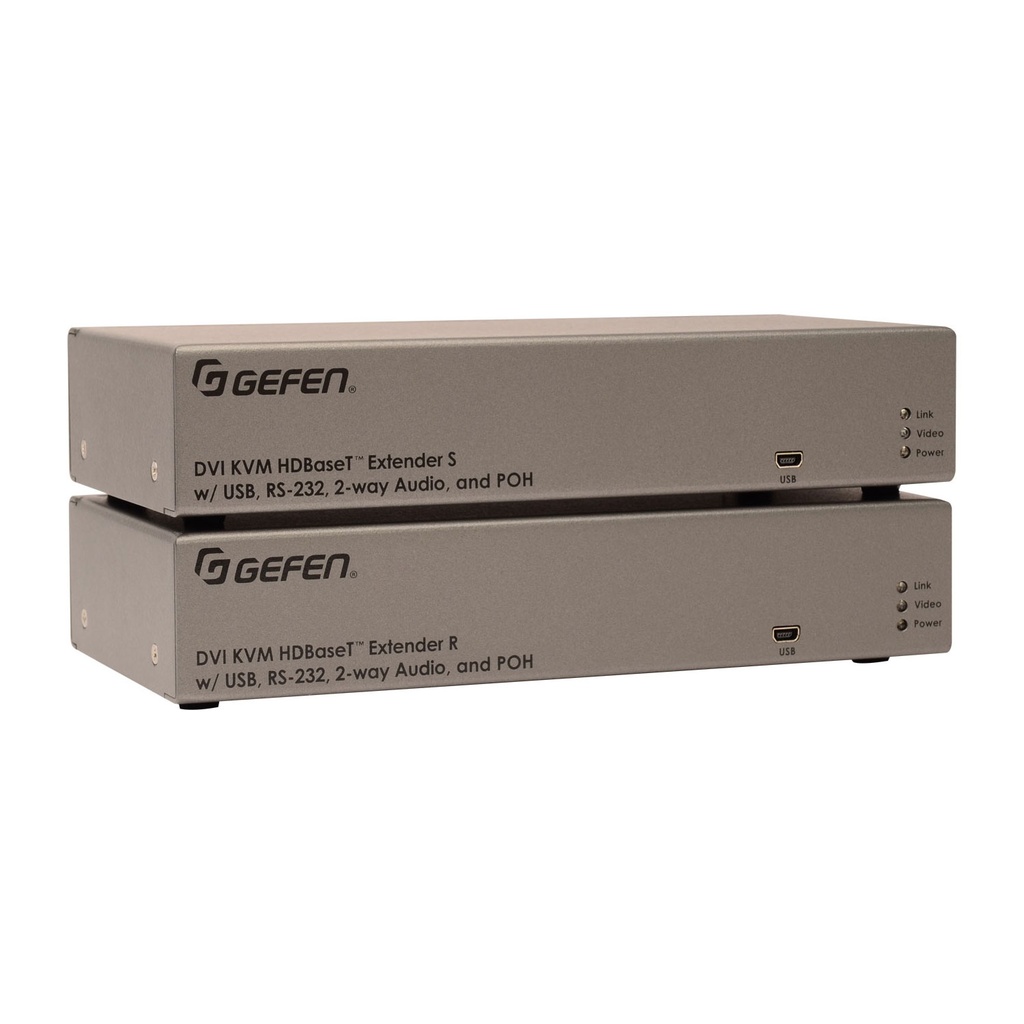

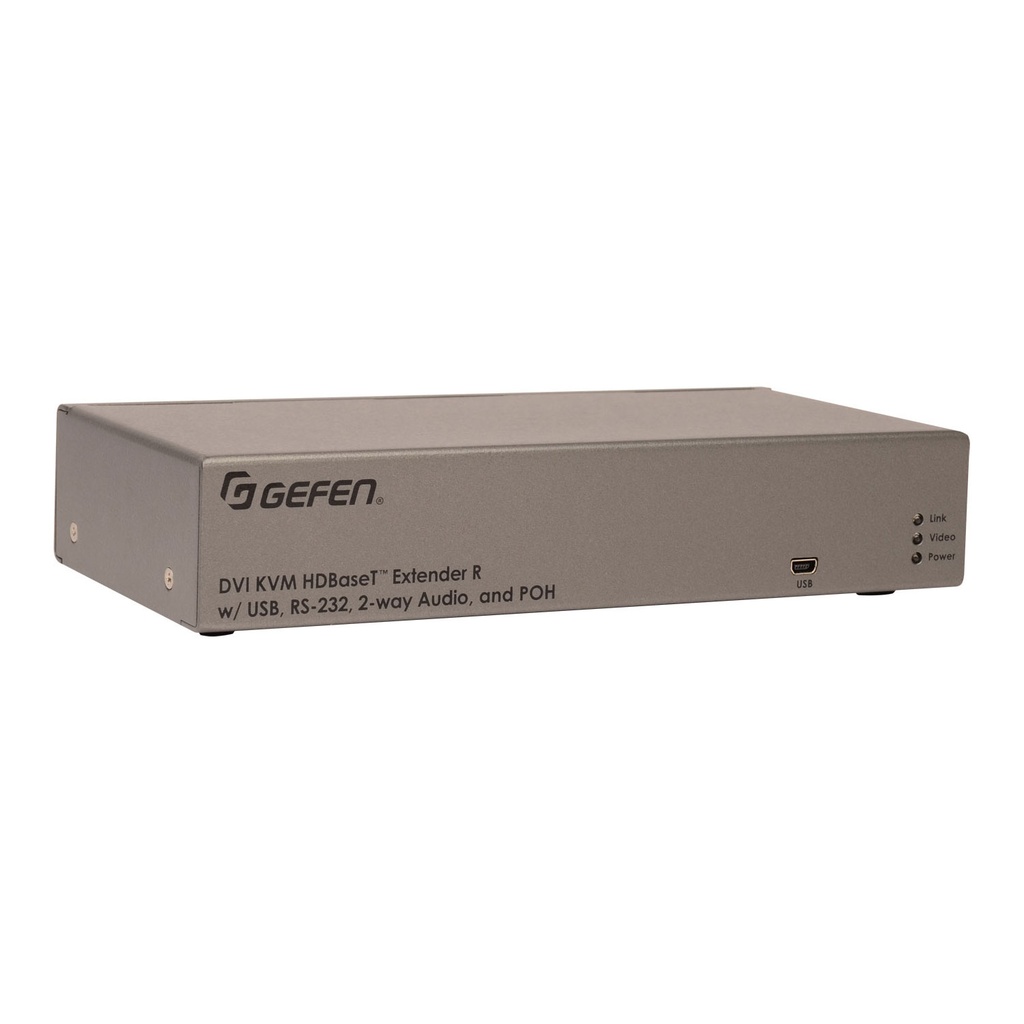

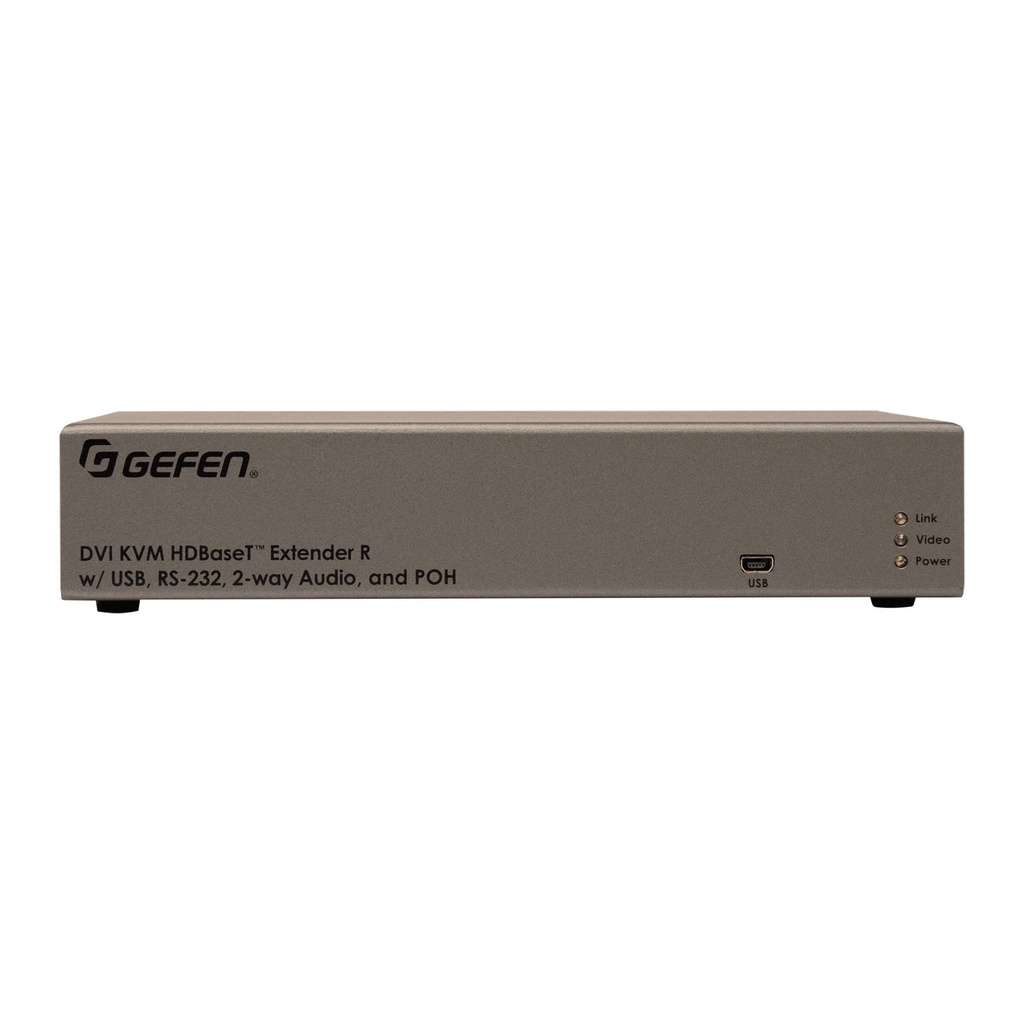

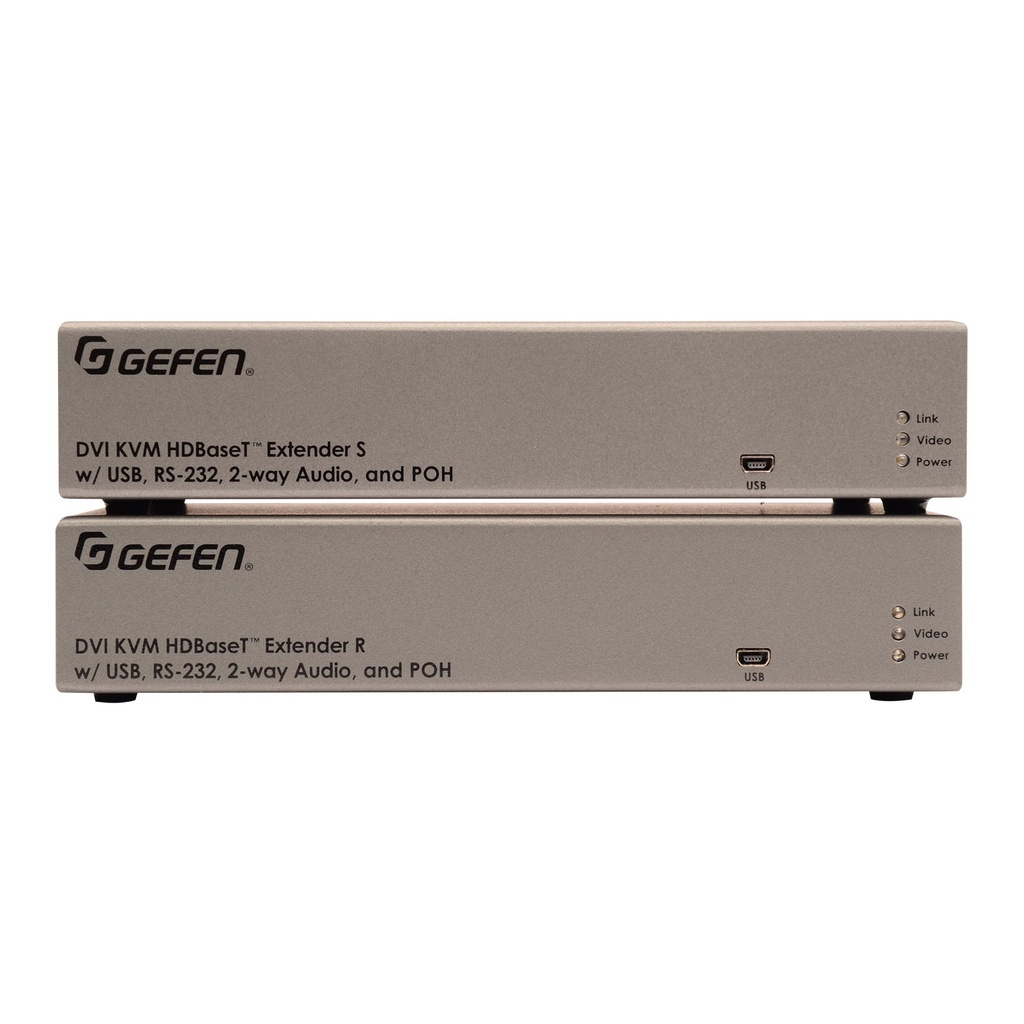

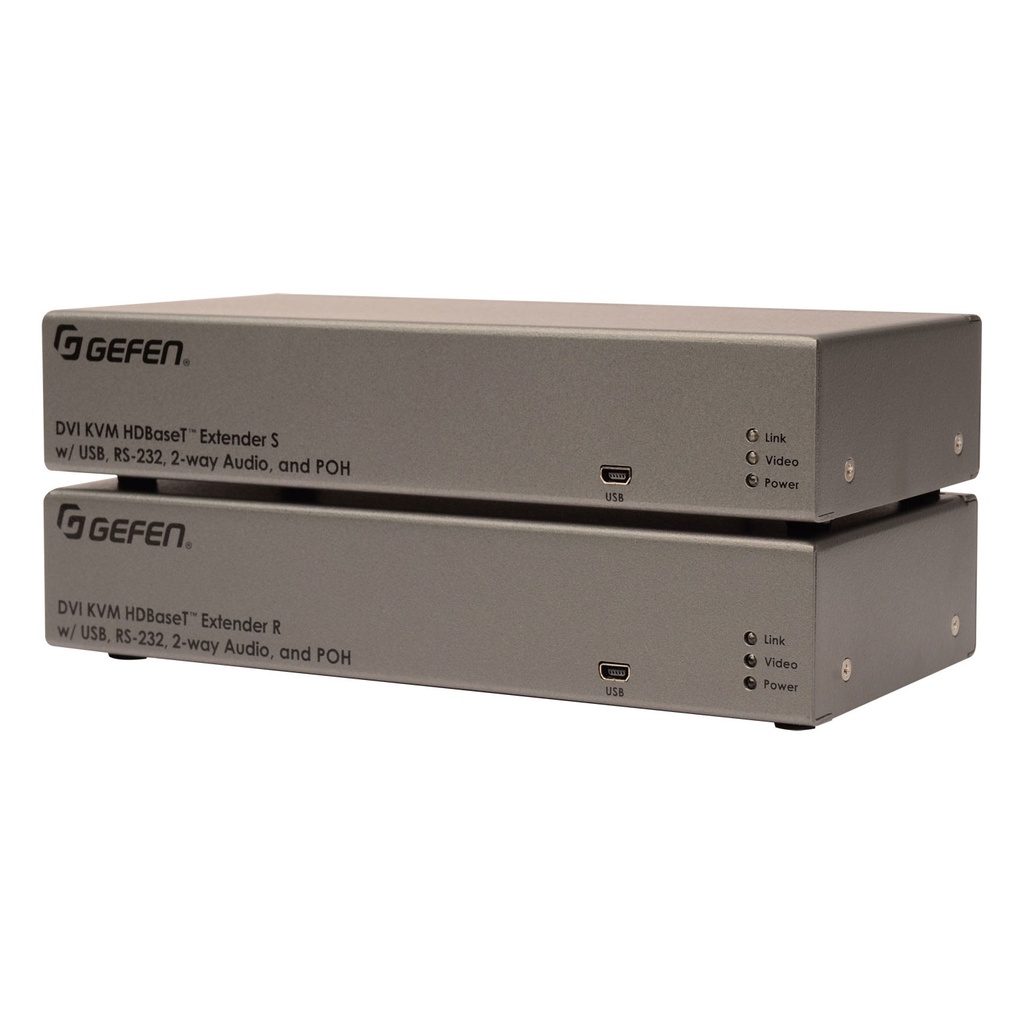

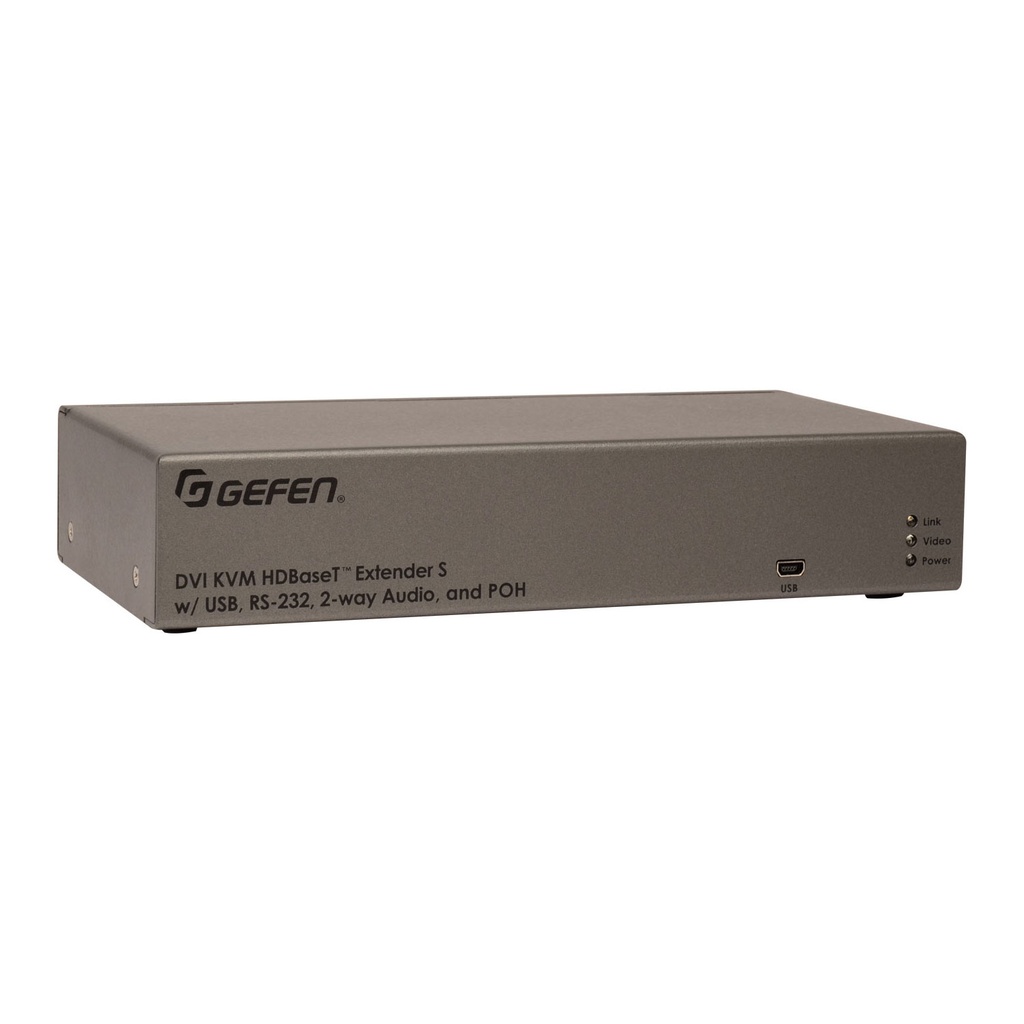

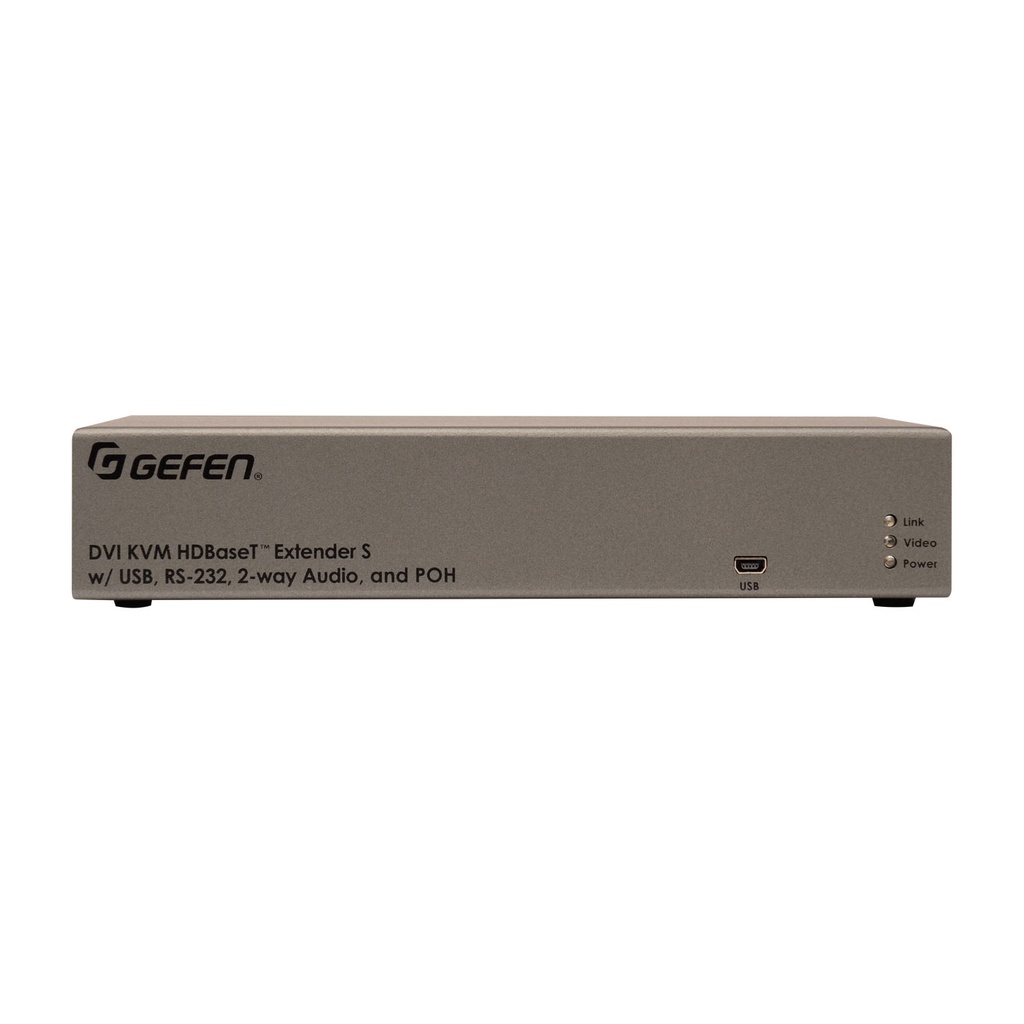

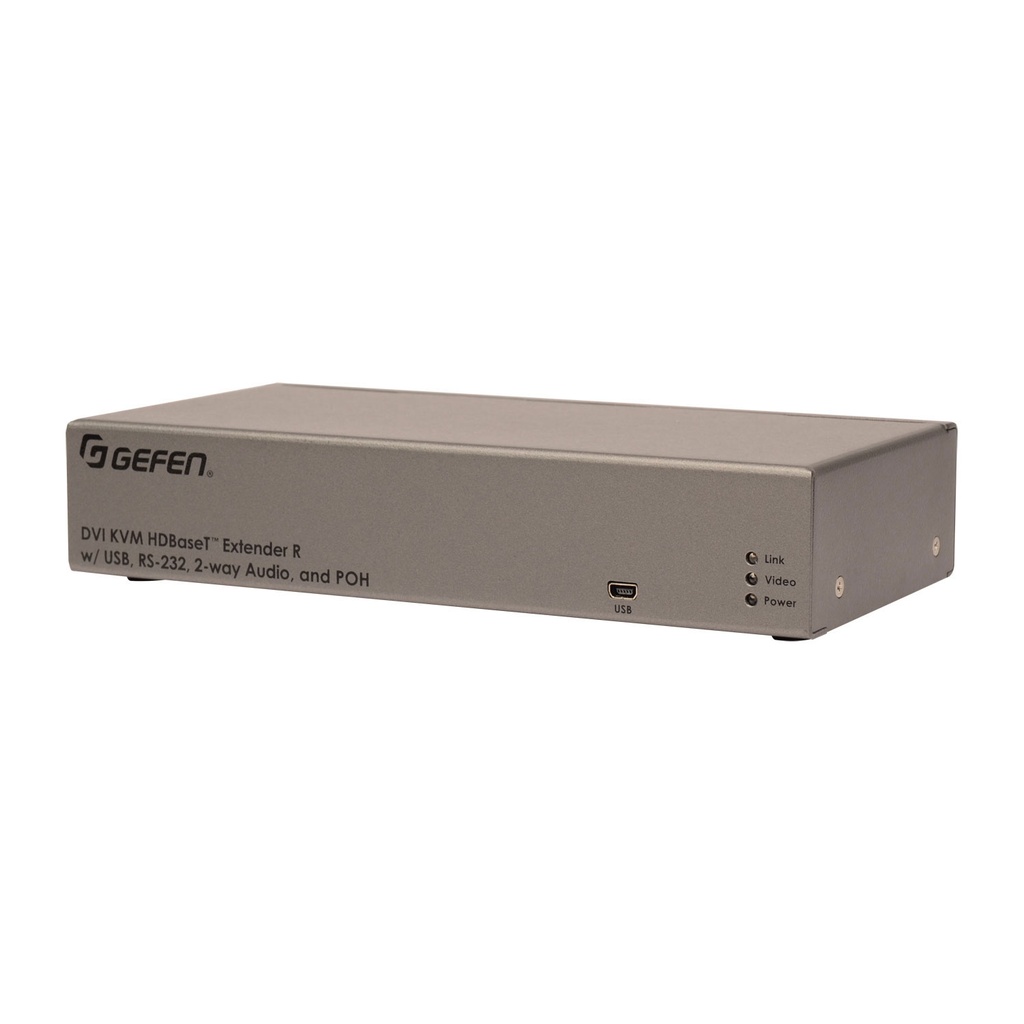

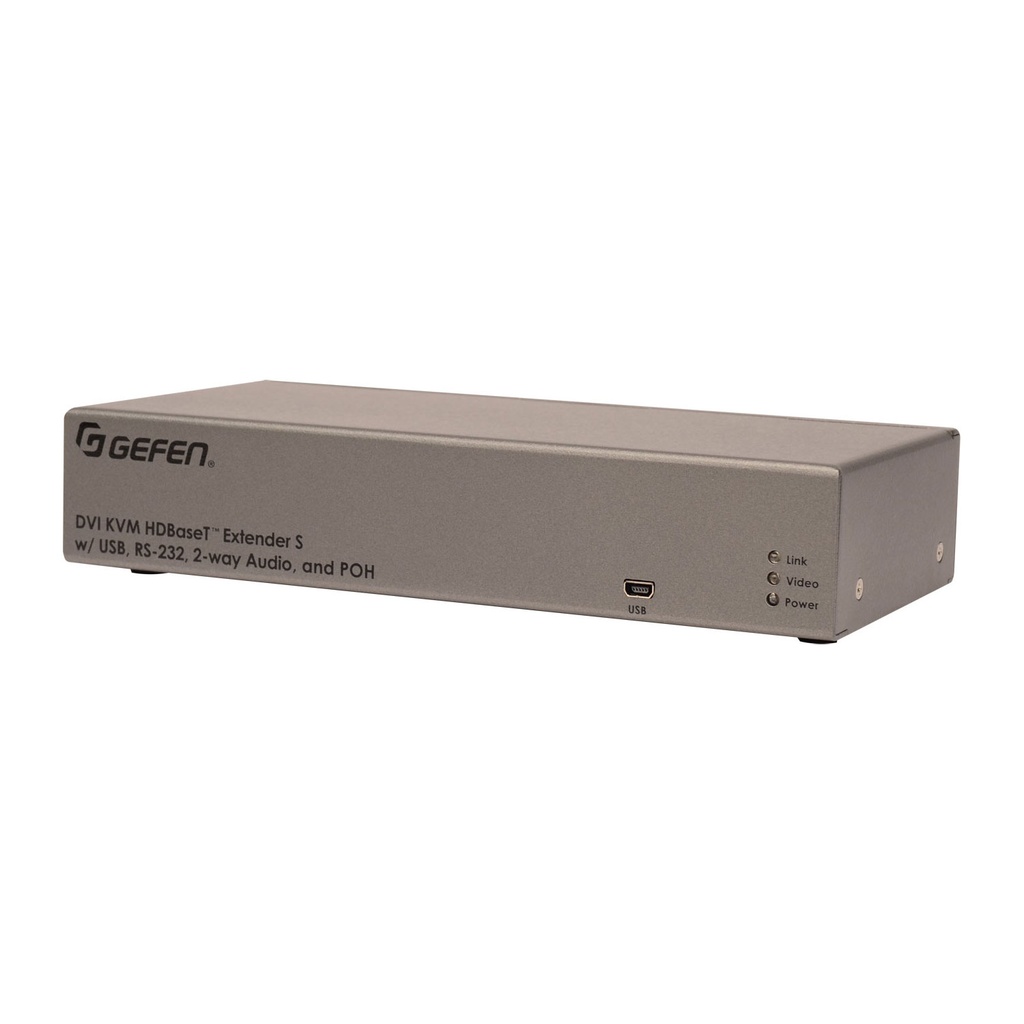

Gefen DVI KVM HDBaseT 2.0 Extender (HDMI & DVI)
With USB, RS-232, 2-way Audio, and POH

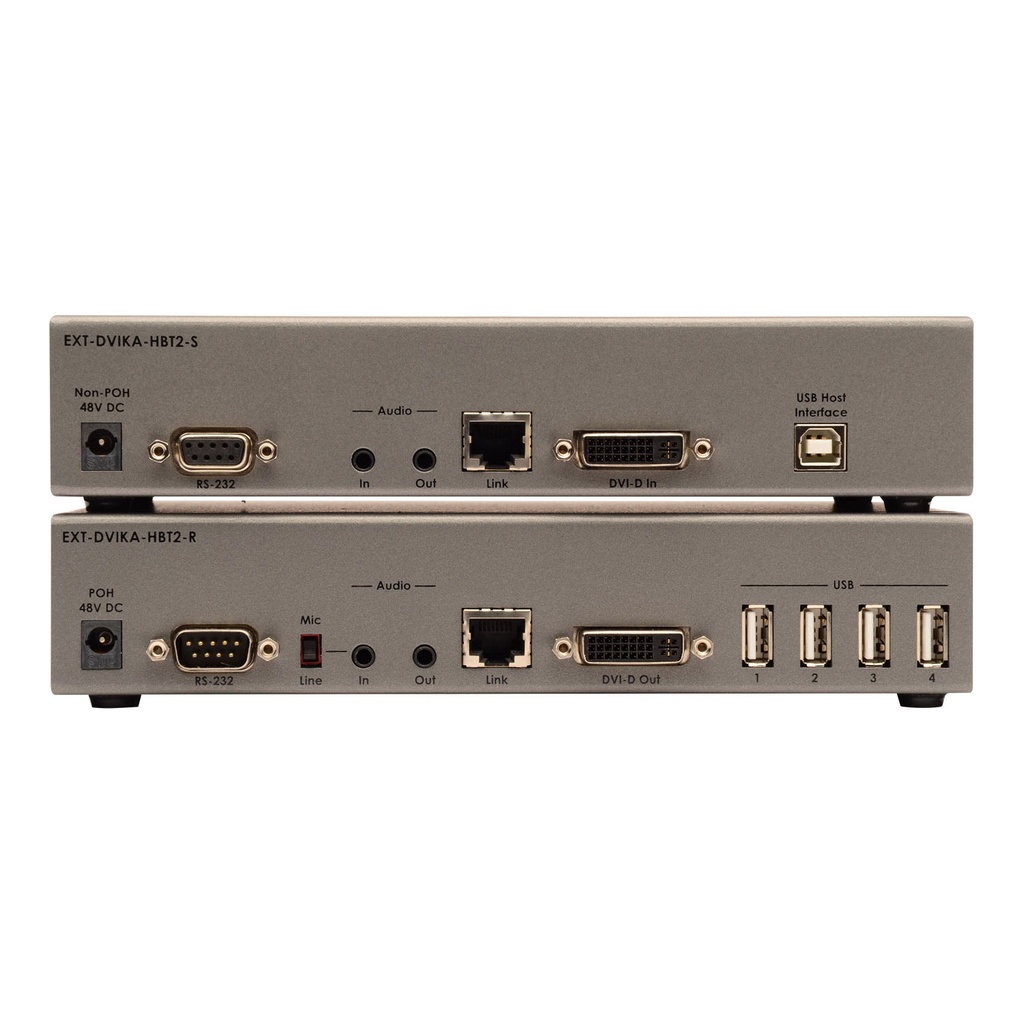

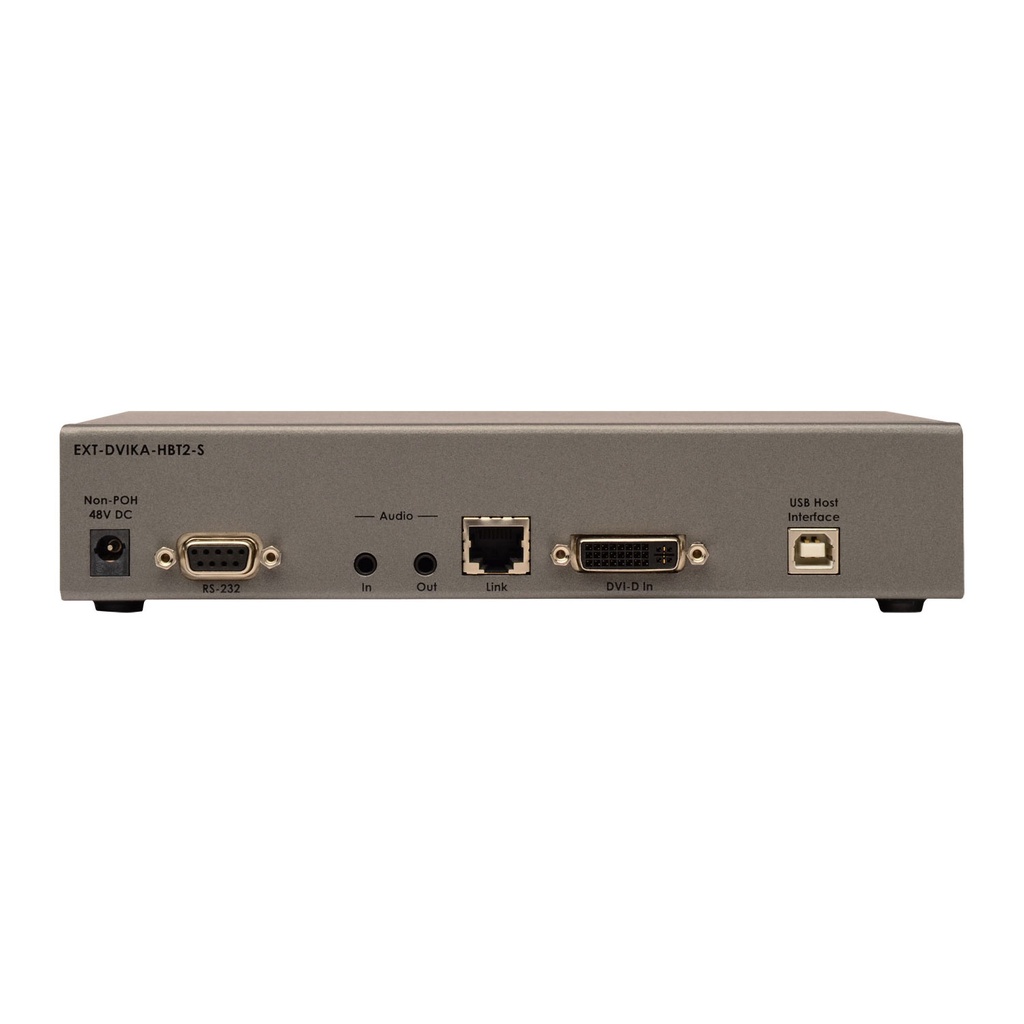

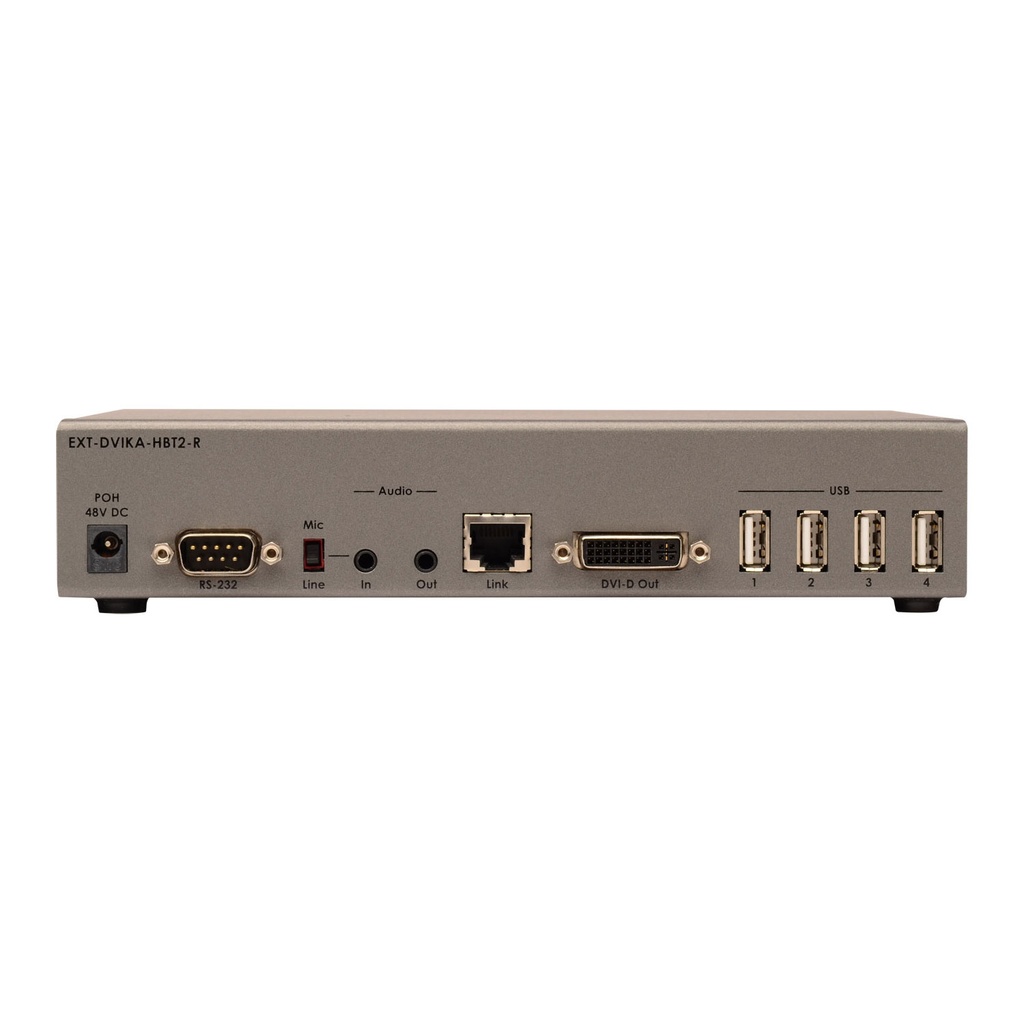

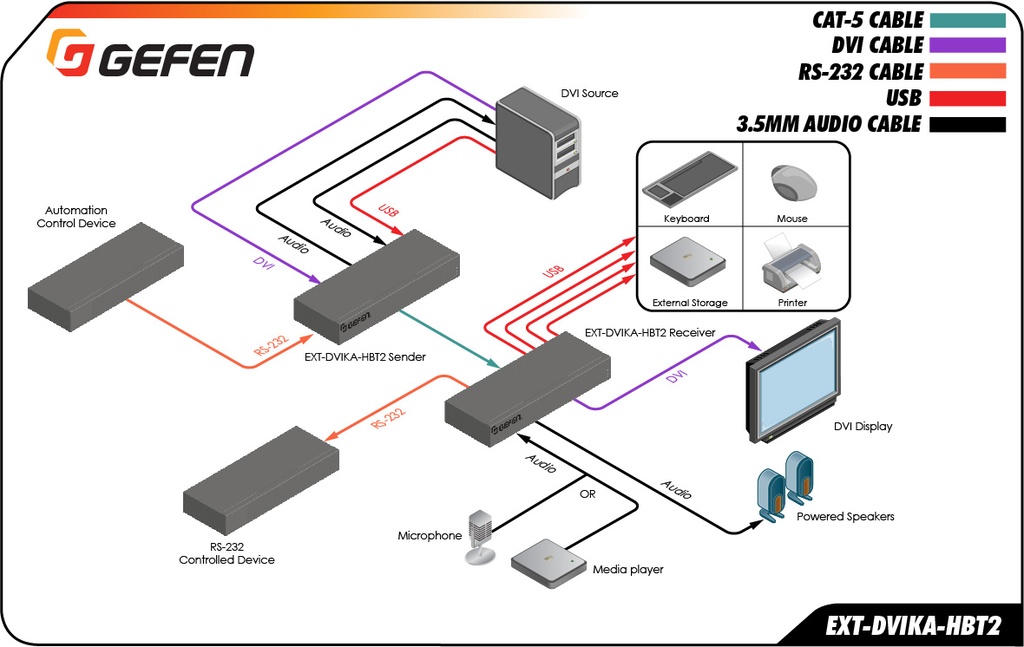

The Gefen EXT-DVIKA-HBT2 DVI KVM HDBaseT 2.0 Extender uses Gefen’s implementation of the latest HDBaseT 2.0 technology to extend DVI over a single CAT-5e cable, up to 495 feet (150 meters). The new HDBaseT 2.0 Colligo platform provides additional features such as USB and 2-way audio extension, and ensures an even more robust and resilient connection than the industry standard HDBaseT. DVI Resolutions up to 1080p and 1920 x 1200 (WUXGA) are supported. HDMI resolutions up to 4K DCI-Cinema (4096 x 2160 @ 30 Hz 4:4:4) and 4K Ultra HD (3840 x 2160 @ 60 Hz 4:2:0) along with 7.1 channels of LPCM and HBR (High Bit Rate) lossless digital audio are also supported when using Gefen DVI to HDMI cables. Supported HBR formats include Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio. USB, RS-232, and 2-way L/R analog audio can be extended between the Sender and the Receiver to accommodate a complete workstation including keyboard, mouse, select USB periperals, microphone, headphones, and powered speakers. 1U tall, half-rack-width enclosures can be surface-mounted, installed in a standard 19-inch rack using the EXT-RACK-1U-GRY rack tray, or be placed on a shelf.
Video Support
Resolutions up to 4K DCI-Cinema
