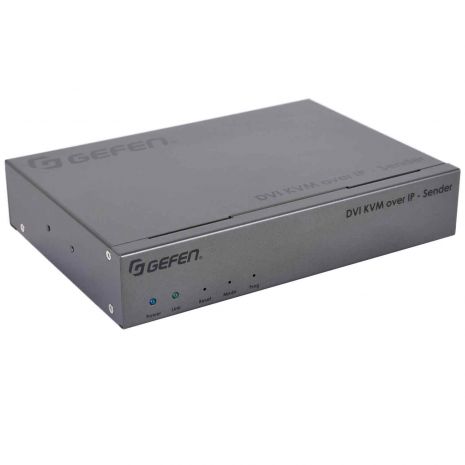

Gefen DVI KVM over IP - Sender Package

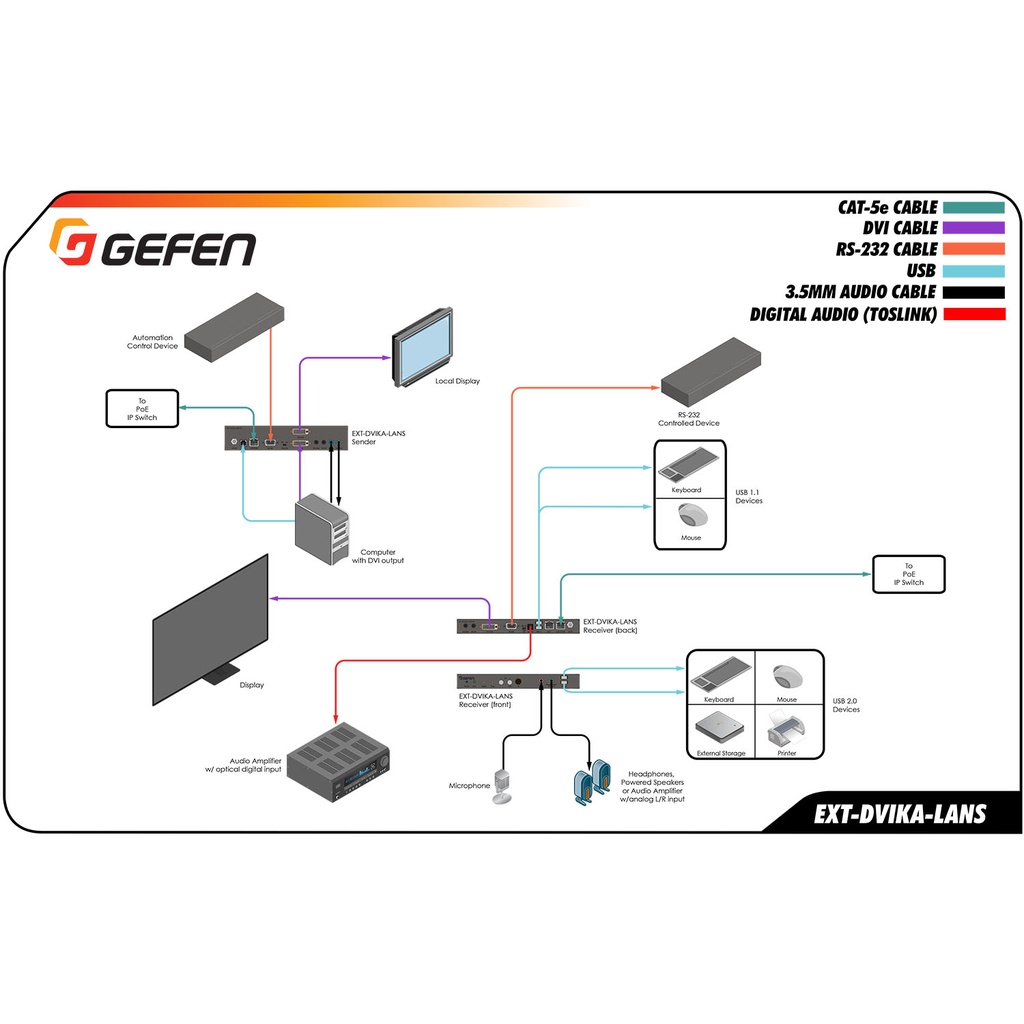

• Extends DVI, USB, RS-232, 2-way analog audio, and IR, using a Gigabit Local Area Network
• Independent video, USB, RS-232, IR, and audio routing**
• Backward-compatible with first generation Gefen AV over IP products
• Supports VESA and CEA input and output resolutions up to WUXGA (1920 x 1200 at 60 Hz) and 1080p Full HD (1920 x 1080 at 60 Hz)
• DVI output on Sender unit for local monitoring of the source
• KM Emulation feature facilitates real-time, simultaneous Keyboard and Mouse control of each source from all connected workstations
• Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
• Built-in video wall controller accommodates any number of rows and columns up to 16×16
• When used in HDMI mode, built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2 channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI signal, allowing the audio content to be sent to external amplifiers and music distribution systems for added impact
• MFU (Mass-Firmware-Update), quick and automated configuration, and enhanced control capabilities and system security when used with the Gefen EXT-CU-LAN Matrix Controller


Specifications

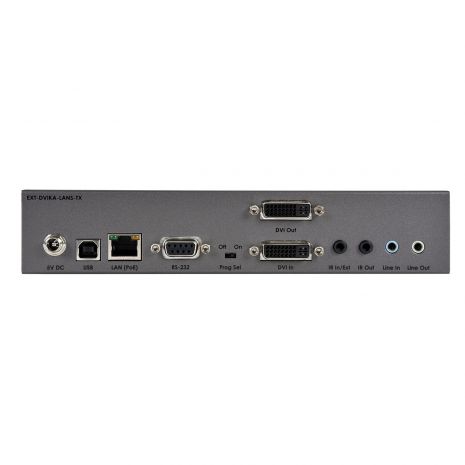

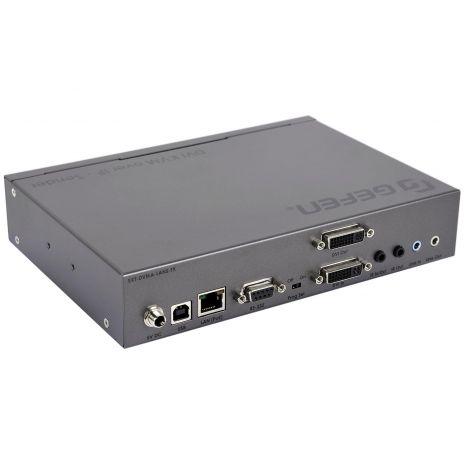

Video Input connector (Sender): (1) DVI 29-pin, female, digital only

Video Output connector (Sender): (1) DVI 29-pin, female, digital only

Video Output connector (Receiver): (1) DVI 29-pin, female, digital only

Line Input (Sender): (1) 3.5mm mini-stereo jack

Line Output (Sender): (1) 3.5mm mini-stereo jack

Mic Input (Receiver): (1) 3.5mm mini-stereo jack

Headphones/Line Output (Receiver): (1) 3.5mm mini-stereo jack

Optical Digital Audio Output (Receiver): (1) TOSLINK®

USB Host Interface port (Sender): (1) USB Type B, female

USB Device ports (Receiver): (2) USB 2.0 Type A, female

: (2) USB 1.1 Type A, female

RS-232 port (Sender): (1) DB-9, female

RS-232 port (Receiver): (1) DB-9, male

IR Sensor (Receiver): (1) Located on front panel

IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack

IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack

IR Extender type: EXT-RMT-EXTIRN

Ethernet port (Sender): (1) RJ-45, shielded, PoE

Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

Channel Up/USB-Request button (Receiver): (1) tact-type

Channel Down button (Receiver): (1) tact-type

Mode button (Sender): (1) tact-type, recessed

Reset button (Sender/Rece(more…)

Other Specifications

Shipping Info

• Length13.2 (Inches)
• Width8.3 (Inches)
• Height3.7 (Inches)
• Weight3.4 (Lbs)
• Unit of MeasureEach
• UPC888814999747

Other Specifications

• Video Input connector (Sender) (1) DVI 29-pin, female, digital only
• Video Output connector (Sender) (1) DVI 29-pin, female, digital only
• Video Output connector (Receiver) (1) DVI 29-pin, female, digital only
• Line Input (Sender) (1) 3.5mm mini-stereo jack
• Line Output (Sender) (1) 3.5mm mini-stereo jack
• Mic Input (Receiver) (1) 3.5mm mini-stereo jack
• Headphones/Line Output (Receiver) (1) 3.5mm mini-stereo jack
• Optical Digital Audio Output (Receiver) (1) TOSLINK®
• USB Host Interface port (Sender) (1) USB Type B, female
• USB Device ports (Receiver) (2) USB 2.0 Type A, female
• (2) USB 1.1 Type A, female
• RS-232 port (Sender) (1) DB-9, female
• RS-232 port (Receiver) (1) DB-9, male
• IR Sensor (Receiver) (1) Located on front panel
• IR In/Ext (Sender/Receiver) (1) 3.5mm mini-stereo jack
• IR Out (Sender/Receiver) (1) 3.5mm mini-mono jack
• IR Extender type EXT-RMT-EXTIRN
• Ethernet port (Sender) (1) RJ-45, shielded, PoE
• Ethernet ports (Receiver) (2) RJ-45, shielded, one with PoE
• Channel Up/USB-Request button (Receiver) (1) tact-type
• Channel Down button (Receiver) (1) tact-type
• Mode button (Sender) (1) tact-type, recessed
• Reset button (Sender/Receiver) (1) tact-type, recessed
• Program button (Sender/Receiver) (1) tact-type, recessed
• Program Select switch (Sender/Receiver) (1) slide-type, recessed

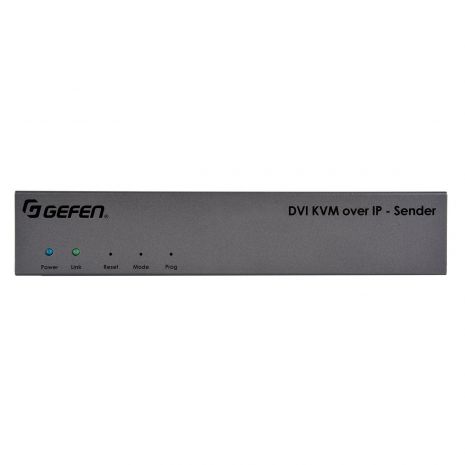

• Link Indicator (Sender/Receiver) (1) LED, green
• Power Indicator (Sender/Receiver) (1) LED, blue
• Power Supply jack (Sender/Receiver) 5V DC, 2.5mm pin and 5.5mm barrel, locking
• Power Requirement (Sender/Receiver) 5V DC, or PoE (802.3af standard)
• Power Consumption Sender: TBD
• Receiver: TBD
• Operating Temperature (Sender/Receiver) +32 to +122°F (0 to +50°C)
• Operating Humidity (Sender/Receiver) 5% to 90% RH, non-condensing
• Storage Temperature (Sender/Receiver) -4 to +185°F (-20 to +85°C)
• Storage Humidity (Sender/Receiver) 0% to 95% RH, non-condensing
• MTBF Sender: 50000 hours
• Receiver:50000 hours
• Dimensions (W x H x D, without connectors or feet)Sender: 8.4″ x 1.7″ x 5.9″ (214mm x 43mm x 150mm)
• Receiver: 8.4″ x 1.0″ x 5.9″ (214mm x 25mm x 150mm)
• Unit Weight Sender: TBD
• Receiver TBD
• Shipping Weight Sender: TBD
• Receiver: TBD
• * Features and specifications are subject to change without notice
• ** Pending features to be activated via an upcoming firmware update

In The Box

• Sender unit (EXT-DVIKA-LANS-TX)1
• 5V 2.6A Power Supply (EXT-PS526AIP-LP-6)1
• Self-Adhesive Rubber Feet4
• L-Shaped Mounting Brackets2
• Machine screws for L-Shaped Mounting Brackets4
• Machine screws for EXT-RACK-1U-GRY (sold separately)2
• Quick-Start Guide1

3 year product warranty
