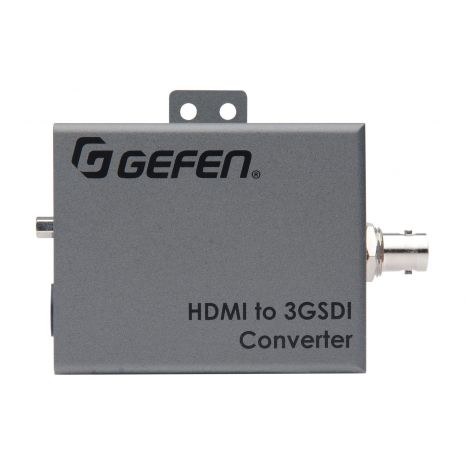

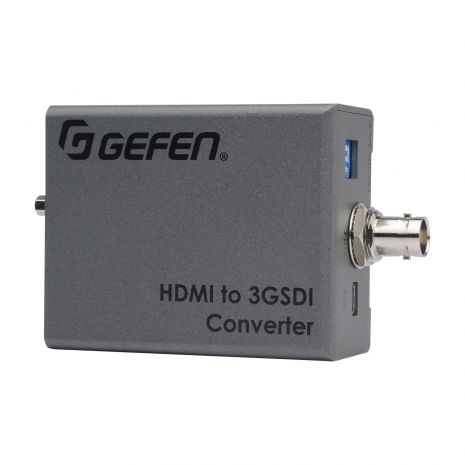

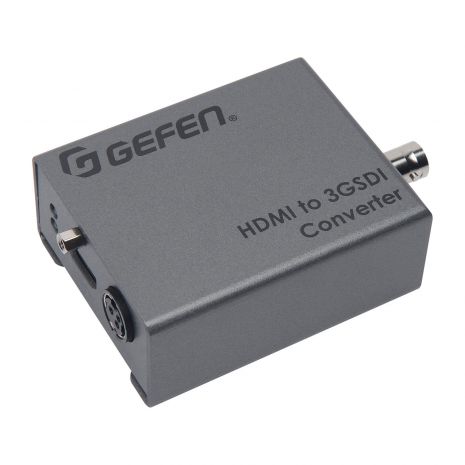

Gefen HDMI to 3GSDI Converter

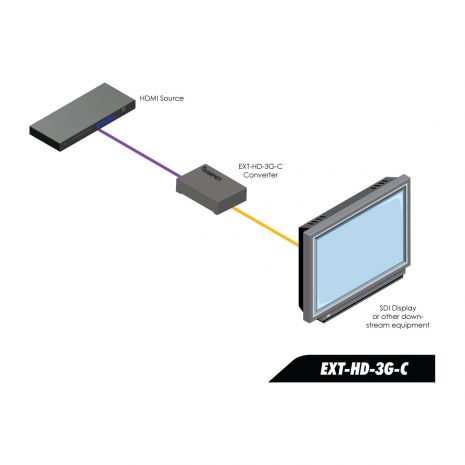

• Converts HDMI to SDI

• Input resolutions up to 1920 x 1200 (WUXGA) and 1080p Full HD

• Output resolutions up to 1080p60

• Supports HDMI 12 bit color and SDI 10-bit color

• Supports Color Spaces: 4:4:4 (RGB and YCbCr) and 4:2:2 (YCbCr )

• Supports 3G-SDI Levels A and B

• Up to LPCM 7.1 audio support

• Field configurable via DIP switch settings or Gefen Syner-G software

• Gefen Syner-G simplifies in-field firmware updates and advanced EDID management

• Mini USB port for use with Gefen Syner-G

• Wide power supply operating range (6V to 24V DC)

• Locking power supply connector

• 1/4-20 industry-standard camera gear attachment thread on bottom

• Surface-mountable using the included detachable bracket


Specifications

Maximum Pixel Clock: 150 MHz
Maximum TMDS Clock: 225 MHz

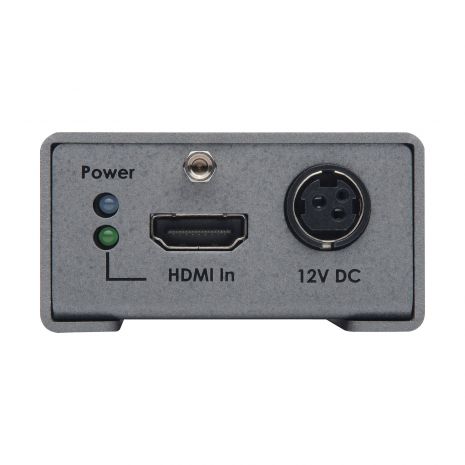

Video Input Connector: (1) HDMI Type A 19-pin, female, locking

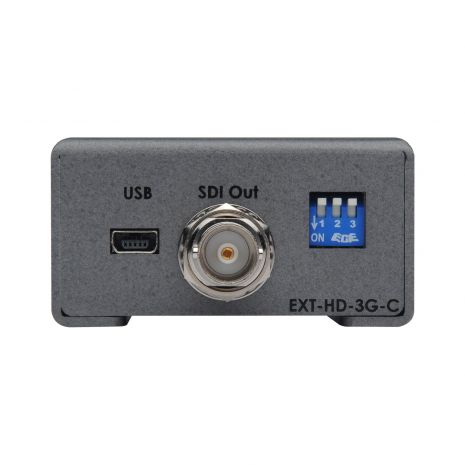

Video Output Connector: (1) SDI BNC-type, female
USB Connector: (1) Mini-B
Configuration Switches: (3) DIP-type
HDMI Indicator: (1) LED, green
Power Indicator: (1) LED, blue
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC nominal (6V to 24V DC operating range)
Power Consumption): 3W maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (excluding connectors, W x H x D): 2.9″ x 1.2″ x 2.3″ (74mm x 30mm x 59mm)
Net Unit Weight: 0.3 lbs (0.15 kg)

Other Specifications

Shipping Info

• Length12 (Inches)
• Width6 (Inches)
• Height6 (Inches)
• Weight3 (Lbs)
• UPC888814797275

Other Specifications

• Maximum Pixel Clock: 150 MHz
• Maximum TMDS Clock: 225 MHz
• Video Input Connector: (1) HDMI Type A 19-pin, female, locking
• Video Output Connector: (1) SDI BNC-type, female
• USB Connector: (1) Mini-B
• Configuration Switches: (3) DIP-type
• HDMI Indicator: (1) LED, green
• Power Indicator: (1) LED, blue
• Power Supply Connector: (1) 3-pin, locking
• Power Supply: 12V DC nominal (6V to 24V DC operating range)
• Power Consumption): 3W maximum
• Operating Temperature: +32 to +122 °F (0 to +50 °C)
• Operating Humidity: 5% to 90% RH, non-condensing
• Storage Temperature: -4 to +185 °F (-20 to +85 °C)
• Storage Humidity: 0% to 95% RH, non-condensing
• MTBF: 50000 hours
• Dimensions (excluding connectors, W x H x D): 2.9″ x 1.2″ x 2.3″ (74mm x 30mm x 59mm)
• Net Unit Weight: 0.3 lbs (0.15 kg)

In The Box

• HDMI to 3GSDI Converter (EXT-HD-3G-C)(1)
• 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)(1)
• Surface Mounting Bracket (1)
• 12V DC Power Supply (EXT-PS121.5AIP-3P-6)(1)
• Quick-Start Guide (QSG-EXT-HD-3G-C)(1)

3 year product warranty

If the product was purchased before March 29, 2017, the warranty duration is 2 years.

Please see the Gefen warranty page for more details
