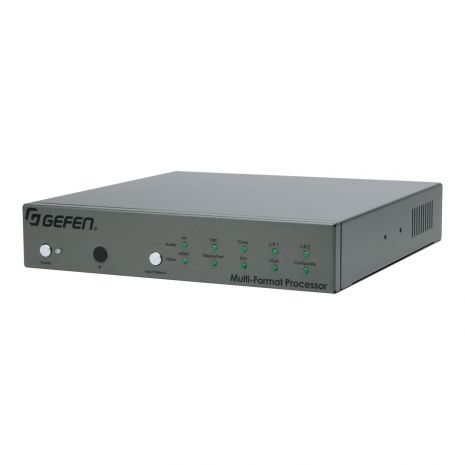

Gefen Audio/Video Multi-Format Processor

• Independent and configurable audio and video routing

• Supports input and output resolutions up to 1080p Full HD & 1920 x 1200 (WUXGA)

• HDCP compliant

• HDMI, DisplayPort, DVI, VGA, and Composite Video inputs

• DisplayPort input is compatible with Mac and PC computers

• TOSLINK® optical digital, S/PDIF coaxial digital, and two analog L/R audio inputs

• Each audio source can be independently assigned to any video source

• Audio sources can be temporarily switched away from their assigned video sources

• On-screen display (OSD) menu and web server interface allow easy set-up & control

• IP control via Telnet, UDP, and web server interface

• RS-232 Serial interface for use with an automation control system

• Independent IR control of up to four units in proximity, using distinct command sets

• Password-protected user and administrative access

• Advanced EDID Management for rapid integration of sources and dispays

• Assignable input naming

• System Configuration(more…)


Specifications

Maximum Pixel Clock: 165 MHz
Maximum TMDS Clock: 225 MHz
Video Input Connectors:
: (1) HDMI Type A 19-pin, female, locking
: (1) DisplayPort, 20-pin, female
: (1) DVI-I, 29-pin, female, digital only
: (1) VGA HD-15, female
: (1) Composite, RCA-type, female
Audio Input Connectors:
: (2) 3.5mm mini-stereo jack
: (1) TOSLINK® optical, female
: (1) S/PDIF Coaxial, RCA-type, female
Video Output Connectors:
: (1) HDMI Type A 19-pin, female, locking
: (1) DVI-I, 29-pin, female, digital only
Audio Output Connectors: RCA x 2
USB Connector: (1) Mini-B (factory use only)
IR Sensor: (1) on front panel
IR Extender Port: (1) 3.5mm mini-stereo jack
IR Extender Type: EXT-RMT-EXTIRN
Input Selection Contact Closure Connector:
6-pin Phoenix quick-disconnect
IP Port: (1) RJ-45 jack
RS-232 Port: (1) DB-9, female
Input Select Button: (1) tact-type
Power/Stand-by Button: (1) tact-type
Power/Standby Indicator: (1) bi-color LED, blue/red
Video Input Indicators: (5) LEDs, green
Audio Input Indictaors: (5) LEDs, green
Power Supply Connector: (1) 3-pin, locking
Power Supply: 12V DC
Power C(more…)

Other Specifications

Shipping Info

• Length14 (Inches)
• Width12 (Inches)
• Height4 (Inches)
• Weight5.1 (Lbs)
• UPC888814569049

Other Specifications

• Maximum Pixel Clock: 165 MHz
• Maximum TMDS Clock: 225 MHz
• Video Input Connectors:
• (1) HDMI Type A 19-pin, female, locking
• (1) DisplayPort, 20-pin, female
• (1) DVI-I, 29-pin, female, digital only
• (1) VGA HD-15, female
• (1) Composite, RCA-type, female
• Audio Input Connectors:
• (2) 3.5mm mini-stereo jack
• (1) TOSLINK® optical, female
• (1) S/PDIF Coaxial, RCA-type, female
• Video Output Connectors:
• (1) HDMI Type A 19-pin, female, locking
• (1) DVI-I, 29-pin, female, digital only
• Audio Output Connectors: RCA x 2
• USB Connector: (1) Mini-B (factory use only)
• IR Sensor: (1) on front panel
• IR Extender Port: (1) 3.5mm mini-stereo jack
• IR Extender Type: EXT-RMT-EXTIRN
• Input Selection Contact Closure Connector:6-pin Phoenix quick-disconnect
• IP Port: (1) RJ-45 jack
• RS-232 Port: (1) DB-9, female
• Input Select Button: (1) tact-type
• Power/Stand-by Button: (1) tact-type
• Power/Standby Indicator: (1) bi-color LED, blue/red
• Video Input Indicators: (5) LEDs, green
• Audio Input Indictaors: (5) LEDs, green
• Power Supply Connector: (1) 3-pin, locking
• Power Supply: 12V DC
• Power Consumption: 8.5W maximum
• Operating Temperature: +32 to +122 °F (0 to +50 °C)
• Operating Humidity: 5% to 90% RH, non-condensing
• Storage Temperature: -4 to +185 °F (-20 to +85 °C)
• Storage Humidity: 0% to 95% RH, non-condensing
• MTBF: 50000 hours
• Dimensions (excluding buttons & connectors, W x H x D):8.4″ x 1.6″ x 8.5″ (213mm x 41mm x 216mm)
• Net Unit Weight: 3.2 lbs (1.5 kg)

In The Box

• Multi-Format Processor (EXT-MFP)(1)
• 6-pin Phoenix Plug (CON-PH-6P-M-GRN-AB)(1)
• L- shaped Brackets for surface mounting(2)
• Mounting Screws for L-shaped brackets(4)
• Mounting Screws for EXT-RACK-1U-GRY(2)
• Self-Adhesive Rubber Feet(4)
• IR Remote Control (RMT-MFP)(1)
• 12V DC Power Supply (EXT-PS121.5AIP-3P-6)(1)
• Quick-Start Guide (QSG-EXT-MFP)(1)

2 year product warranty

Please see the Gefen warranty page for more details
