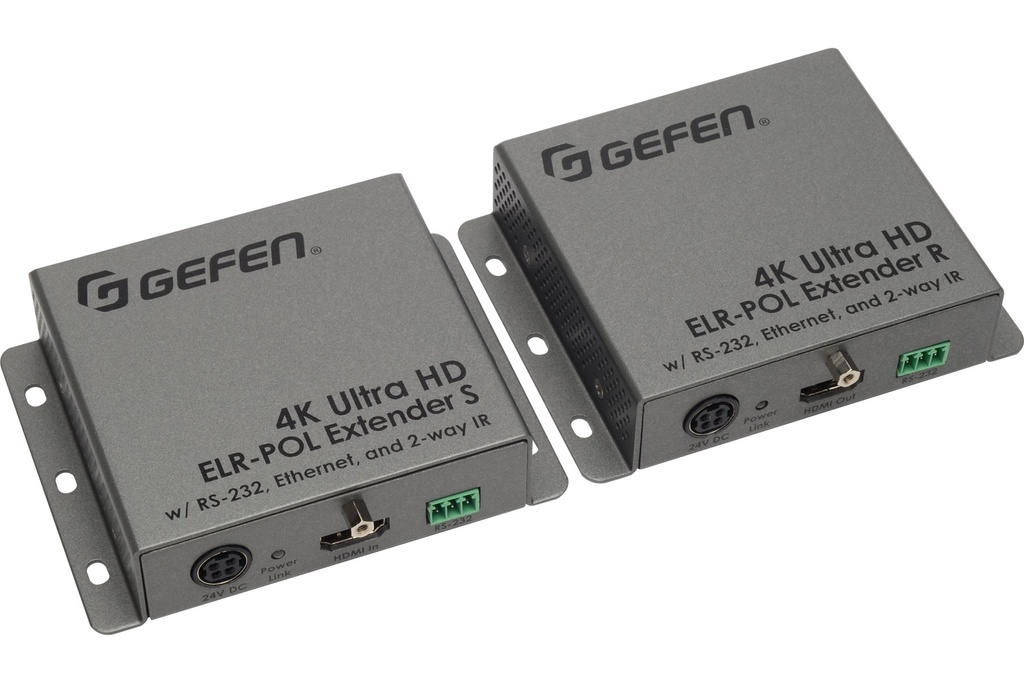

Gefen 4K Ultra HD ELR-POL Extender

https://www.aptech.com.au/web/image/product.template/199/image_1920?unique=8b31a1d

Extend HDMI, RS-232, Ethernet and Bi-Directional IR over a signle CAT-5 up to 495/150m

This product is no longer available.

SKU: EXT-UHD-CAT5-ELRPOL

The Gefen 4K Ultra HD ELR-POL Extender uses the Gefen implementation of the HDBaseT technology to extend HDMI up to 495 feet (150 meters) using one CAT-5e cable.

Video Support

Resolutions up to 4K Cinema-DCI (4096 x 2160 at 24 or 30 Hz 4:4:4) and 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0 or 30Hz 4:4:4) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.

Audio Support

The EXT-UHD-CAT5-ELRPOL supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio.

IP & Serial Extension

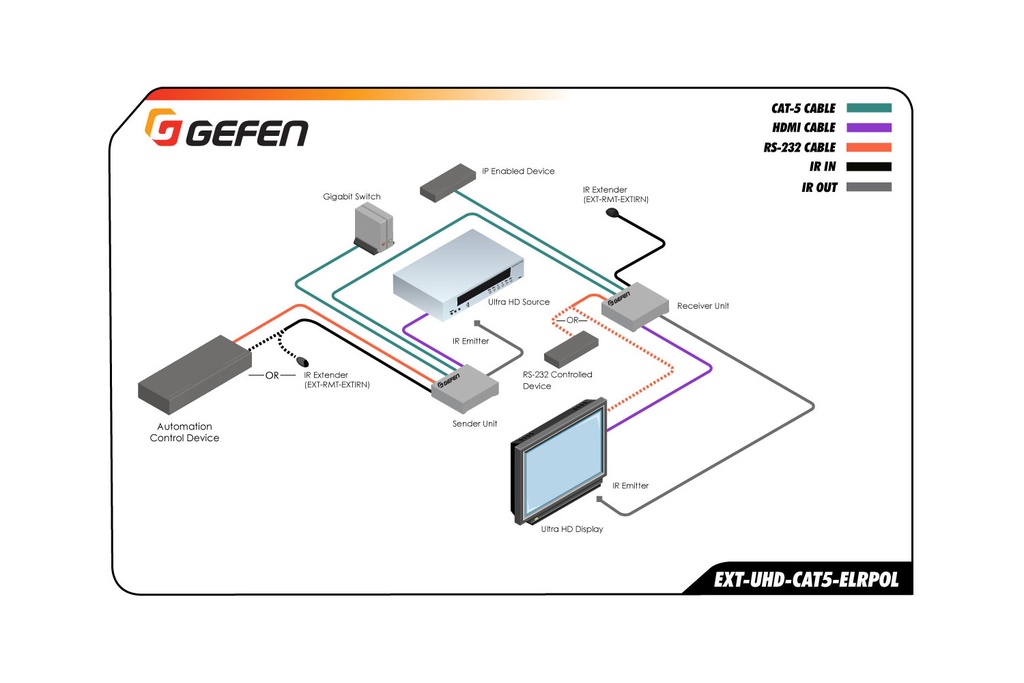

This product provides Ethernet, RS-232 and 2-way IR extension between the Sender and the Receiver units, making 10/100BaseT wired Ethernet connection available at the remote location without the need to run a separate cable. It also allows the transfer of IR commands and RS-232 communications between two remote locations. RS-232 and Bi-Directional IR can be used to control A/V sources placed near the Sender unit and to send automation commands to the display or another device placed near the Receiver unit.


Bi-Direction(more…)

Specifications

Brand Gefen
Product Type Extenders
