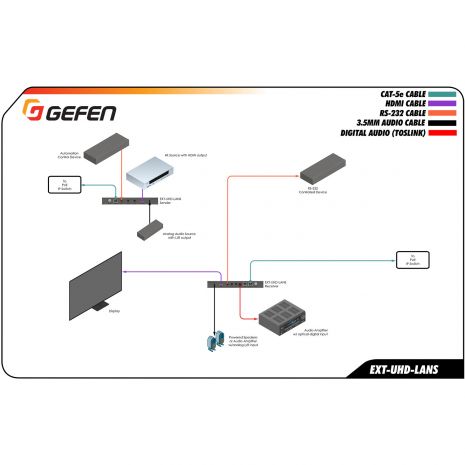

- Extends HDMI, RS-232, analog audio, and IR, using a Gigabit Local Area Network
- Independent video, RS-232, IR, and audio routing**
- Backward-compatible with first generation Gefen AV over IP products
- Supports input resolutions up to 4K 60Hz 4:2:0
- Supports output resolutions up to 4K 30Hz 4:4:4
- Supported HDMI Features:
- HDR
- HDCP 2.2 and 1.4
- Deep Color
- Lip-Sync
- Uncompressed LPCM digital audio up to 7.1 channels
- Up to 7.1 channels of HBR (High Bit Rate) digital audio including Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master Audio
- When used with Gefen DVI-to-HDMI cables (not included), supports the use of DVI sources and DVI displays up to 1080p Full HD and 1920×1200 (WUXGA)
- Integrated scaler ensures maximum compatibility and best possible viewing experience with different contents and displays
- Built-in video wall controller accommodates any number of rows and columns up to 16×16
- Built-in Audio De-Embedder on Receiver breaks out 2 channel analog, 2
channel PCM, and up to 5.1 channels of Bitstream audio from the HDMI
signal, allowing the audio content to be sent to external amplifiers and
music distribution sy(more…)
Specifications
Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking

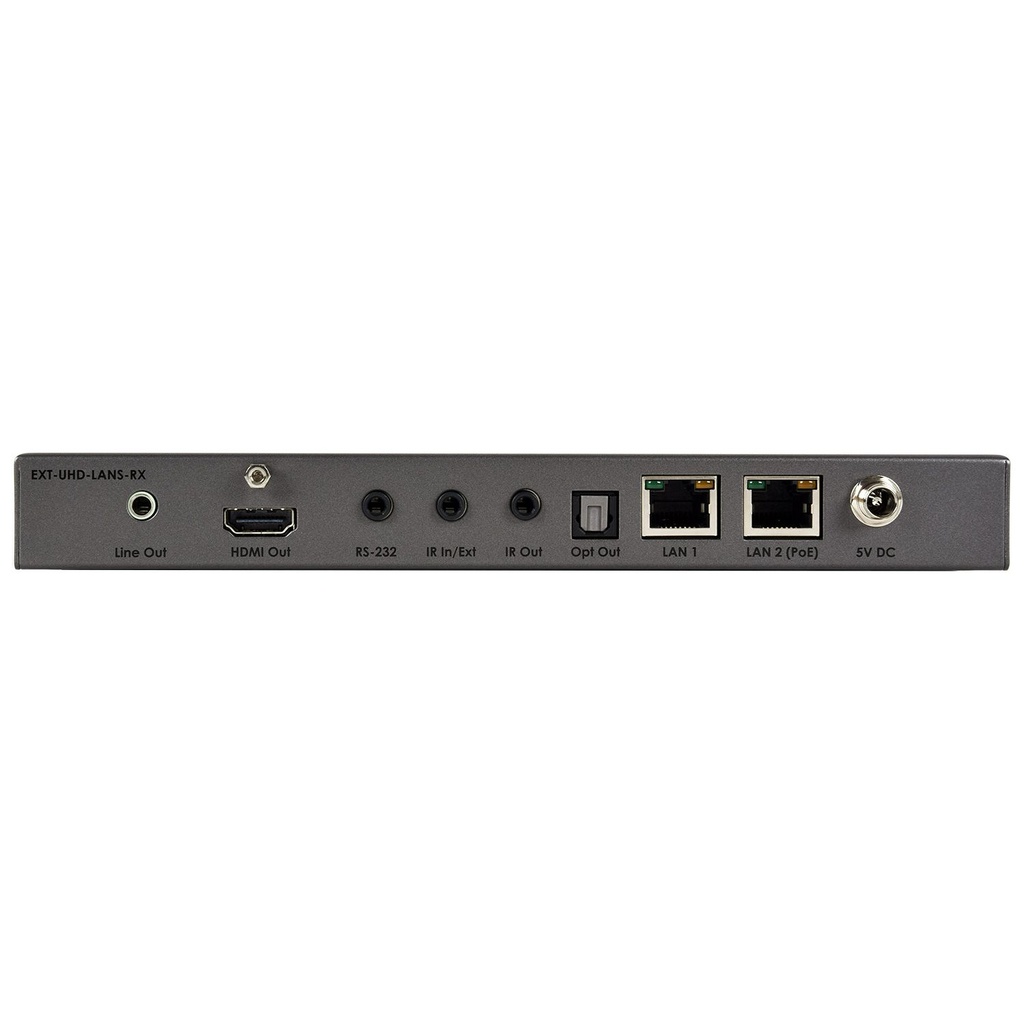

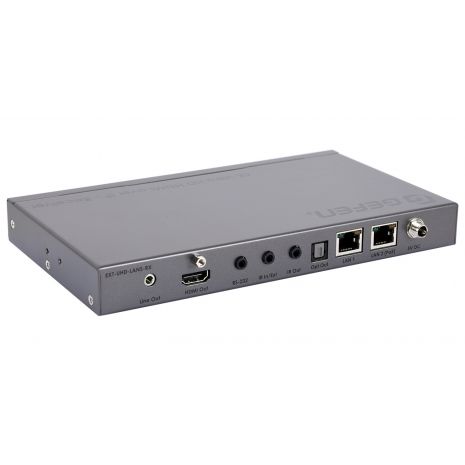

Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Receiver): (1) 3.5mm mini-stereo jack
Optical Digital Audio Output (Receiver): (1) TOSLINK®
RS-232 port (Sender/Receiver): (1) 3.5mm stereo jack, female, DB-9 adaptor included
IR In/Ext (Sender/Receiver): (1) 3.5mm mini-stereo jack
IR Out (Sender/Receiver): (1) 3.5mm mini-mono jack
IR Extender type: EXT-RMT-EXTIRN
Ethernet port (Sender): (1) RJ-45, shielded, PoE
Ethernet ports (Receiver): (2) RJ-45, shielded, one with PoE

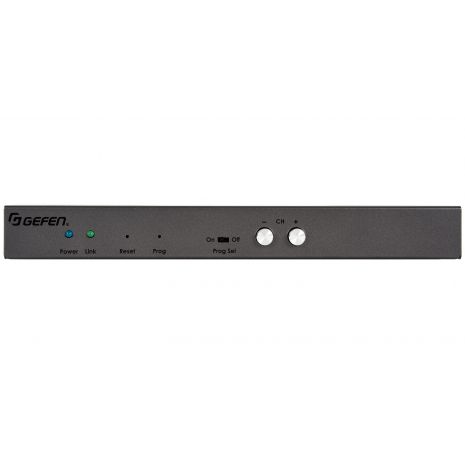

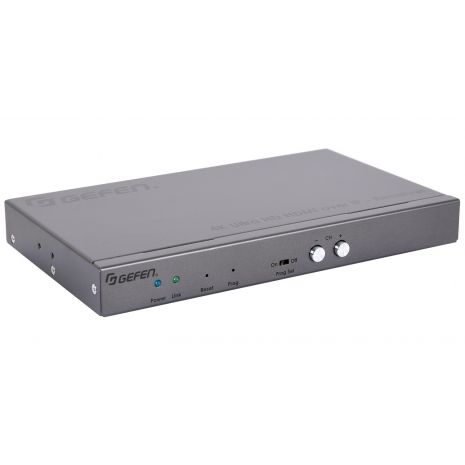

Channel Up button (Receiver): (1) tact-type
Channel Down button (Receiver): (1) tact-type
Mode button (Sender): (1) tact-type, recessed
Reset button (Sender/Receiver): (1) tact-type, recessed
Program button (Sender/Receiver): (1) tact-type, recessed
Program Select switch (Sender/Receiver): (1) slide-type, recessed
Link Indicator (Sender/Receiver): (1) LED, green
Power Indicator (Sender/Receiver): (1) LED, blue
Power Supply jack (Sender/Receiver): 5V DC, 2.5mm pin and 5.5mm barrel, locking
Power Requirement (Sender/Receiver): 5V DC, or Po(more…)
Other Specifications
Shipping Info
- Length13.2 (Inches)
- Width8.1 (Inches)
- Height3.7 (Inches)
- Weight2.9 (Lbs)
- Unit of MeasureEach
- UPC888814999716
Other Specifications
- Video Input connector (Sender) (1) HDMI Type A 19-pin, female, locking
- Video Output connector (Receiver) (1) HDMI Type A 19-pin, female, locking
- Line Input (Sender) (1) 3.5mm mini-stereo jack
- Line Output (Receiver) (1) 3.5mm mini-stereo jack
- Optical Digital Audio Output (Receiver) (1) TOSLINK®
- RS-232 port (Sender/Receiver) (1) 3.5mm stereo jack, female, DB-9 adaptor included
- IR In/Ext (Sender/Receiver) (1) 3.5mm mini-stereo jack
- IR Out (Sender/Receiver) (1) 3.5mm mini-mono jack
- IR Extender type EXT-RMT-EXTIRN
- Ethernet port (Sender) (1) RJ-45, shielded, PoE
- Ethernet ports (Receiver) (2) RJ-45, shielded, one with PoE
- Channel Up button (Receiver) (1) tact-type
- Channel Down button (Receiver) (1) tact-type
- Mode button (Sender) (1) tact-type, recessed
- Reset button (Sender/Receiver) (1) tact-type, recessed
- Program button (Sender/Receiver) (1) tact-type, recessed
- Program Select switch (Sender/Receiver) (1) slide-type, recessed
- Link Indicator (Sender/Receiver) (1) LED, green
- Power Indicator (Sender/Receiver) (1) LED, blue
- Power Supply jack (Sender/Receiver) 5V DC, 2.5mm pin and 5.5mm barrel, locking
- Power Requirement (Sender/Receiver) 5V DC, or PoE (802.3af standard)
- Power Consumption Sender: TBD
- Receiver: TBD
- Operating Temperature (Sender/Receiver) +32 to +122°F (0 to +50°C)
- Operating Humidity (Sender/Receiver) 5% to 90% RH, non-condensing
- Storage Temperature (Sender/Receiver) -4 to +185°F (-20 to +85°C)
- Storage Humidity (Sender/Receiver) 0% to 95% RH, non-condensing
In The Box
- Receiver unit (EXT-UHD-LANS-RX)1
- 5V 2.6A Power Supply (EXT-PS526-AIP-LP-6)1
- 3.5mm-to-DB-9 Adaptor, M-M (ADA-MP-2-DB9-MM-AB)1
- IR Extender (EXT-RMT-EXTIRN)1
- Self-Adhesive Rubber Feet4
- L-Shaped Mounting Brackets2
- Machine screws for L-Shaped Mounting Brackets4
- Machine screws for EXT-RACK-1U-GRY (sold separately)2
- Quick-Start Guide1
Gefen’s AV over IP solutions continue their tradition of providing high performance, scalable, expandable, and secure AV routing and distribution over a standard Gigabit Local Area Network. The Gen 2.0 KVM products offer enhanced performance, features, and functionality such as 4K Ultra HD with HDR support, built-in scalers, video-wall control, independent RS-232, IR, and audio routing**, and backward-compatibility with our first generation products.
The EXT-UHD-LANS-TX & RX feature maximum input resolution of 4K 60 Hz 4:2:0, and maximum output resolution of 4K 30 Hz 4:4:4. HDCP 2.2 and 1.4 are also supported. 7.1 channels of HBR (High Bit Rate) lossless and LPCM digital audio can pass through the system as well.
Video, RS-232 2-way IR, and audio can be routed independently** between any Sender and Receiver unit, allowing end-users to control any of the sources and the displays within their network. With this greatly expanded array of new cutting-edge features and performance, the new Gefen AV over IP products fully address the ever-growing needs of systems integrators.
The Receiver features a built-in scaler to help optimize the image for(more…)
