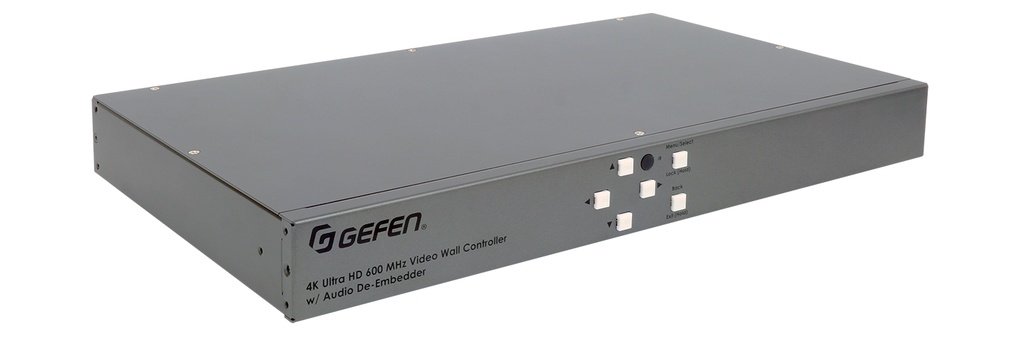

Gefen 4K Ultra HD 600 MHz 1x4 Video Wall Controller w/ Audio De-Embedder

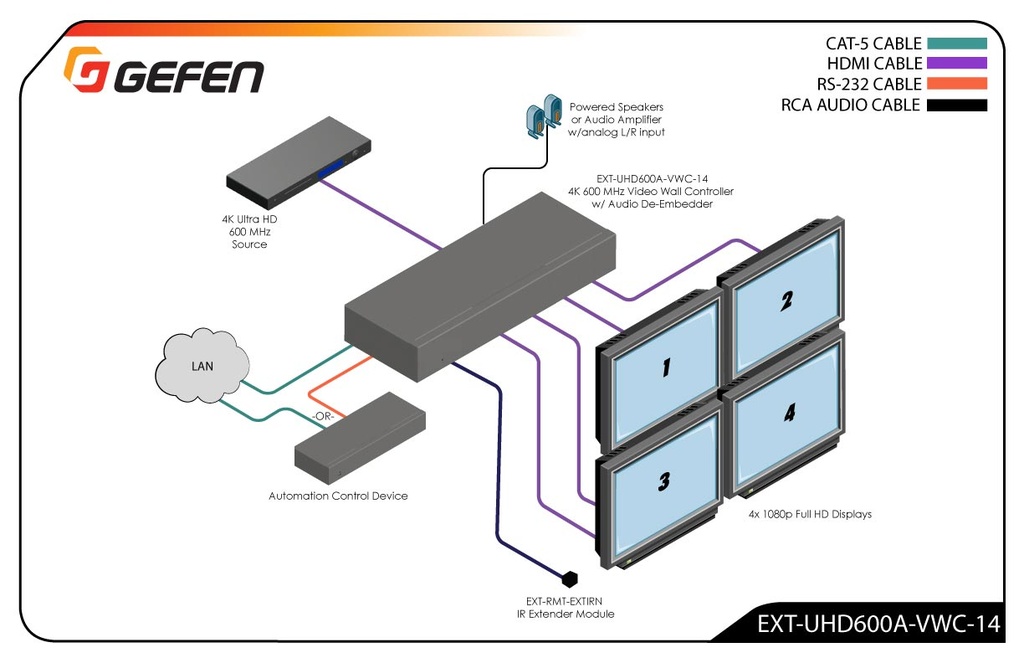

• Accepts a 4K 600 MHz (60 Hz, 4:4:4) input and creates a pixel-by-pixel 4K Ultra HD picture using four Hi-Def 1080p Full HD displays
• Creates pictures in a row or a column, up to a maximum of four displays installed in vertical or horizontal orientation.
• Complete customization of how the input is cropped and outputted to each screen.
• Pictures on each display can also be rotated in 90 degree increments, individually or simultaneously.
• Versatile bezel compensation ability can accommodate any display bezel width.
• Analog L/R Audio Breakout for use with outboard amplification systems
• Easy to use on-screen Graphical User Interface (GUI) and web interface
• Handheld IR remote control
• IR sensor on front panel and IR Extender input on back panel
• Controllable via front panel buttons, IR, IP (web interface, Telnet, and UDP), and RS-232
• Field-updatable firmware using the Gefen Syner-G software
• Locking power supply connector
• 1U tall rack-mountable enclosure, rack ears included

Specifications

Video Input Maximum TMDS Clock: 600 MHz

Video Input Total Signal Bandwidth/Data Rate: 18 Gbps

Input resolution: Up to 4K 60 Hz 4: 4: 4, with HDCP 2.2 and 1.4

Output resolution: Up to 1080p Full HD (60 Hz), with HDCP 1.4

Video Input connector: (1) HDMI Type A, 19-pin, female, locking

Video Output connectors: (4) HDMI Type A, 19-pin, female, locking

Analog Audio Output connectors: (2) RCA jacks

RS-232 connector: (1) DB-9, female

IP Control connector: (1) RJ-45, shielded

USB Connector: (1) Mini-B

IR In/Ext Connector: (1) 3.5mm stereo mini-phone jack

IR Extender type: EXT-RMT-EXTIRN

Menu Navigation buttons: (6) tact-type, blue backlight

Power Supply Connector: 3-pin locking plug

Power Supply: 12V DC

Power Consumption: 12W Maximum

IR Remote Battery: 1x CR2025, Lithium

Operating Temperature: +32 to +122 °F (0 to +50 °C)

Operating Humidity: 5% to 90% RH, non-condensing

Storage Temperature: -4 to +185 °F (-20 to +85 °C)

Storage Humidity: 0% to 95% RH, non-condensing

MTBF: 50000 hours

Dimensions (W x H x D, not including connectors):

Without Rack Ears: 15.3� x 1.7� x 8.9� (389mm x 43mm x 226mm)

: With (more…)

Other Specifications

General

• FamilyAudio/Video
• Rack MountableF
• Rack Ears IncludedF

Shipping Info

• Length21 (Inches)
• Width12.7 (Inches)
• Height6.2 (Inches)
• Weight8.85 (Lbs)
• Unit of MeasurePackage
• UPC888814999877
• 4K 600 MHz 1×4 Video Wall Controller (EXT-UHD600A-VWC-14)1
• 6 ft. Locking HDMI Cable (CAB-HD-LCK-06MM)1
• 6 ft. DB-9 Cable (CAB-DB9-6MF)1
• IR Extender Module (EXT-RMT-EXTIRN)1
• Rack Ears2
• Rack-Ear-to-Enclosure Mounting Screws4
• Handheld IR Remote (RMT-VWC-14A)1
• EXT-UHD600A-VWC-141
• Quick-Start Guide1

Other Specifications

• Video Input Maximum TMDS Clock 600 MHz
• Video Input Total Signal Bandwidth/Data Rate 18 Gbps
• Input resolution Up to 4K 60 Hz 444, with HDCP 2.2 and 1.4
• Output resolution Up to 1080p Full HD (60 Hz), with HDCP 1.4
• Video Input connector (1) HDMI Type A, 19-pin, female, locking
• Video Output connectors (4) HDMI Type A, 19-pin, female, locking
• Analog Audio Output connectors (2) RCA jacks
• RS-232 connector (1) DB-9, female
• IP Control connector (1) RJ-45, shielded
• USB Connector (1) Mini-B
• IR In/Ext Connector (1) 3.5mm stereo mini-phone jack
• IR Extender type EXT-RMT-EXTIRN
• Menu Navigation buttons (6) tact-type, blue backlight
• Power Supply Connector 3-pin locking plug
• Power Supply 12V DC
• Power Consumption 12W Maximum
• IR Remote Battery 1x CR2025, Lithium
• Operating Temperature +32 to +122 °F (0 to +50 °C)
• Operating Humidity 5% to 90% RH, non-condensing
• Storage Temperature -4 to +185 °F (-20 to +85 °C)
• Storage Humidity 0% to 95% RH, non-condensing
• MTBF 50000 hours
• Dimensions (W x H x D, not including connectors) Without Rack Ears: 15.3″ x 1.7″ x 8.9″ (389mm x 43mm x 226mm)
• With Rack Ears: 18.9″ x 1.7″ x 8.9″ (480mm x 43mm x 226mm)
• Unit Weight 5.4 lbs (2.5 kg)
• Shipping Weight 10 lbs (4.6 kg)
• * Features and specifications are subject to change without notice.

3 year product warranty
