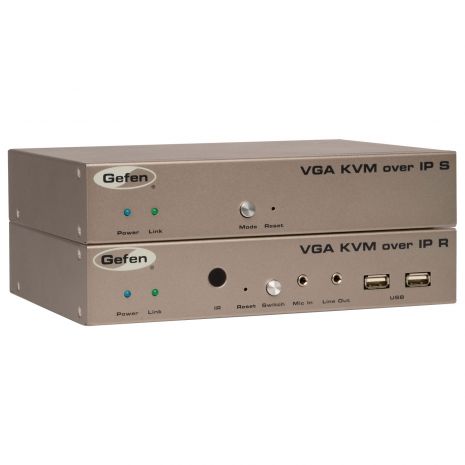

Gefen VGA KVM over IP – Receiver Package
https://www.aptech.com.au/shop/ext-vgakvm-lanrx-gefen-vga-kvm-over-ip-receiver-package-390 https://www.aptech.com.au/web/image/product.template/390/image_1920?unique=2a48408Extend and Distribute HDMI, USB, RS-232, IR, and 2-way audio over a Local Area Network using any combination of HDMI, DVI, and VGA Senders and Receivers
This product is no longer available.

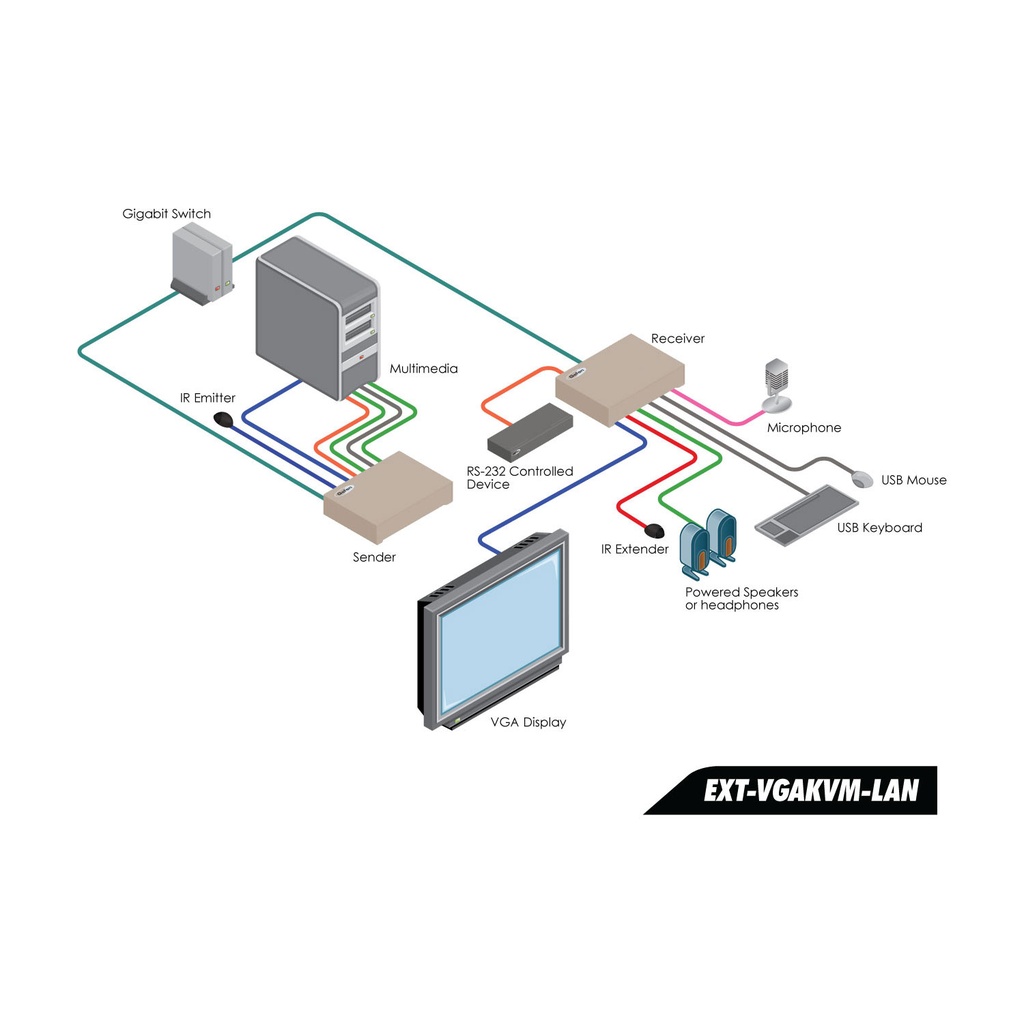

The VGA KVM over IP extends VGA, USB, 2-way analog audio, RS-232, and
IR, over a Gigabit Local Area Network. Resolutions up to 1920 x 1200
(WUXGA) are supported. The Sender and Receiver units can be
automatically or manually configured to unique IP addresses to allow the
connection of multiple Senders and Receivers to the same network.
Multiple Receiver units can simultaneously connect to any Sender unit
within the network including the Gefen KVM over LAN products with HDMI,
DVI, or VGA video, to create a virtual crosspoint matrix of just over
65,000 Sender and Receiver units total, depending on the network
bandwidth and number of ports on the network switch (see Notes 1 and 2).
Any combination of HDMI, DVI, and VGA Senders and Receivers can be
used. Each Receiver unit has a built-in Ethernet switch and two
additional RJ-45 Ethernet ports to allow for the connection of computers
and other IP-enabled devices. USB 2.0 data rates up to 480 Mbps are
supported in addition to backward-compatibility with USB 1.1. Each
Receiver unit provides two USB ports with up to 500mA current draw per
connector, providing access to keyboard, mouse, and other compatible
devices.
- Extends VGA, USB, RS-232, bi-directional stereo analog audio, and IR over IP, using a Gigabit Local Area Network
- Any combination of HDMI, DVI, and VGA Senders and Receivers can be used
- Supports resolutions up to 1920 x 1200 (WUXGA)
- Built-in Web interface for each Sender and Receiver unit provides intuitive control of all features
- Any of the Senders within a network can be accessed by any Receiver unit via a web browser on a mobile device or computer, or by using the Gefen Keyboard Switching Controller software (available for download at www.gefen.com)
- Supports a total of just over 65,000 Sender and Receiver units, depending on the network bandwidth and number of ports on your network switch
- USB 2.0 data rates up to 480 Mbps and backward-compatibility with USB 1.1
- Three-port Gigabit Ethernet switch built into the Receiver unit
- Switch between all available Sender units using the built-in Web interface
- Mode button on Sender for sharpness or motion optimization of image
- Field-upgradable firmware via web server interface
- Locking power supply connectors
- 1U tall, half-rack width enclosures are rack-mount
Maximum Video Bandwidth: 350 MHz

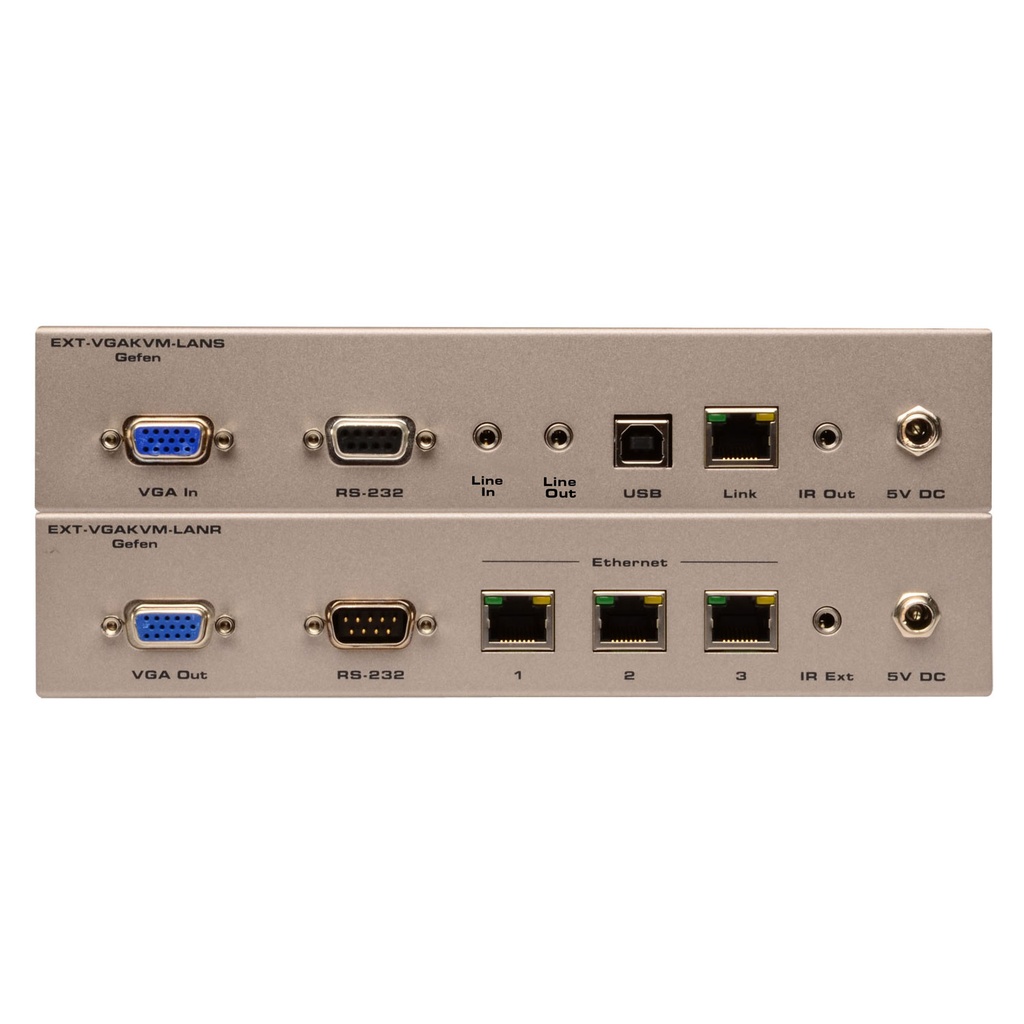

Video Input Connector (Sender): (1) VGA HD-15, female
Video Output Connector (Receiver): (1) VGA HD-15, female
Line Input (Sender): (1) 3.5mm mini-stereo jack
Line Output (Sender): (1) 3.5mm mini-stereo jack
Mic Input (Receiver): (1) 3.5mm mini-stereo jack
Line Output (Receiver): (1) 3.5mm mini-stereo jack
USB Host Interface (Sender): (1) USB Type B, female
USB Device Connectors (Receiver): (2) USB Type A, female
RS-232 Connector (Sender): (1) DB-9, female
RS-232 Connector (Receiver): (1) DB-9, male
IR Emitter (Sender): (1) 3.5mm mini-mono jack
IR Extender (Receiver): (1) 3.5mm mini-stereo jack
IR Extender Type: EXT-RMT-EXTIRN
Ethernet connector (Sender): (1) RJ-45, shielded
Ethernet connectors (Receiver): (3) RJ-45, shielded

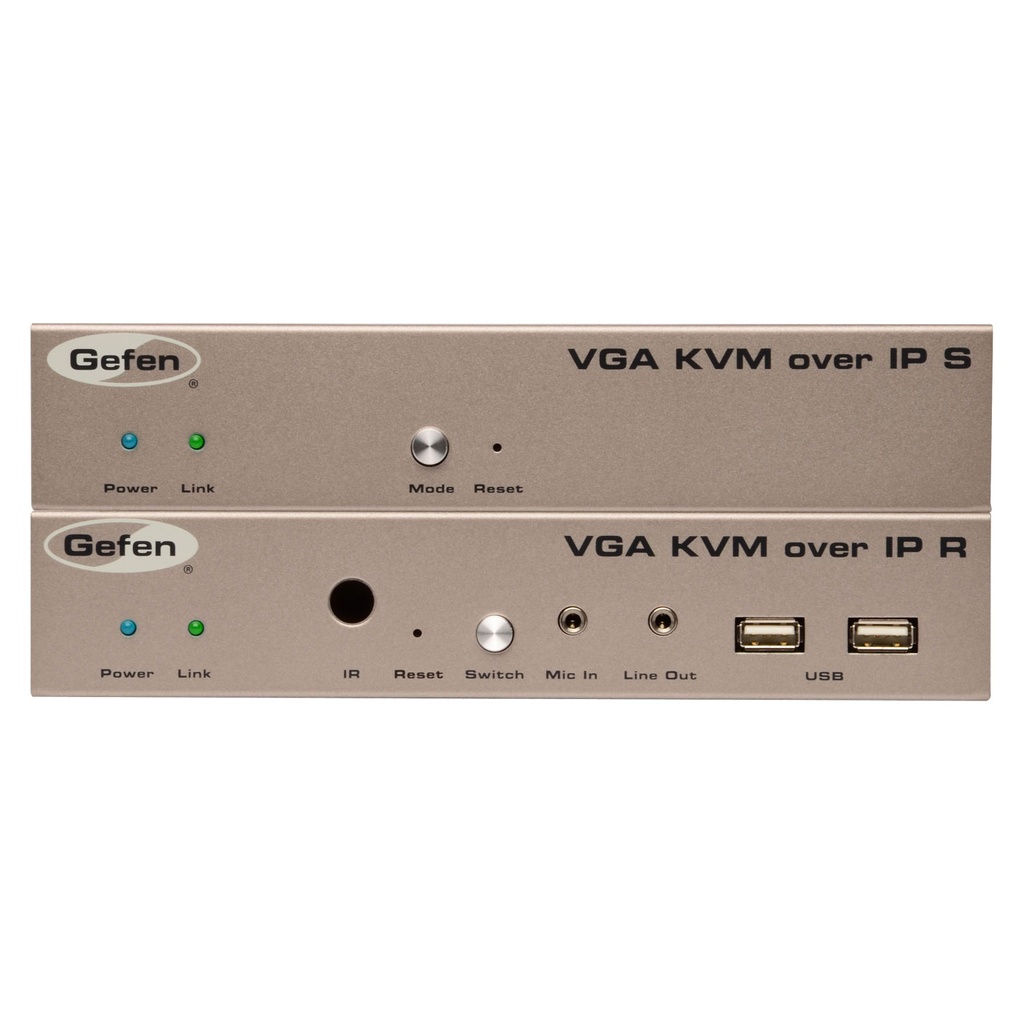

Mode button (Sender): (1) tact-type

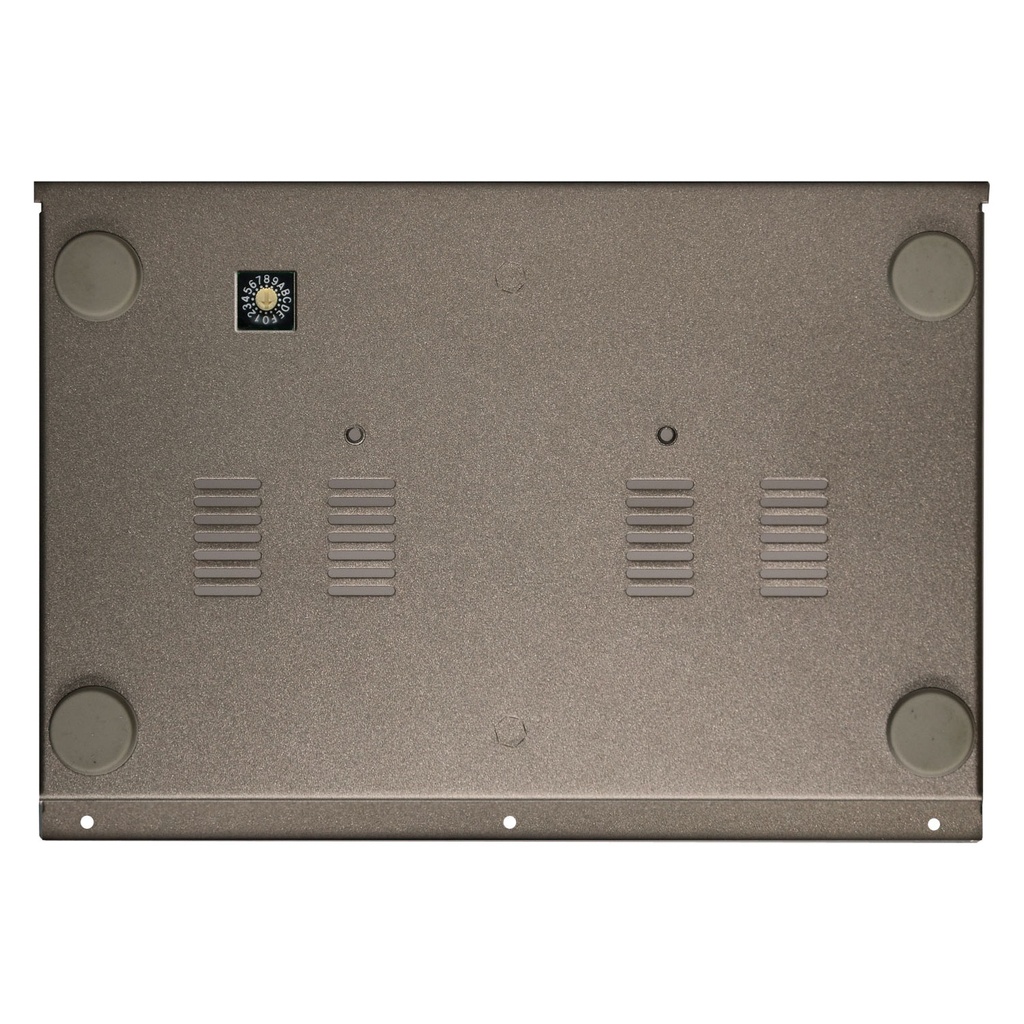

ID Selector switch (Sender): (1) rotary-type
Switch button (Receiver): (1) tact-type
Reset button (Receiver): (1) tact-type, recessed
Link Indicator (Sender/Receiver): (1) LED, green
Power Indicator (Sender/Receiver): (1) LED, blue
Power Consumption (Sender / Receiver): 10W (max.)
Dimensions (Sender / Receiver)
Shipping Info
- Length0 (Inches)
- Width0 (Inches)
- Height0 (Inches)
- Weight0 (Lbs)
- UPC845344042060
- Maximum Video Bandwidth: 350 MHz
- Video Input Connector (Sender): (1) VGA HD-15, female
- Video Output Connector (Receiver): (1) VGA HD-15, female
- Line Input (Sender): (1) 3.5mm mini-stereo jack
- Line Output (Sender): (1) 3.5mm mini-stereo jack
- Mic Input (Receiver): (1) 3.5mm mini-stereo jack
- Line Output (Receiver): (1) 3.5mm mini-stereo jack
- USB Host Interface (Sender): (1) USB Type B, female
- USB Device Connectors (Receiver): (2) USB Type A, female
- RS-232 Connector (Sender): (1) DB-9, female
- RS-232 Connector (Receiver): (1) DB-9, male
- IR Emitter (Sender): (1) 3.5mm mini-mono jack
- IR Extender (Receiver): (1) 3.5mm mini-stereo jack
- IR Extender Type: EXT-RMT-EXTIRN
- Ethernet connector (Sender): (1) RJ-45, shielded
- Ethernet connectors (Receiver): (3) RJ-45, shielded
- Mode button (Sender): (1) tact-type
- ID Selector switch (Sender): (1) rotary-type
- Switch button (Receiver): (1) tact-type
- Reset button (Receiver): (1) tact-type, recessed
- Link Indicator (Sender/Receiver): (1) LED, green
- Power Indicator (Sender/Receiver): (1) LED, blue
- Power Consumption (Sender / Receiver): 10W (max.)
- Dimensions (Sender / Receiver) (W x H x D): 8.4" x 1.7" x 4.5" (213mm x 43mm x 113mm)
- Shipping Weight:
- EXT-VGAKVM-LAN: 8.3 lbs. (3.8 kg)
- EXT-VGAKVM-LANTX: 5.7 lbs. (3.0 kg)
- EXT-VGAKVM-LANRX: 4.6 lbs. (2.0 kg)
- L-Shaped Mounting Brackets with screws1
- Quick-Start Guide for VGA KVM over IP Receiver package1
- 5VDC Power Supply – 2.6 AMP – locking type- interchangeable connectors (US,UK,EU,AU) (EXT-PS526AIP-LP)1
Gefen EXT-VGAKVM-LAN Datasheet
Gefen EXT-VGAKVM-LANRX Manual
3 year product warranty
Please see the Gefen warranty page for more details
Gefen EXT-CU-LAN Datasheet
Gefen EXT-CU-LAN Manual
Gefen EXT-CU-LAN Declaration of Conformity1
