Gefen DVI FM 2000 Extender (Dual Link)

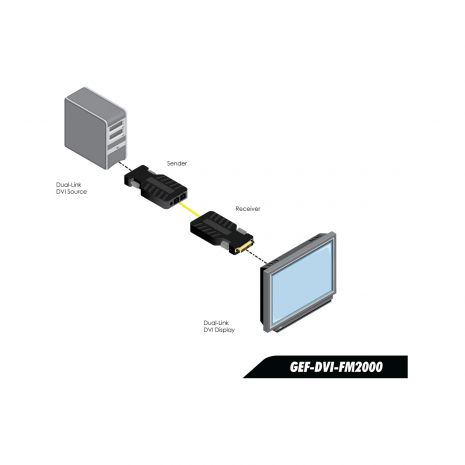

• Extends any Dual-link DVI source up to 1000 feet (330 meters) over multi-mode 50/125 fiber cable



• Supports 1080p Full HD at 120Hz and dual-link resolutions up to 3840 x 2400



• Fiber optic transmission eliminates electromagnetic interference (EMI)



• Compact Sender module and Receiver module provide a clean, easy installation.



• Sender module does not require power if the DVI source provides sufficient power on pin 14 of the DVI connector (most sources do)



• HDCP pass-through


Specifications

Maximum Pixel Clock: 2 x 165 MHz

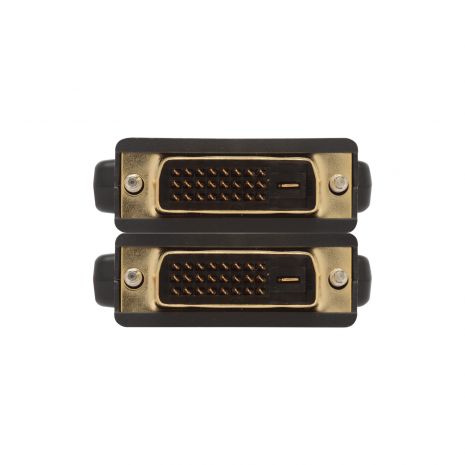

Video Input Connector (Sender): (1) DVI-D 24-pin, male

Video Output Connector (Receiver): (1) DVI-D 24-pin, male

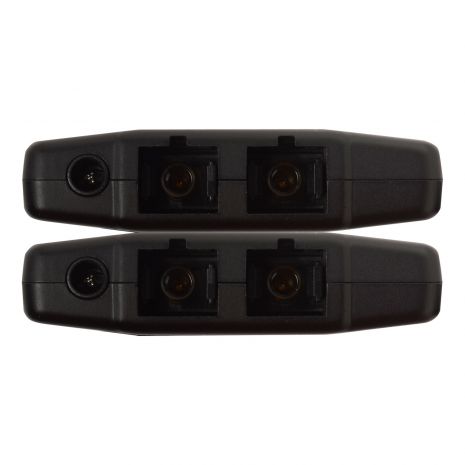

Fiber Optic Connectors (Sender / Receiver): (2) Type SC fiber connector

Fiber Cable: CAB-2SC-150-M (50? multi-mode)

Power Supply (Receiver): 5V DC (Sender power supply optional)

Power Consumption (Receiver): 1.3W (max.)

Operating Temperature: 0 ° – 50 ° C

Storage Temperature: -20 ° – 50 ° C

Dimensions: 2" W x 3" D x 0.6" H

Shipping Weight: 1 lb.

Other Specifications

Shipping Info

• Length7.5 (Inches)
• Width5.25 (Inches)
• Height2.5 (Inches)
• Weight1 (Lbs)
• UPC845344015514

Other Specifications

• Maximum Pixel Clock: 2 x 165 MHz
• Video Input Connector (Sender): (1) DVI-D 24-pin, male
• Video Output Connector (Receiver): (1) DVI-D 24-pin, male
• Fiber Optic Connectors (Sender / Receiver): (2) Type SC fiber connector
• Fiber Cable: CAB-2SC-150-M (50° multi-mode)
• Power Supply (Receiver): 5V DC (Sender power supply optional)
• Power Consumption (Receiver): 1.3W (max.)
• Operating Temperature: 0 ° – 50 ° C
• Storage Temperature: -20 ° – 50 ° C
• Dimensions: 2" W x 3" D x 0.6" H
• Shipping Weight: 1 lb.

In The Box

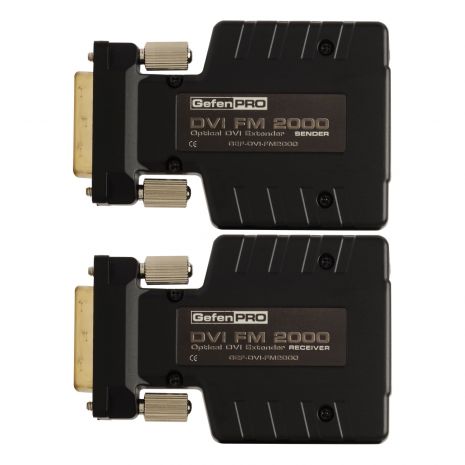

• DVI FM 2000 – Sender unit (GEF-DVI-FM2000S)(1)
• DVI FM 2000 – Receiver unit (GEF-DVI-FM2000R)(1)
• 5V DC power supply (EXT-PS52AIP-1.3)(1)
• Quick Start Guide (QSG-GEF-DVI-FM2000)(1)

2 year product warranty

Please see the Gefen warranty page for more details
