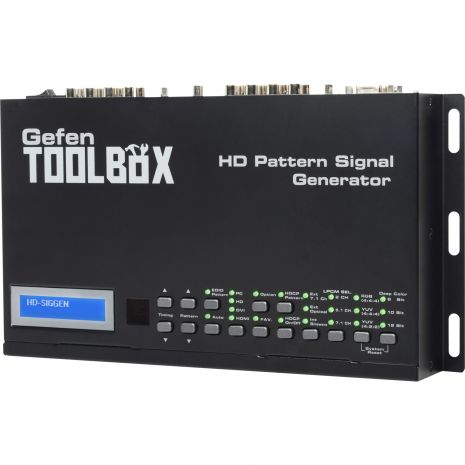

Gefen HD Pattern Signal Generator

• Multi-format video output for SD and HD video up to 1080p
• PC/HD resolutions up to UXGA / WUXGA (1920 x 1200)
• 39 timings, 41 patterns, and 4 data analysis patterns
• Supports RGB 4:4:4, YCbCr 4:4:4, and YCbCr 4:4:2 color spaces
• Supports NTSC and PAL frame rates
• 2 CH, 5.1 CH, and 7.1 CH LPCM internal sine wave generator
• RS-232 control via the downloadable software from the Gefen Web site
• Small form factor; easy to transport
• Supports HD timings for VGA output
• HDCP Pattern
• Supports reading and copying EDID functionality
• User Friendly Interface – LCD Display, LED indicators and Software
• Deep Color support up to 12-bit
• HDMI 1.3 and DVI 1.0 Compliant
• HDCP Compliant

Specifications

Maximum Pixel Clock: 225 MHz

Input Video Signal: 1.2V p-p

Input DDC Signal: 5V p-p (TTL)

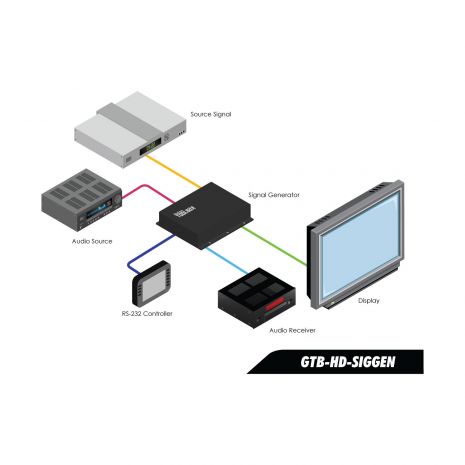

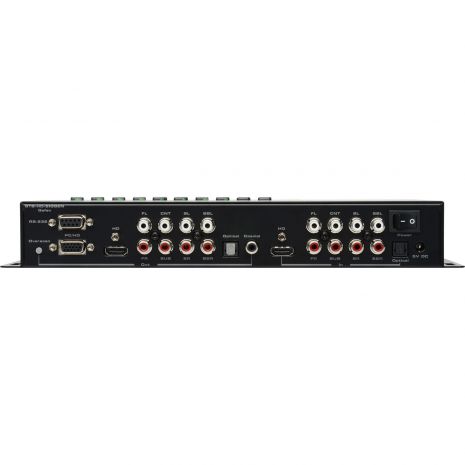

Video Input: (1) HDMI Type-A 19-pin, female

Analog Video Outputs: (1) HD-15, female VGA/PC/HD (supports Component Video with VGA Adapter)

Digital Video Outputs: (1) HDMI Type-A 19-pin, female (supports DVI with HDMI-to-DVI adapter)

Analog Audio Inputs: FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type)

Analog Audio Outputs: FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type)

Digital Audio Input: (1) TOSLINK

Digital Audio Outputs: (1) TOSLINK, (1) S/PDIF

Analog Audio Input Impedance: 10 kOhms

Frequency Response: 20 Hz – 20 kHz ( ± 0.5 dB)

SNR: > 90 dB

THD: < 0.001% at 1 kHz (2 V rms)

Crosstalk: > 90 dB

RS-232 Port: DB-9, female

Power Supply: 5V DC

Power Consumption: 13 W (max.)

Dimensions: 11.0″ W x 6.5″ H x 1.7.5″ D

Shipping Weight: 6 lbs.

Other Specifications

Shipping Info

• Length13.38 (Inches)
• Width8.25 (Inches)
• Height3.5 (Inches)
• Weight5.1 (Lbs)
• UPC845344005102

Other Specifications

• Maximum Pixel Clock: 225 MHz
• Input Video Signal: 1.2V p-p
• Input DDC Signal: 5V p-p (TTL)
• Video Input: (1) HDMI Type-A 19-pin, female
• Analog Video Outputs: (1) HD-15, female VGA/PC/HD (supports Component Video with VGA Adapter)
• Digital Video Outputs: (1) HDMI Type-A 19-pin, female (supports DVI with HDMI-to-DVI adapter)
• Analog Audio Inputs: FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type)
• Analog Audio Outputs: FL, FR, C, LFE, SL, SR, SSL, SSR (RCA type)
• Digital Audio Input: (1) TOSLINK
• Digital Audio Outputs: (1) TOSLINK, (1) S/PDIF
• Analog Audio Input Impedance: 10 kOhms
• Frequency Response: 20 Hz – 20 kHz ( ± 0.5 dB)
• SNR: > 90 dB
• THD: < 0.001% at 1 kHz (2 V rms)
• Crosstalk: > 90 dB
• RS-232 Port: DB-9, female
• Power Supply: 5V DC
• Power Consumption: 13 W (max.)
• Dimensions: 11.0″ W x 6.5″ H x 1.7.5″ D
• Shipping Weight: 6 lbs.

In The Box

• GefenToolBox HD Pattern Signal Generator(1)
• 6 ft. HDMI cable (M-M)(1)
• IR Remote (1)
• 5 V DC Locking Power Supply (EXT-PS526AIP)(1)
• User Manual(1)

2 year product warranty

Please see the Gefen warranty page for more details
