- Extends HDMI, RS-232, and 2-way IR over a single CAT-5e/CAT-6A
- 4K Ultra HD (3840 x 2160 @ 60Hz, 4:2:0, 8-bit), up to 330 feet/100 meters
- 4K Ultra HD (3840 x 2160 @ 30Hz, 4:4:4, 8-bit), up to 330 feet/100 meters
- 4K Cinema (DCI) (4096 x 2160 @ 24 or 30Hz 4:4:4, 8-bit), up to 330 feet/100 meters
- 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 12-bit), up to 330 feet/100 meters
- 1080p Full HD (1920 x 1080 @ 60Hz, 4:4:4, 8-bit), up to 495 feet/150 meters
- HDMI Features Supported:
- HDMI 2.0
- HDCP 2.2 and 1.4
- 12-bit Deep Color
- LPCM 7.1 audio, Dolby Atmos®, Dolby® TrueHD, DTS:X, and DTS-HD Master
Audio pass-through - 3DTV pass-through
- CEC pass-through
- Lip Sync pass-through
- IR extension from Sender to Receiver and from Receiver to Sender
- Gefen Bi-Directional POL feature provides power to the Sender or the Receiver unit over the link cable – only one side will need external power
- Uses Gefen€™s implementation of HDBaseT technology with enhanced features
- Advanced EDID Management
- Firmware updatable via RS-232
- Locking power connector

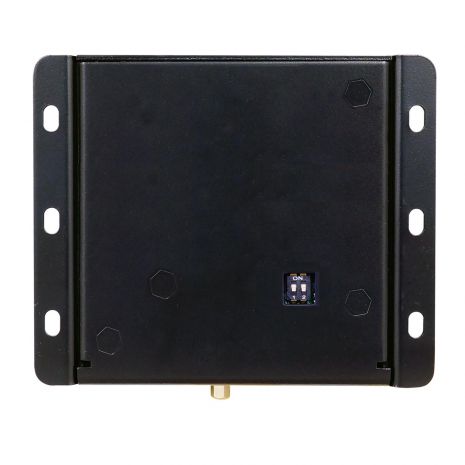

- Surface mountable
Specifications
Maximum Pixel Clock: 300 MHz

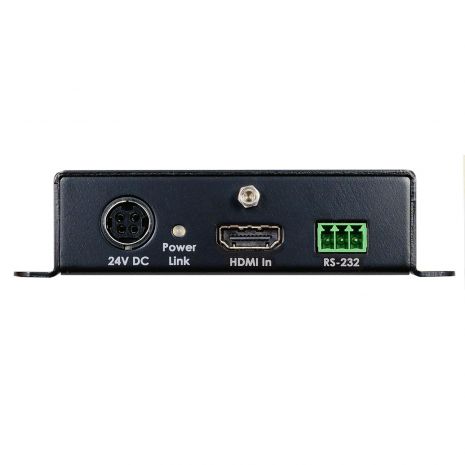

Video Input connector (Sender): (1) HDMI Type A 19-pin, female, locking

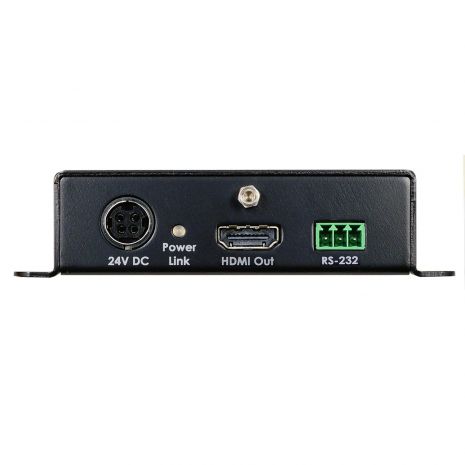

Video Output connector (Receiver): (1) HDMI Type A 19-pin, female, locking

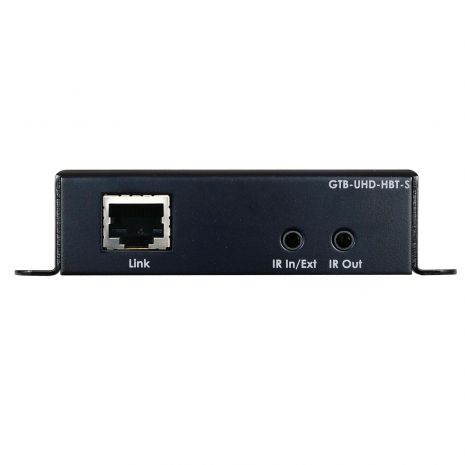

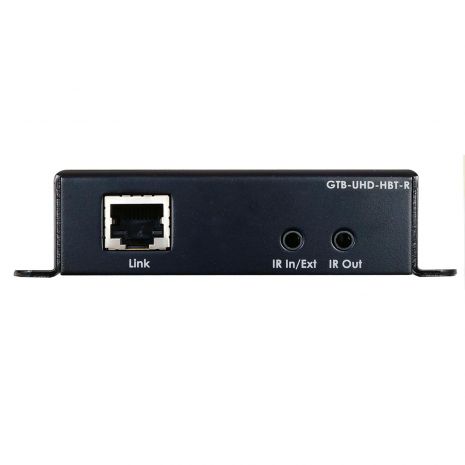

Link connector (Sender/Receiver): (1) RJ-45, shielded
RS-232 port (Sender): (1) 3-pin Phoenix – DB-9 adaptor cable included
RS-232 port (Receiver): (1) 3-pin Phoenix – DB-9 adaptor cable included
IR Ext/In port (Sender/Receiver): (1) 3.5mm mini-stereo jack
IR Extender type: EXT-RMT-EXTIRN
IR Out port (Sender/Receiver): (1) 3.5mm mini-mono jack
Power/Link Indicator LED (Sender/Receiver): (1) Bi-color: Blue/Green
Power Supply : (1) 24V DC, locking
Power Consumption (Sender and Receiver combined): 12W maximum
Operating Temperature: +32 to +122 °F (0 to +50 °C)
Operating Humidity: 5% to 90% RH, non-condensing
Storage Temperature: -4 to +185 °F (-20 to +85 °C)
Storage Humidity: 0% to 95% RH, non-condensing
MTBF: 50000 hours
Dimensions (W x H x D, Sender/Receiver):
4.3″ x 1″ x 3.2″ (110mm x 26mm x 85mm)
Net Weight (Sender/Receiver): 0.4 lbs (0.2 kg) each
Shipping Weight: 2.6 lbs. (1.2 kg)
Other Specifications
Shipping Info
- Length4.25 (Inches)
- Width12.1 (Inches)
- Height6 (Inches)
- Weight2.3 (Lbs)
- Unit of MeasureSet
- UPC888814999549
Other Specifications
- Maximum Pixel Clock 300 MHz
- Video Input connector (Sender) (1) HDMI Type A 19-pin, female, locking
- Video Output connector (Receiver) (1) HDMI Type A 19-pin, female, locking
- Link connector (Sender/Receiver) (1) RJ-45, shielded
- RS-232 port (Sender) (1) 3-pin Phoenix – DB-9 adaptor cable included
- RS-232 port (Receiver) (1) 3-pin Phoenix – DB-9 adaptor cable included
- IR Ext/In port (Sender/Receiver) (1) 3.5mm mini-stereo jack
- IR Extender type EXT-RMT-EXTIRN
- IR Out port (Sender/Receiver) (1) 3.5mm mini-mono jack
- Power/Link Indicator LED (Sender/Receiver) (1) Bi-color: Blue/Green
- Power Supply (1) 24V DC, locking
- Power Consumption (Sender and Receiver combined) 12W maximum
- Operating Temperature +32 to +122 °F (0 to +50 °C)
- Operating Humidity 5% to 90% RH, non-condensing
- Storage Temperature -4 to +185 °F (-20 to +85 °C)
- Storage Humidity 0% to 95% RH, non-condensing
- MTBF 50000 hours
- Dimensions (W x H x D, Sender/Receiver) 4.3″ x 1″ x 3.2″ (110mm x 26mm x 85mm)
- Net Weight (Sender/Receiver) 0.4 lbs (0.2 kg) each
- Shipping Weight2.6 lbs. (1.2 kg)
3 year product warranty
If the product was purchased before March 29, 2017, the warranty duration is 2 years.
Please see the Gefen warranty page for more details

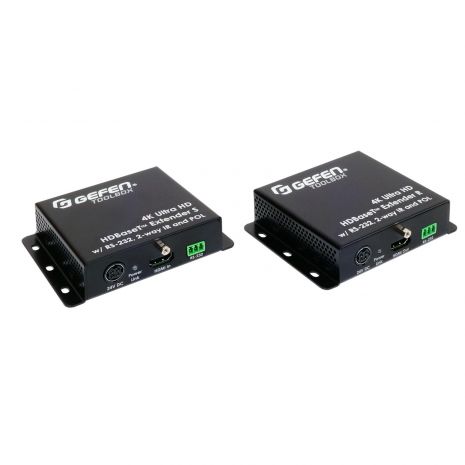

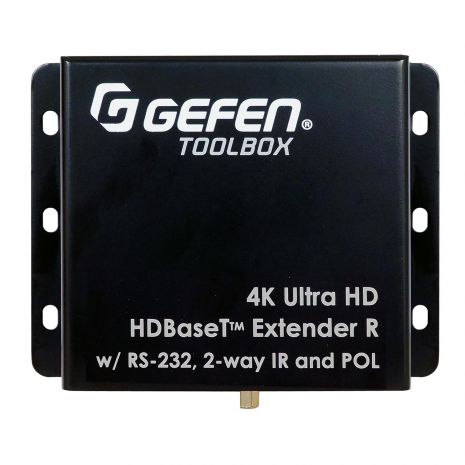

The GTB-UHD-HBT 4K Ultra HD Extender uses Gefens implementation of the latest HDBaseT technology to extend HDMI up to 495 feet/150 meters at 1080p (8 bits) and up to 330 feet/100 meters at 4K. Small, low profile enclosures can be securely surface-mounted and conveniently hidden away from sight.
Video Support
Resolutions up to 4K Ultra HD (3860 x 2160 at 60 Hz, 4:2:0) are supported. This product is compliant with the latest HDCP 2.2 protocol as well as HDCP 1.4.
Audio Support
The GTB-UHD-HBT supports Stereo and Multichannel digital audio including 7.1 channels of LPCM as well as High Bit Rate (HBR) digital audio formats such as Dolby® TrueHD and DTS-HD Master Audio. TOSLINK® Optical Digital Audio can be sent from the display side back to the source and analog audio can be extended from the source side to the Receiver.
IP & Serial Extension

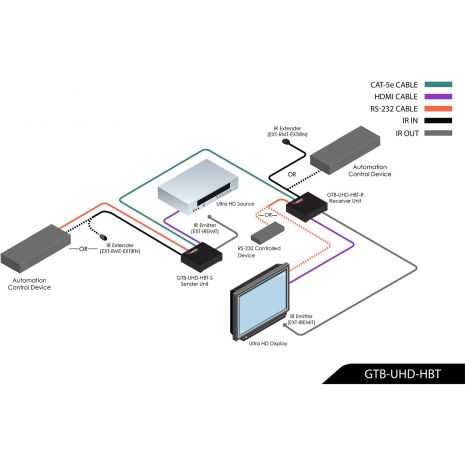

This product provides RS-232 and 2-way IR extension between the Sender and the Receiver units, facilitating the control of A/V sources placed near the Sender unit and sending automation commands to the display or another device placed near the Receiver unit.
Bi-Directional Power Over HDBaseT
Gefen Bi-Directional POL (Power Over L(more…)
