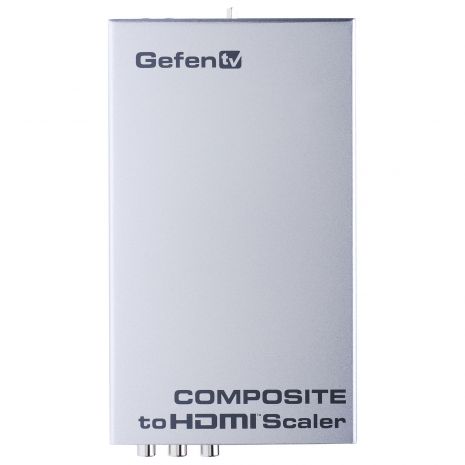

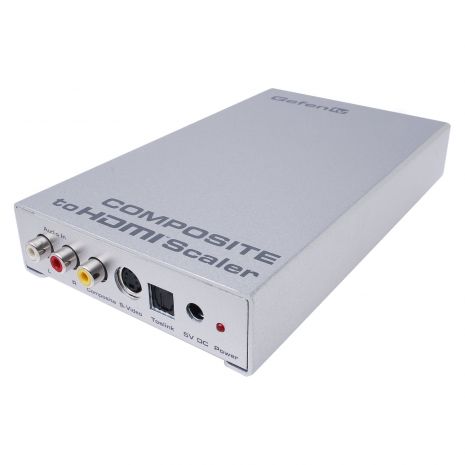

Gefen Composite to HDMI Scaler

• Inputs S-Video or Composite Video at 480i or 576i resolutions

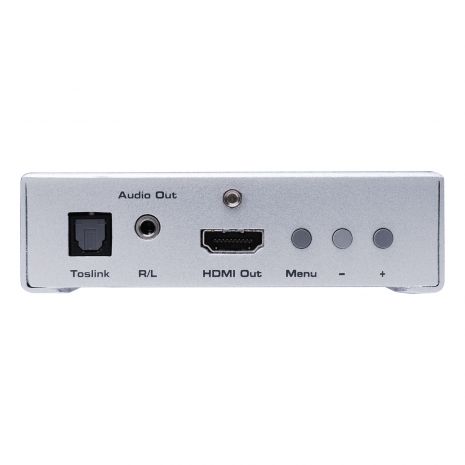

• Outputs HDMI video at resolutions of up to 1080p
• Input resolution is automatically detected while the output resolution and refresh rate can be selected via the on-screen display (OSD) menu system and front panel push-buttons
• 48MB frame buffer for frame rate conversion
• Scales Composite Video and S-Video to HDMI with embedded audio
• Supports video output resolutions for computer equipment at up to 1920×1200

Maximum Pixel Clock: 165 MHz

Video Amplifier Bandwidth: 10 MHz

Input DDC Signal: 5 Volts p-p (TTL)

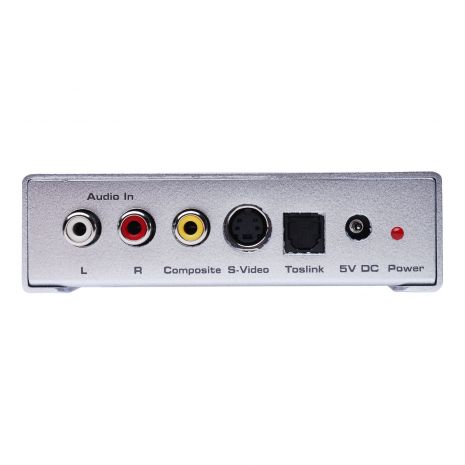

S-Video Connector: Mini-DIN

Composite Connector: RCA Jack

Power Consumption: 10 Watts (max)

Power Supply: 5V 2.6A DC, non-locking plug (2.1mm pin, 5.5mm barrel)

Dimensions: (W X H X D): 4.1″ x 1.2″ x 7″ (104.2mm x 30mm x 178mm)

Shipping Info

• Length12 (Inches)
• Width6 (Inches)
• Height4.25 (Inches)
• Weight2.6 (Lbs)
• UPC845344062808

Other Specifications

• Maximum Pixel Clock: 165 MHz
• Video Amplifier Bandwidth: 10 MHz
• Input DDC Signal: 5 Volts p-p (TTL)
• S-Video Connector: Mini-DIN
• Composite Connector: RCA Jack
• Power Consumption: 10 Watts (max)
• Power Supply: 5V 2.6A DC, non-locking plug (2.1mm pin, 5.5mm barrel)
• Dimensions(W X H X D): 4.1″ x 1.2″ x 7″ (104.2mm x 30mm x 178mm)

In The Box

• Composite To HDMI Scaler(1)
• 6 ft. RCA Composite Cable (M-M)(1)
• 5V 2.6A DC Power Supply, non-locking plug (2.1mm pin, 5.5mm barrel)(1)
• Quick Start Guide(1)

2 year product warranty
