Gefen 4x1 Switcher for HDMI with RS232

Switch between any of four HDMI inputs to one HDMI output

This product is no longer available.

SKU: GTV-HDMI1.3-441N

Description

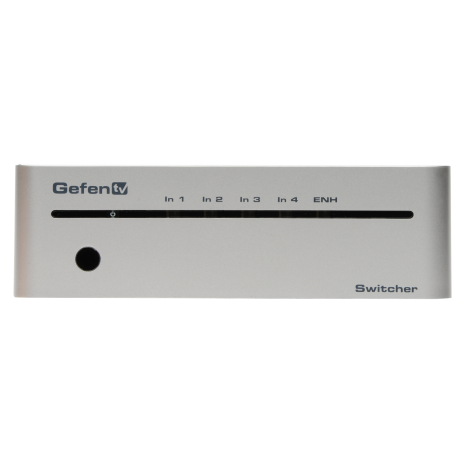

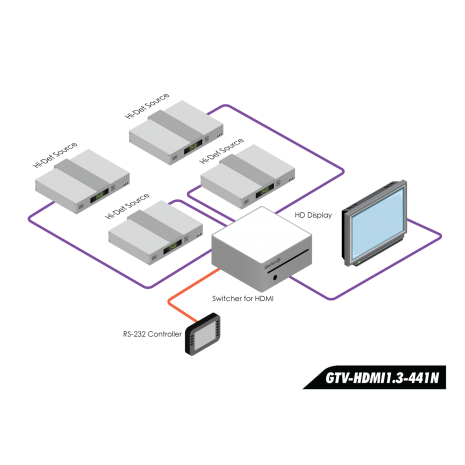

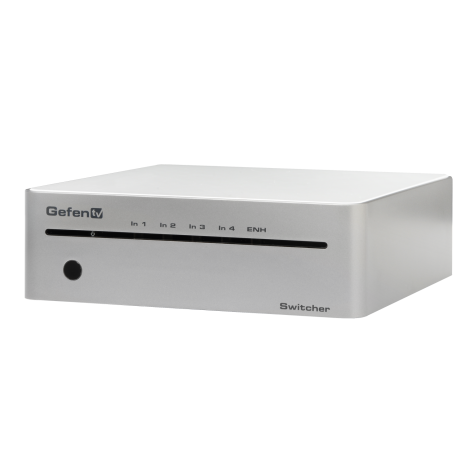

The GefenTV 4×1 Switcher for HDMI with RS232 switches between any of four Hi-Def sources to one HDTV display. Resolutions up to 1080p Full HD with multichannel digital audio are supported. The front panel LEDs show the currently selected source. This 4×1 Switcher has an auto-switching feature: If a new source is connected or turned on, the Switcher will automatically switch to that input. The 4×1 Switcher will revert to the previous input once the current device is turned off or disconnected. An

Specifications

Specifications for Gefen 4x1 Switcher for HDMI with RS232

Brand	Gefen
Product Type	Matrix or Matrix or Splitters or Matrix or Splitters or Switchers or Matrix or Matrix or Splitters or Matrix or Splitters or Switchers

Features

Supports resolutions up to 1080p Full HD and 1920×1200
Supports 3DTV Pass-Through
Supports LPCM 7.1 audio, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
Local Switching / Auto-Switching feature
RS-232 control
IR remote control
Supports DVI sources and DVI displays with an HDMI-to-DVI adapter
Energy Star Compliant

Tech Specs

Specifications

Maximum Pixel Clock: 225 MHz
Input Video Signal: 1.2 Volts p-p
Input DDC Signal: 5 Volts p-p (TTL)

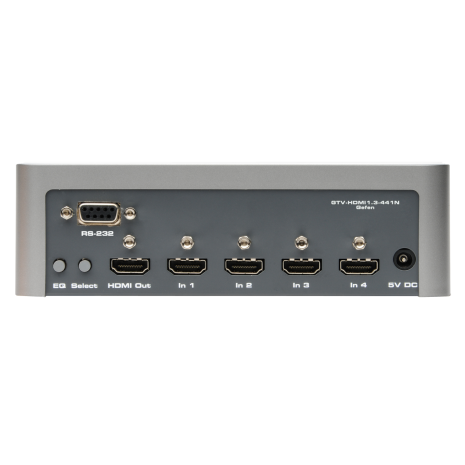

HDMI Input Connectors: (4) Type A, 19-pin female
HDMI Output Connector: Type A, 19-pin female
RS-232 Connector: DB-9 female
Power Supply: 5V DC
Power Consumption: 10 Watts (max)
Operating Temperature: 0 – 40 ½C
Dimensions: 6.9″ W x 2.1″ H x 6.9″ D
Shipping Weight: 6 lbs.

Other Specifications

Shipping Info

Length12.2 (Inches)
Width7.28 (Inches)
Height2.56 (Inches)
Weight3 (Lbs)
UPC845344002491

Other Specifications

Maximum Pixel Clock: 225 MHz
Input Video Signal: 1.2 Volts p-p
Input DDC Signal: 5 Volts p-p (TTL)
HDMI Input Connectors: (4) Type A, 19-pin female
HDMI Output Connector: Type A, 19-pin female
RS-232 Connector: DB-9 female
Power Supply: 5V DC
Power Consumption: 10 Watts (max)
Operating Temperature: 0 – 40 Ã‚ ½C
Dimensions: 6.9″ W x 2.1″ H x 6.9″ D
Shipping Weight: 6 lbs.

In The Box

GefenTV 4×1 Switcher for HDMI with RS232(1)
6 ft. HDMI cables (M-M)(4)
6 ft. Serial DB9 cable (M-F)(1)
IR Remote Control (RMT-4IRN)(1)
5V DC Power Supply(1)
User Manual(1)

Warranty

2 year product warranty

Please see the Gefen warranty page for more details

Resources

Gefen GTV-HDMI1.3-441N Manual

Gefen GTV-HDMI1.3-441N Declaration of Conformity
