Aurora SDVoE Option Card
This product is no longer available.
SKU:
TPG-SDVoE
Brand:
Aurora Multimedia
Days
:
Hours
:
Mins
:
Secs
| Technical | |
| Role of usage | HDMI 2.1 Installation Gear |
| Video bandwidth | Input up to FRL 5 (40G) |
| Output up to FRL 5 (48G) | |
| HDMI compliance | HDMI 2.1 and below |
| HDCP compliance | HDCP 2.3 and below |
| Video Support | up to 8K60 4:2:0 10bits, 8K30 4:4:4 & 4K2K 120Hz |
| ESD protection | Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] |
| Video Format Support | HDMI |
| Input | 1x HDMI |
| Output | 1x HDMI |
| Control | 7” Capacitive Touch Screen & External Mouse Control |
| HDMI connector | Type A [19-pin female] |
| USB Support | Firmware update / Recharge |
| USB connector | USB-C |
| Option Card Slot | SDVoE Option Card Slot (Additional Coming) |
| Mechanical | |
| Housing | Metal Case |
| Dimensions (L x W x H) | TBD |
| Weight | TBD |
| Power Supply | USB-C, PoE+, & Battery |
| Power Consumption | TBD |
| Operation Temperature | 0~40o C [32~104o F] |
| Storage Temperature | -20~60o C [-4~140o F] |
| Relative Humidity | 20~90% RH [No Condensation] |
| Package Contents | 1x TPG-8K (Optional Rack Mount) |
Features:
- Supports video resolution outputs up to 8K60 4:2:0 10bits, 8K30 4:4:4 & 4K2K 120Hz
- Supports HDR, which is 4K2K@60 4:2:0 10-bits/12-bits

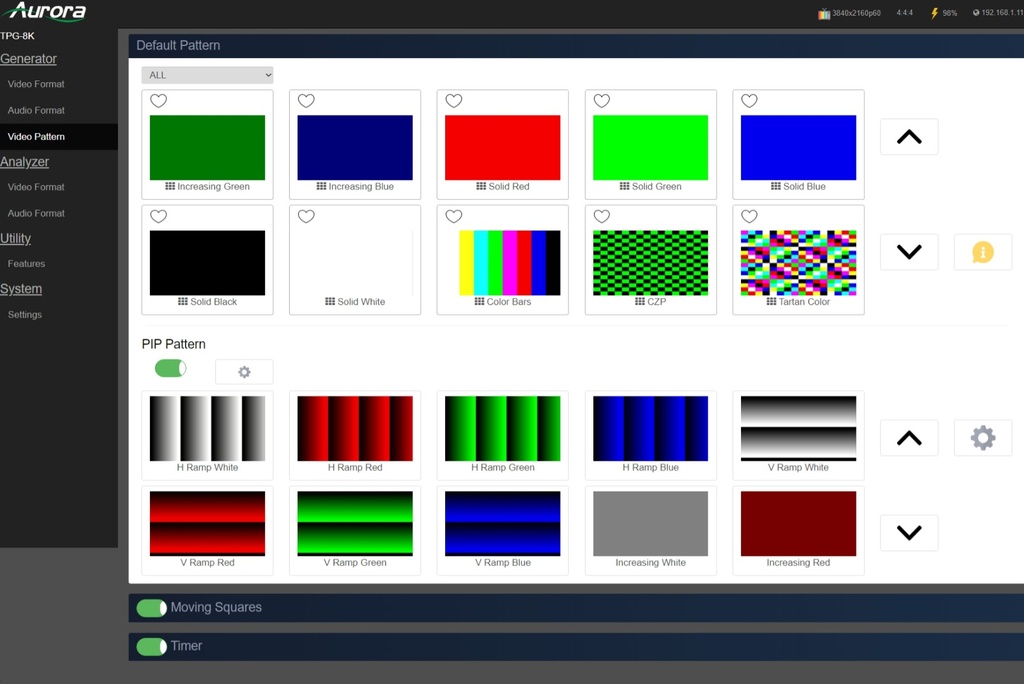

- Built-in motion video patterns
- HDMI input and output support up to HDMI 2.1 & HDCP 1.4/2.3
- Fundamental HDMI feature analysis up to 8K4K@60 4:2:0 8bit HDMI 2.1 input
- HDCP & EDID Analysis
- AV over IP Test Patterns and Latency Analyzer
- Wide frequency range: 25MHz~1188MHz
- 40G Input & 48G Output Video bandwidth

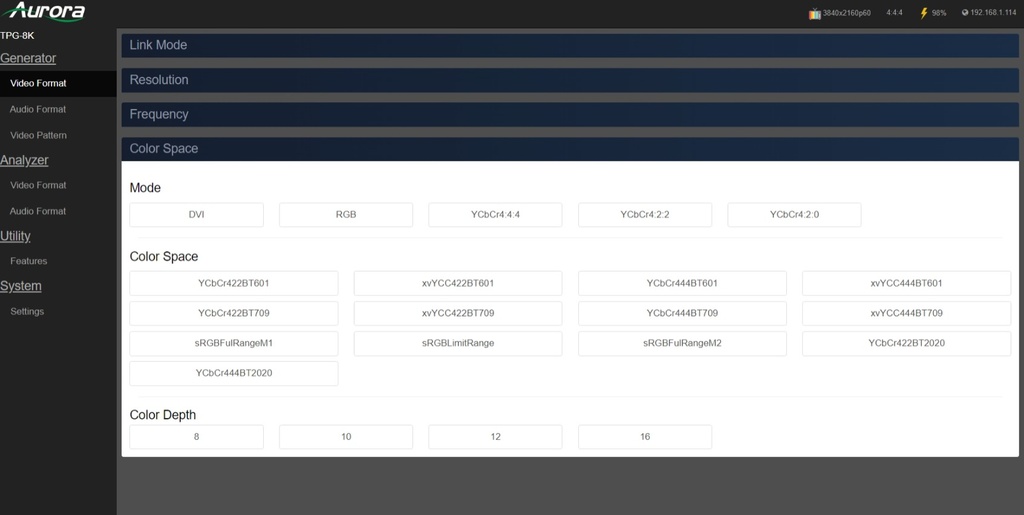

- 7” Capacitive Touch Screen & Web Server for remote control
- Stereo Speakers for Audio Verification
- Battery powered for portability; it can extend operation time with full load up to 3 hours
- PoE+ Power
- Rack Mount Option
About

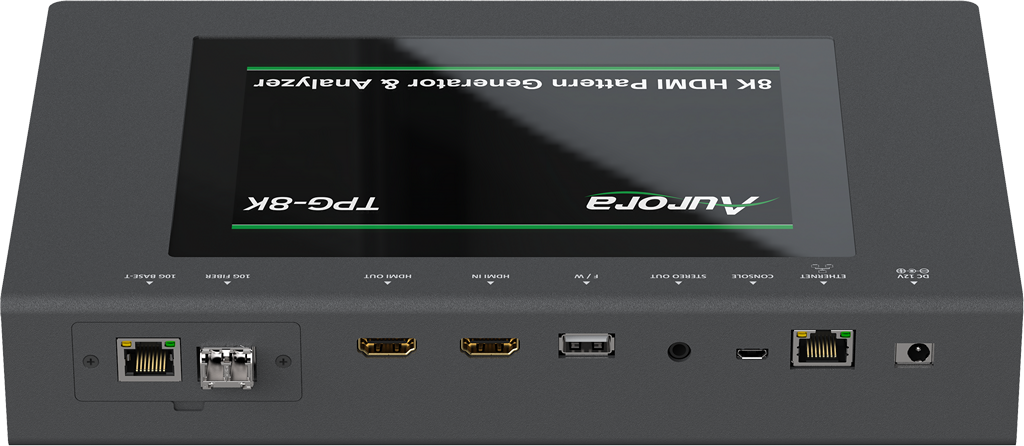

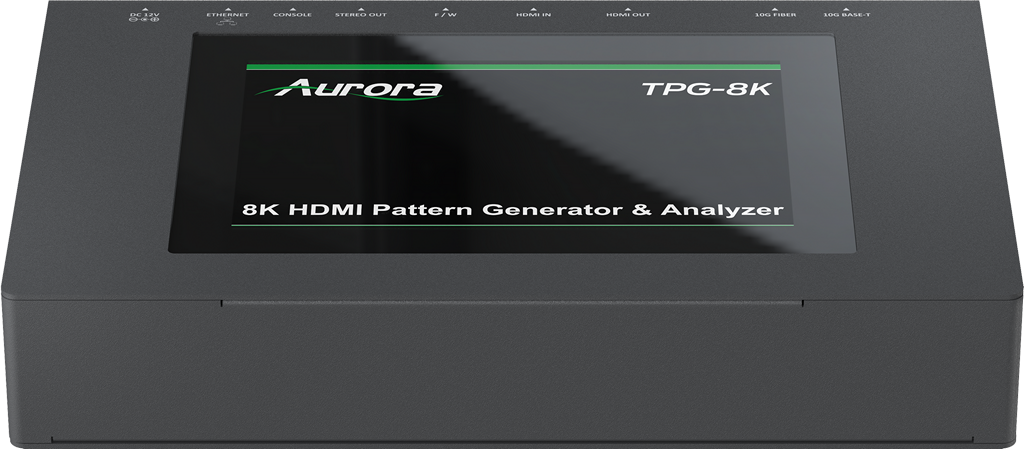

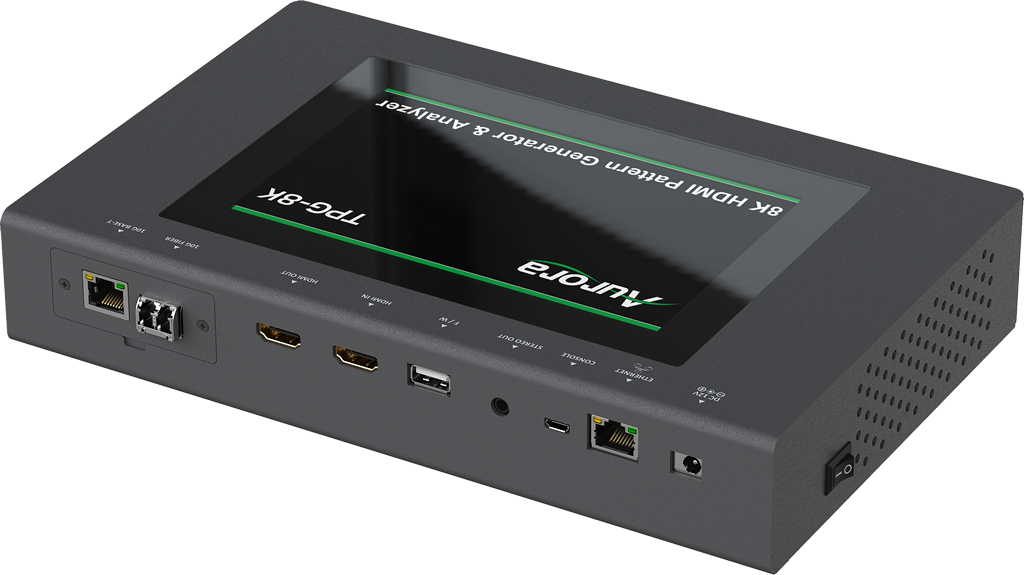

The TPG-8K is the first test 8K test pattern generator with analyzer to focus on AV over IP in addition to HDMI. AVoIP has quickly become the leading distribution for our industry which is why we built a device to properly test the image quality from end to end. The latency performance of the stream is just as important which is why we added the ability to measure end to end latency including the network switch latency. Along with HDMI, HDCP, and EDID analyzing assures an install or lab testing goes smooth and quickly. We even made it rack mountable for use at a headend to send patterns or view content o the HDMI or SDVoE with optional expansion card.
