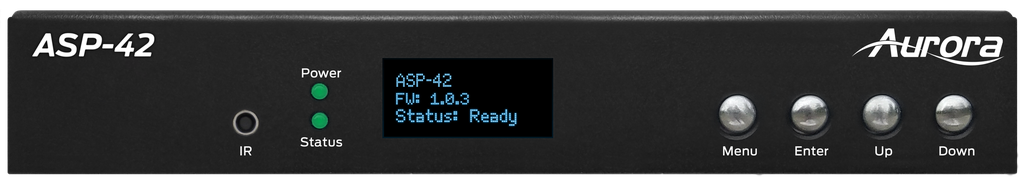

Aurora 4x2 Matrix (4K60 4:4:4) with USB Capture
This product is no longer available.
SKU:
ASP-42
Brand:
Aurora Multimedia
Days
:
Hours
:
Mins
:
Secs
- 4K60 4:4:4 18Gbps Uncompressed
- HDR (high Dynamic Range)
- Four HDMI® 2.0/HDCP 2.2
- Auto Switching
- Four HDMI® Inputs
- Two HDMI® Output
- 1G PoE LAN Port Connection
- USB 3.1 Capture Output for Computer
- IP Port Expansion, RS-232 & IR Control
Technical
| HDMI Inputs | 4 (HDMI 2.0b, HDCP 2.2) |
| HDMI Outputs | 2 (HDMI 2.0b, HDCP 2.2) |
| Audio Analog | Stereo Line In/Out |
| LAN | RJ-45 10/100/1000M PoE |
| Video Bandwidth | 600MHz |
| Video Resolution | Up to 4K2K 4:4:4 @ 60Hz |
| RS-232 | Up to 115k Baud |
| IR | Bi-Directional |
| USB Connector | USB 3.1 Type B |
| Expansion Port | Dante® 2Ch/8Ch and ReAX™ |
| Interface | IR, Front Buttons, Web Server |
| Mechanical | |
| Housing | Black Aluminum Enclosure |
| Dimensions (L x W x H) | 177.04 x 104.14 x 26.42mm |
| [6.97” x 4.10” x 1.04”] | |
| Weight | .453kg [1lbs] |
| Mounting | Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount |
| Power Supply | 48v DC (2 Pin Euro) or PoE (LAN) |
| Power Consumption | 4 Watts |
| Operation Temperature | 0~40o C [32~104o F] |
| Storage Temperature | -20~60o C [-4~140o F] |
| Relative Humidity | 20~90% RH [No Condensation] |
| Package Contents | 1x ASP-42, 2x Mounting Ears |
About
The ASP-42 is a 4K60 4x2 HDMI 2.0 matrix with USB 3.1 capture. The USB mirrors the second output so a PC can be connected for any of the 4 inputs to be available to the PC. To further round out the product, the ASP-42 has RS-232, IR, and CEC control. Audio is important so in addition to the analog audio output, the unit has a Dante option capable of 2 or 8 channel.
The LAN port allows for IP control and serves up internal control pages. The inputs can be set for auto sense or selection can be controlled through the LAN or front buttons. Perfect for Zoom™, WebEx™, and Teams™ rooms, the ASP-42 is the ultimate all in one cost effective solution.
